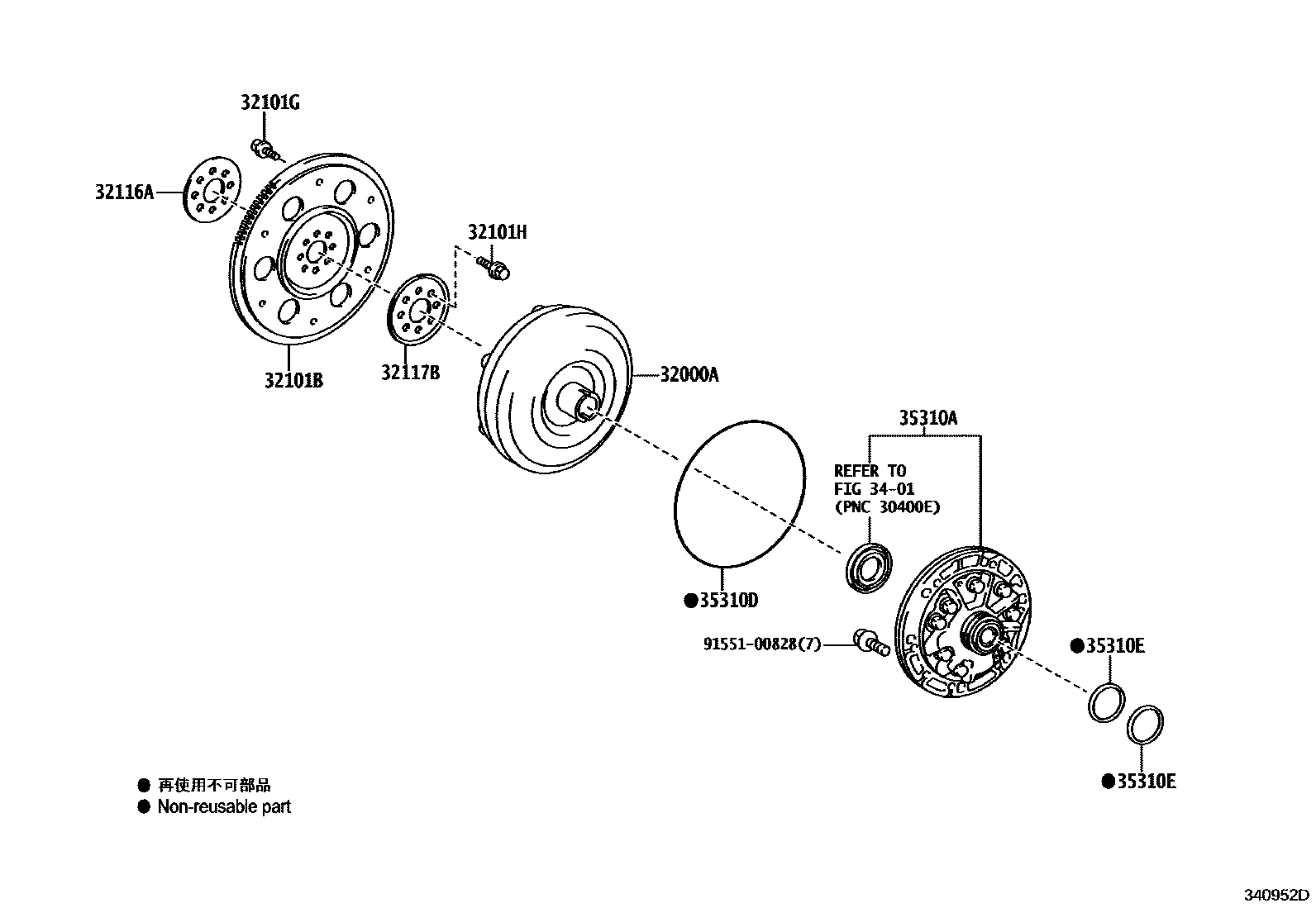

TORQUE CONVERTER, FRONT OIL PUMP(CVT)

0001 1K311,K313 0002 1K320

32000ACONVERTER ASSY, TORQUE

main32000-12400iZRE211..LHD..N;ZRE210..CVT..(G,N)..(GEN,RUS);ZRE210..LHD..CVT..D..(GCC,GEN,RUS)¥72,300201901-202503

main32000-12490iZRE210..LHD..CVT..D..EUR¥72,300201901-202301

main32000-52260iMZEA11..CVT¥81,500202011-202112

sub32000-K0010¥74,000

main32000-K0010iMZEA11..CVT..(D,G)..EUR¥74,000202112-202301

32101BGEAR SUB-ASSY, DRIVE PLATE & RING

main32101-12100iZRE210..CVT..G..EUR;ZRE210..RHD..CVT..EUR¥11,600201901-202301

main32101-52100iMZEA11..CVT..TUR;MZEA11..CVT..N..EUR¥11,600202011-202301

32101GBOLT(FOR DRIVE PLATE & TORQUE CONVERTER SETTING)

main90109-08113iZRE211..LHD..N;MZEA11,ZRE210..CVT..N..(EUR,GEN,RUS);ZRE210..LHD..CVT..(D,G)..(GCC,GEN,RUS)¥80201901-202301

*8-1.25PX12-8.4,BLACK

main90119-08498iZRE211..RHD;ZRE210..CVT..N..GCC;ZRE210..LHD..CVT..D..EUR;ZRE210..RHD..CVT..D..GEN;MZEA11,ZRE211..CVT..(D,G)..(EUR,GCC,GEN)¥80201901-202301

*8-1.25PX12-8,SILVER WHITE

32101HBOLT, HEXAGON(FOR DRIVE PLATE SETTING)

main90105-10048iZRE210..CVT..G..EUR;ZRE210..RHD..CVT..EUR¥130201901-202301

main90105-12404iMZEA11..CVT..N¥100202011-202301

32116ASPACER, DRIVE PLATE, FRONT

main32116-12030iZRE211..LHD..N;ZRE210..CVT..(G,N)..(EUR,GEN,RUS);ZRE210..LHD..CVT..D..(GCC,GEN,RUS)¥610201901-202301

32117BSPACER, DRIVE PLATE, REAR

main32117-12040iZRE210..CVT..G..EUR;ZRE210..RHD..CVT..EUR¥800201901-202301

main32117-33010iMZEA11..CVT..(D,G)..EUR¥920202011-202301

3401

35310APUMP ASSY, FRONT OIL

main35300-12020iMZEA11..CVT..(D,G)..EUR¥48,000202104-202301

main35300-52050iMZEA11..CVT¥48,000202011-202104

sub35300-12020¥48,000

main35310-12121iZRE211..G;ZRE211..RHD;ZRE210..CVT..N..GCC;ZRE210..RHD..CVT..D..GEN¥26,500201901-202301

main35310-12160iZRE210..LHD..CVT..D..EUR201901-202301

35310DRING, O (FOR FRONT OIL PUMP)

main90301-99202iZRE211..LHD..N;ZRE210..CVT..N..(EUR,GEN,RUS);ZRE210..LHD..CVT..(D,G)..(GCC,GEN,RUS)¥200201901-202301

35310ESEAL, TYPE T OIL (FOR FRONT OIL PUMP)

main35617-12031iZRE211..LHD..N;ZRE210..CVT..(G,N)..(GEN,RUS);ZRE210..LHD..CVT..D..(GCC,GEN,RUS)¥210201901-202301

main35617-12080iMZEA11..CVT..TUR;MZEA11..CVT..N..EUR¥160202104-202301

main35617-52060iZRE210..CVT..N..EUR¥210201901-202301

main35617-K0010iMZEA11..CVT¥160202011-202104

sub35617-12080¥160

9155100828

main91551-00828¥80

11 parts on this diagram · 2 diagrams in section
