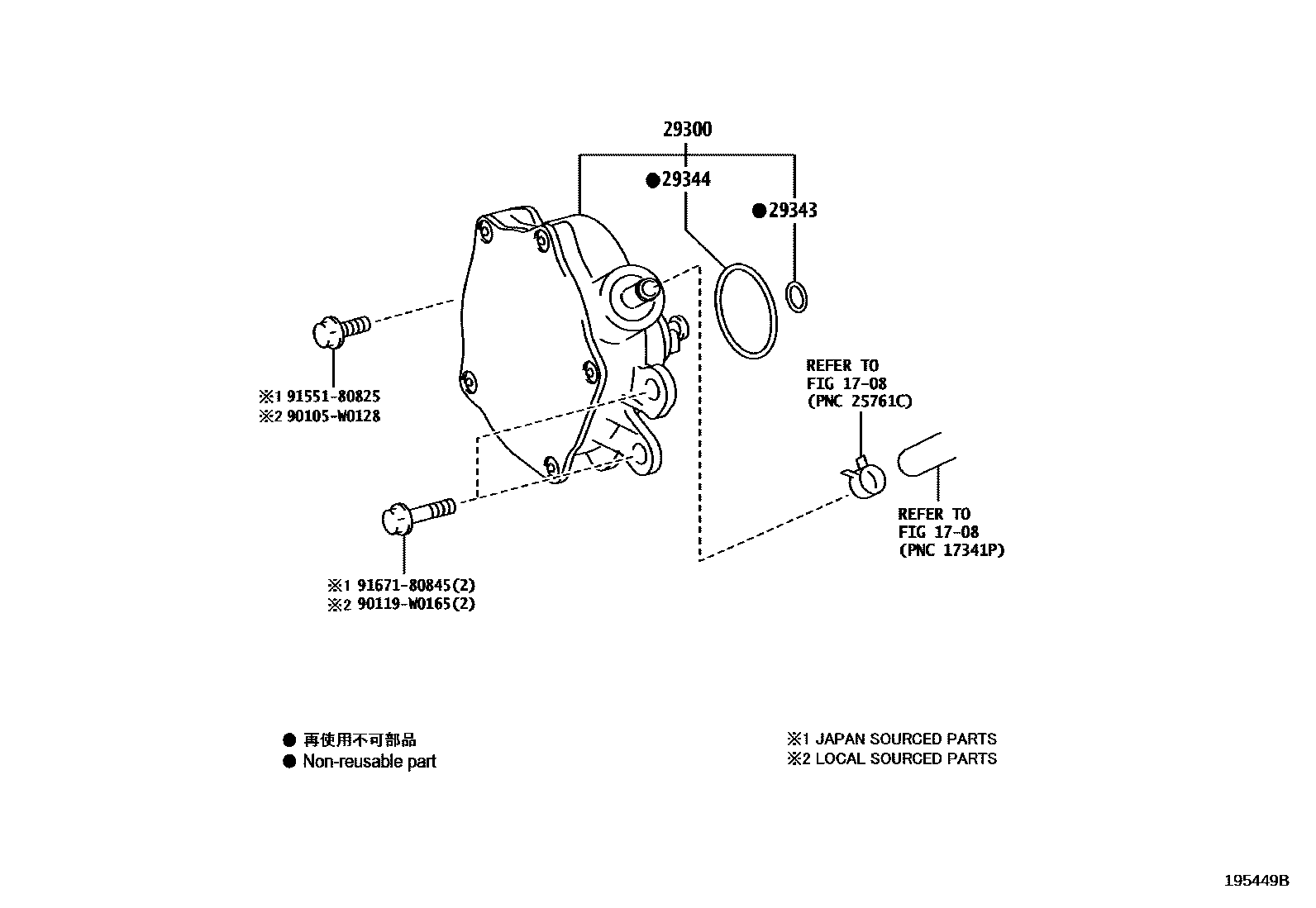

VACUUM PUMP

0001 1 0002 1

1708

29300PUMP ASSY, VACUUM

main29300-0T020i1ZRFAE..ZRE210..LHD..D201901-202301

main29300-F2030iM15AFKS..MZEA11202011-202101

sub29300-F2031

main29300-F2031iM15AFKS..MZEA11..6F..G;M15AFKS..MZEA11..RHD..6F;M15AFKS..MZEA11..CVT..(D,G)..EUR202101-202301

29343RING, O VACUUM PUMP, NO.1

main29343-0W050i1ZRFAE..ZRE210..N201901-202301

main29343-F2030iM15AFKS..MZEA11..TUR;M15AFKS..MZEA11..LHD..(D,N)..EUR202011-202301

29344RING, O VACUUM PUMP, NO.2

main29344-0W050i1ZRFAE..ZRE210..LHD..D201901-202301

90105W0128

main90105-W0128

90119W0165

main90119-W0165

9155180825

main91551-80825

9167180845

main91671-80845

8 parts on this diagram · 2 diagrams in section
