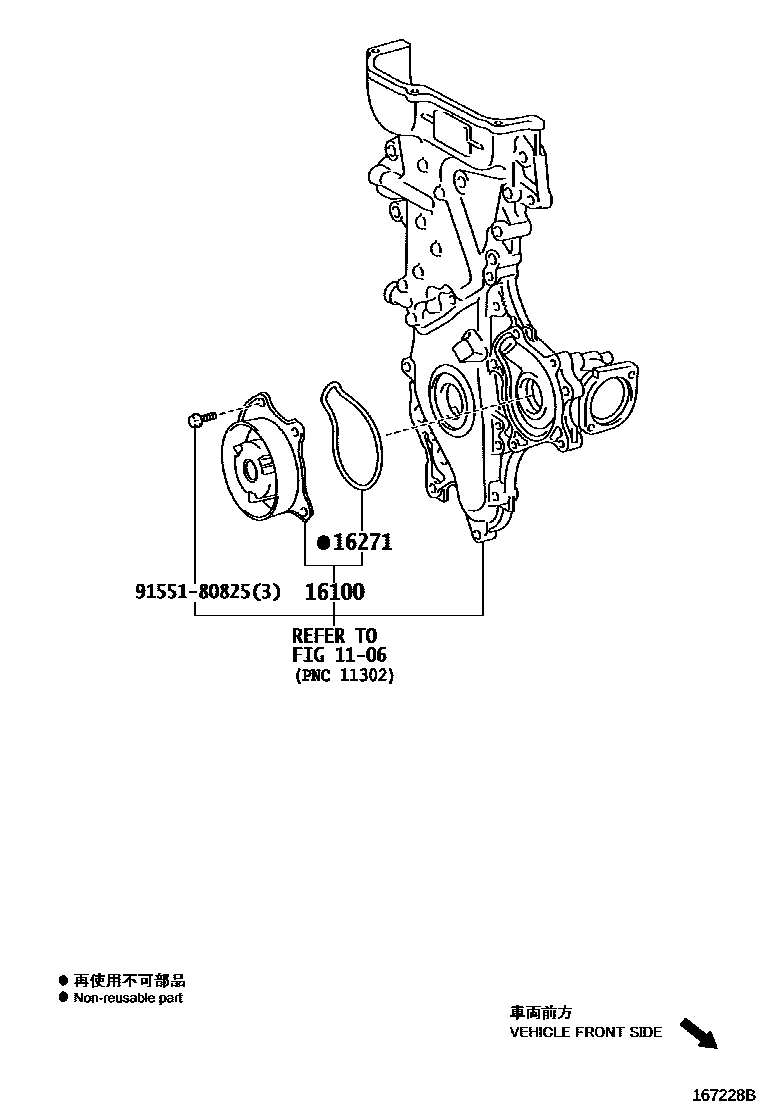

WATER PUMP

0001 1 0002 1 0003 1

1106

16100PUMP ASSY, ENGINE WATER

main16100-09501i1ZR#,2ZRFE..ZRE21#201901-202009

(L)

sub16100-09502

main16100-09502i1ZRFAE..ZRE210..G;1ZRFAE..ZRE210..RHD202009-202301

(L)

main16100-39466i2ZRFE..ZRE211..G;2ZRFE..ZRE211..RHD;1ZRFAE..ZRE210..LHD..D;1ZRFE..ZRE210..6F..N..RUS;1ZRFE..ZRE210..CVT..N..GCC;1ZRFE..ZRE210..RHD..CVT..D;1ZRFE..ZRE210..6F..(GCC,G¥10,200201901-202301

(J)

main161A0-39035i2ZRFXE..ZWE211,213¥15,000201901

main161A0-39045i2ZRFXE..ZWE219¥15,000202301

16271GASKET, WATER PUMP

main16271-37010i1ZRFE..ZRE210..D..RUS;1ZRFAE,2ZRFE..ZRE21#..LHD..N;1ZRFE..ZRE210..CVT..(G,N)..(GEN,RUS);1ZRFE..ZRE210..LHD..CVT..D..(GCC,GEN)¥480201901-202301

main16271-37020i2ZRFXE..ZWE211,213¥470201901

9155180825

main91551-80825¥80

4 parts on this diagram · 3 diagrams in section
