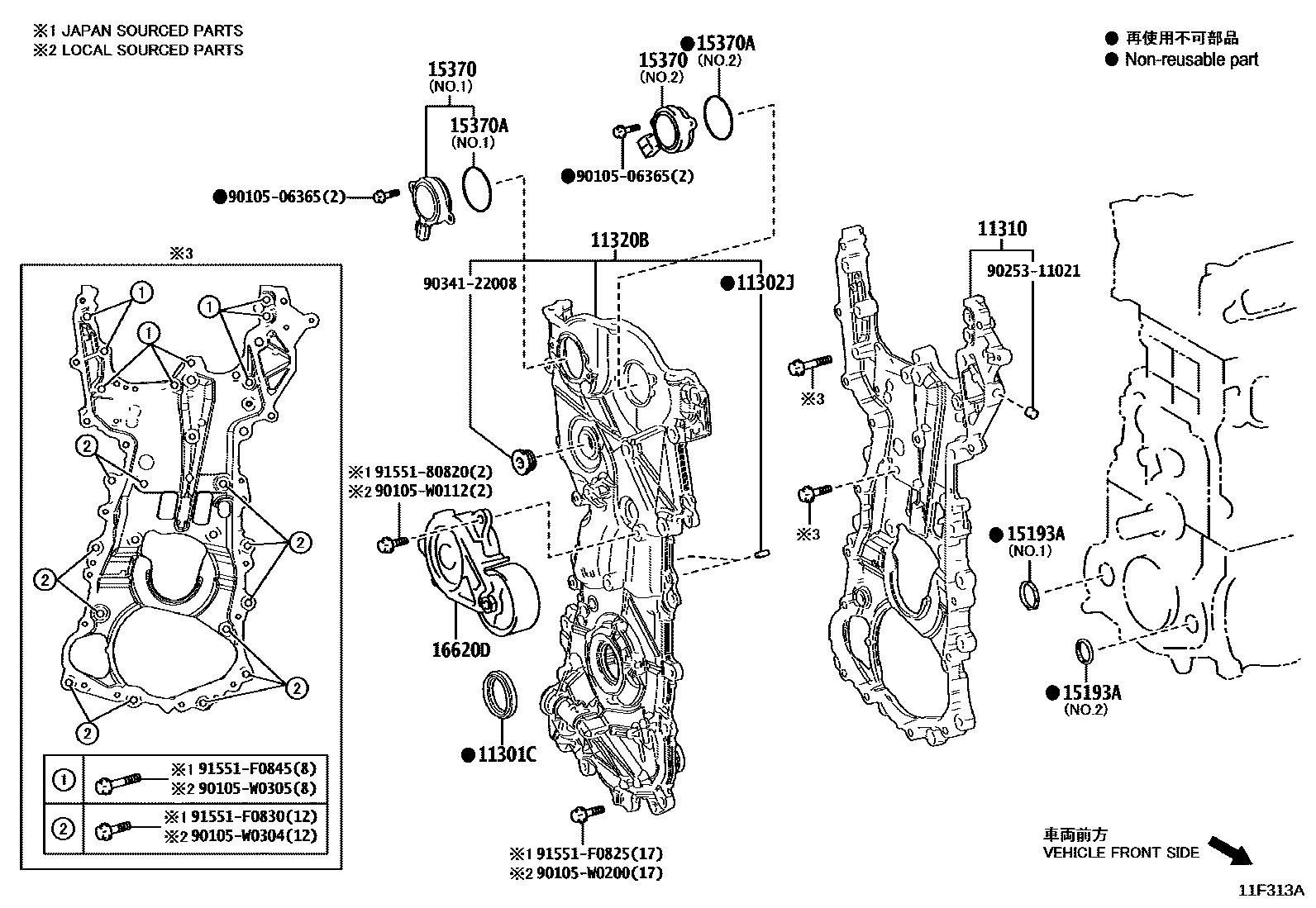

TIMING GEAR COVER & REAR END PLATE

0001 1 0002 1 0003 1 0004 1

11301CSEAL, OIL(FOR TIMING GEAR CASE OR TIMING CHAIN CASE)

main90311-W0021iM15AFKS..MZEA11..6F..G;M15AFKS..MZEA11..RHD..6F;M15AFKS..MZEA11..CVT..(D,G)..EUR202011-202301

11302COVER SUB-ASSY, TIMING CHAIN OR BELT

main11310-0T071i1ZR#,2ZRFE..ZRE21#201901-202008

(L)

main11310-0T072i2ZRFE..ZRE211..G;2ZRFE..ZRE211..RHD;1ZRFAE..ZRE210..LHD..D;1ZRFE..ZRE210..6F..N..RUS;1ZRFE..ZRE210..CVT..N..GCC;1ZRFE..ZRE210..RHD..CVT..D;1ZRFE..ZRE210..6F..(GCC,G202009-202301

(L)

main11310-0T160i2ZRFXE..ZWE219202301

(L)

main11310-0T170i2ZRFXE..ZWE211,213..EUR201901

(L)

main11310-37011i1ZRFAE..ZRE210..G;1ZRFAE..ZRE210..RHD201901-202301

(J)

main11310-37080i2ZRFXE..ZWE211,213..EUR201901

(J)

main11310-37090i2ZRFXE..ZWE211..GCC,GEN201901

main11310-37110i2ZRFXE..ZWE219202301

(J)

11302JPIN, STRAIGHT(FOR TIMING CHAIN COVER)

main90250-06003iM15AFKS..MZEA11..LHD..(D,N)202011-202301

11310COVER ASSY, TIMING CHAIN

main11310-F3010iM15AFKS..MZEA11..TUR;M15AFKS..MZEA11..LHD..(D,N)..EUR202011-202301

11320BCOVER ASSY, TIMING CHAIN, NO.2

main11320-F3011iM15AFKS..MZEA11..LHD..(D,N)202011-202301

15193AGASKET, OIL PUMP

main15193-15010iM15AFKS..MZEA11..TUR;M15AFKS..MZEA11..LHD..(D,N)..EUR202011-202301

NO.1:REFER ILLUST.

main15197-15040iM15AFKS..MZEA11..6F..G;M15AFKS..MZEA11..RHD..6F;M15AFKS..MZEA11..CVT..(D,G)..EUR202011-202301

NO.2:REFER ILLUST.

15370SOLENOID ASSY, CAM TIMING OIL CONTROL

main15370-25020iM15AFKS..MZEA11..LHD..(D,N)202011-202301

NO.1:REFER ILLUST.

main15370-36010iM15AFKS..MZEA11..6F..G;M15AFKS..MZEA11..RHD..6F;M15AFKS..MZEA11..CVT..(D,G)..EUR202011-202301

NO.2:REFER ILLUST.

15370ARING, O(FOR CAM TIMING OIL CONTROL SOLENOID)

main90301-44006iM15AFKS..MZEA11..6F..G;M15AFKS..MZEA11..RHD..6F;M15AFKS..MZEA11..CVT..(D,G)..EUR202011-202301

NO.1:REFER ILLUST.

main90301-50003iM15AFKS..MZEA11..TUR;M15AFKS..MZEA11..LHD..(D,N)..EUR202011-202301

NO.2:REFER ILLUST.

16620DTENSIONER ASSY, V-RIBBED BELT

main16620-24020iM15AFKS..MZEA11202011-202105

sub16620-24021

main16620-24021iM15AFKS..MZEA11..LHD..(D,N)202106-202301

9010506365

main90105-06365

90105W0112

main90105-W0112

90105W0200

main90105-W0200

90105W0304

main90105-W0304

90105W0305

main90105-W0305

9025311021

main90253-11021

9034122008

main90341-22008

9155180820

main91551-80820

91551F0825

main91551-F0825

91551F0830

main91551-F0830

91551F0845

main91551-F0845

20 parts on this diagram · 4 diagrams in section
