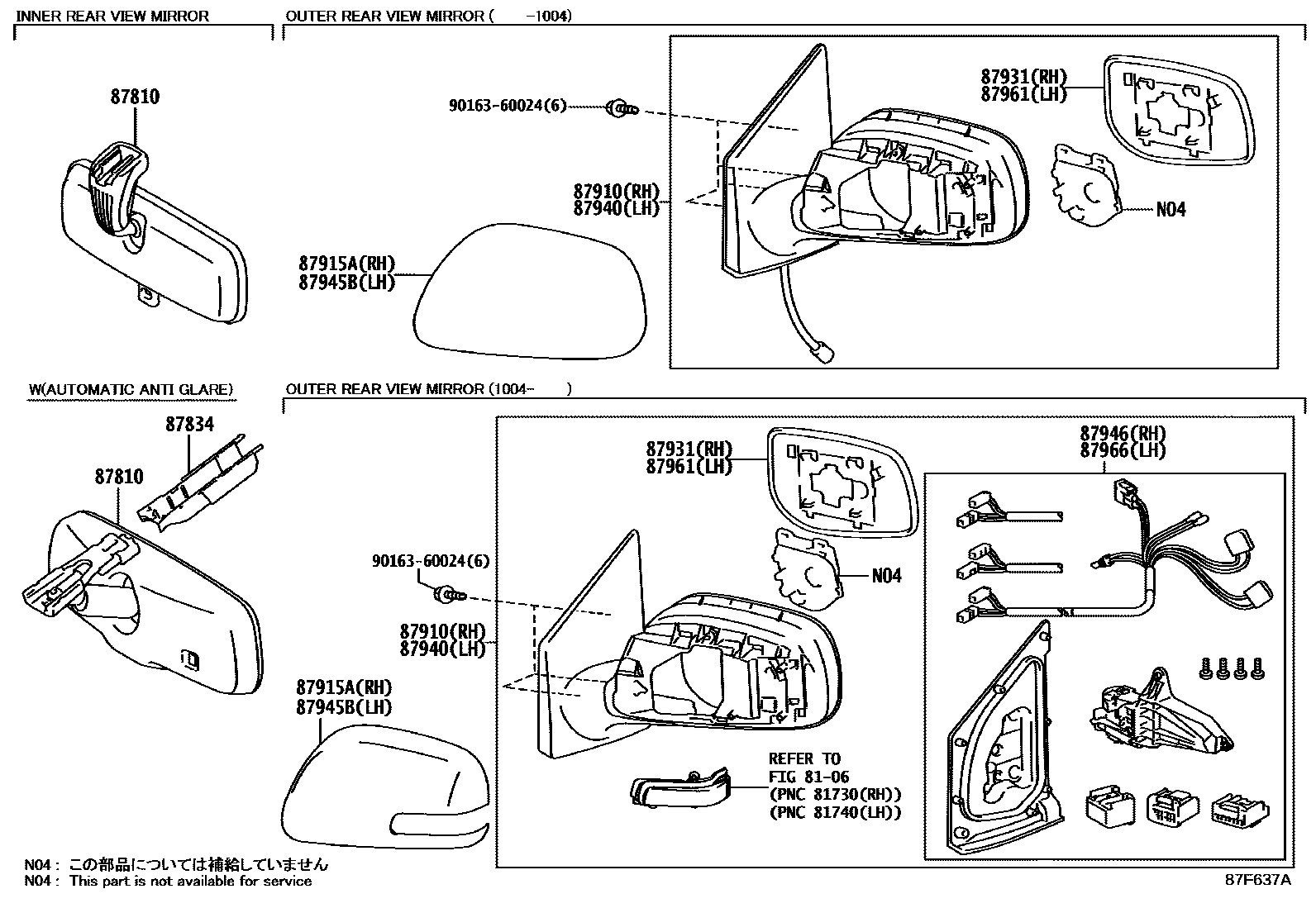

MIRROR
8106
87810MIRROR ASSY, INNER REAR VIEW
INTERMITTENT WIPER-AUTO(RAIN SENSOR)
INTERMITTENT WIPER-AUTO(RAIN SENSOR)&BACK MONITOR-WITH(IN INNER MIRROR)
INTERMITTENT WIPER-AUTO(RAIN SENSOR)
RUSSIA SPEC, W/O(EURO 4 REGULATION)&INTERMITTENT WIPER-AUTO(RAIN SENSOR)&BACK MONITOR-WITH(IN INNER MIRROR)
87834COVER, INNER REAR VIEW MIRROR STAY HOLDER
RUSSIA SPEC, W(EURO 4 REGULATION)&INTERMITTENT WIPER-AUTO(RAIN SENSOR)&BACK MONITOR-WITH(IN INNER MIRROR)
INTERMITTENT WIPER-AUTO(RAIN SENSOR)
87910MIRROR ASSY, OUTER REAR VIEW, RH
NO PAINT REQ.
NO PAINT REQ.,OUTSIDE REAR VIEW MIRROR-ELECTRIC REMOTE CONTROL(BLACK),W/HEATER
NO PAINT REQ.,OUTSIDE REAR VIEW MIRROR-ELECTRIC REMOTE CONTROL(BLACK),W/HEATER
NO PAINT REQ.,OUTSIDE REAR VIEW MIRROR-ELECTRIC REMOTE CONTROL(BLACK),W/HEATER
87915ACOVER, OUTER MIRROR, RH
SUPER WHITE 2,040
SILVER ME.,1F7
GRAY ME.,1G3
BLACK MC.,209
RED M.M.,3R3
DK.BLUE MC.,8S6
LT.BLUE M.M.,8S1
BLUE ME.,8T7
SUPER WHITE 2,040
GRAY ME.,1G3
SILVER ME.,1F7
BLACK MC.,209
SUPER RED II,3E5
LT.BLUE M.M.,8S1
DK.BLUE MC.,8S6
OUTSIDE REAR VIEW MIRROR-ELECTRIC REMOTE CONTROL(COLORED)W/HEATER,DK.BLUE ME.,8T8
OUTSIDE REAR VIEW MIRROR-ELECTRIC REMOTE CONTROL(COLORED),RED M.M.,3R3
OUTSIDE REAR VIEW MIRROR-ELECTRIC REMOTE CONTROL(BLACK),W/HEATER
87931OUTER MIRROR, RH
OUTSIDE REAR VIEW MIRROR-ELECTRIC REMOTE CONTROL(COLORED)W/HEATER
OUTSIDE REAR VIEW MIRROR-ELECTRIC REMOTE CONTROL(COLORED)W/HEATER
87940MIRROR ASSY, OUTER REAR VIEW, LH
NO PAINT REQ.
NO PAINT REQ.,OUTSIDE REAR VIEW MIRROR-ELECTRIC REMOTE CONTROL(BLACK),W/HEATER
NO PAINT REQ.,OUTSIDE REAR VIEW MIRROR-ELECTRIC REMOTE CONTROL(BLACK),W/HEATER
NO PAINT REQ.,OUTSIDE REAR VIEW MIRROR-ELECTRIC REMOTE CONTROL(BLACK),W/HEATER
87945BCOVER, OUTER MIRROR, LH
SUPER WHITE 2,040
SILVER ME.,1F7
GRAY ME.,1G3
BLACK MC.,209
RED M.M.,3R3
DK.BLUE MC.,8S6
LT.BLUE M.M.,8S1
BLUE ME.,8T7
OUTSIDE REAR VIEW MIRROR-ELECTRIC REMOTE CONTROL(COLORED)W/HEATER,SUPER WHITE 2,040
GRAY ME.,1G3
OUTSIDE REAR VIEW MIRROR-ELECTRIC REMOTE CONTROL(COLORED),SILVER ME.,1F7
BLACK MC.,209
SUPER RED II,3E5
LT.BLUE M.M.,8S1
DK.BLUE MC.,8S6
OUTSIDE REAR VIEW MIRROR-ELECTRIC REMOTE CONTROL(COLORED)W/HEATER,DK.BLUE ME.,8T8
OUTSIDE REAR VIEW MIRROR-ELECTRIC REMOTE CONTROL(COLORED),RED M.M.,3R3
OUTSIDE REAR VIEW MIRROR-ELECTRIC REMOTE CONTROL(BLACK),W/HEATER
87946RETRACTOR, OUTER MIRROR, RH
87961MIRROR OUTER, LH
OUTSIDE REAR VIEW MIRROR-ELECTRIC REMOTE CONTROL(COLORED)W/HEATER
OUTSIDE REAR VIEW MIRROR-ELECTRIC REMOTE CONTROL(COLORED)W/HEATER
87966RETRACTOR, OUTER MIRROR, LH
9016360024
main90163-60024
12 parts on this diagram · 1 diagram in section
