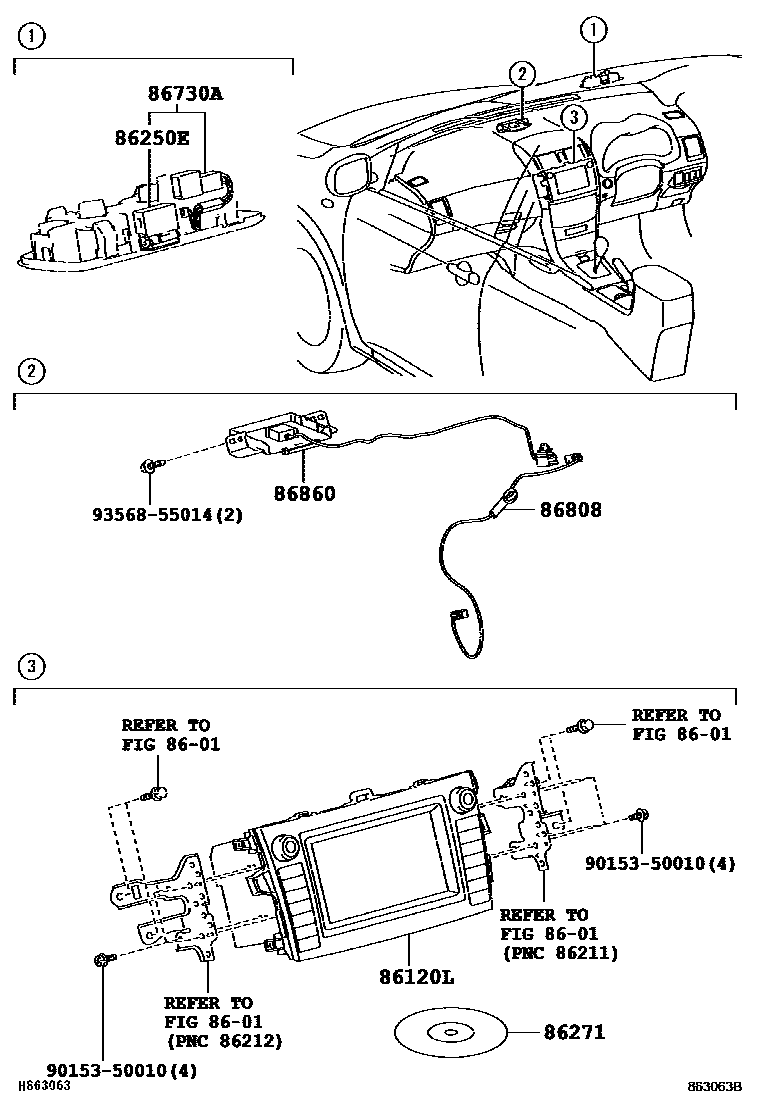

NAVIGATION & FRONT MONITOR DISPLAY

8601

86120LRECEIVER ASSY, NAVIGATION

86250EMICROPHONE ASSY, AMPLIFIER

86271DISC, DISC PLAYER

main86271-53031

main86271-24140

86730AMICROPHONE ASSY, TELEPHONE

86808CORD SUB-ASSY, NAVIGATION ANTENNA, NO.1

main86808-12060¥3,480

86860ANTENNA ASSY, NAVIGATION

main86860-12070¥37,300

9015350010

main90153-50010¥70

9356855014

main93568-55014¥70

9 parts on this diagram · 1 diagram in section
