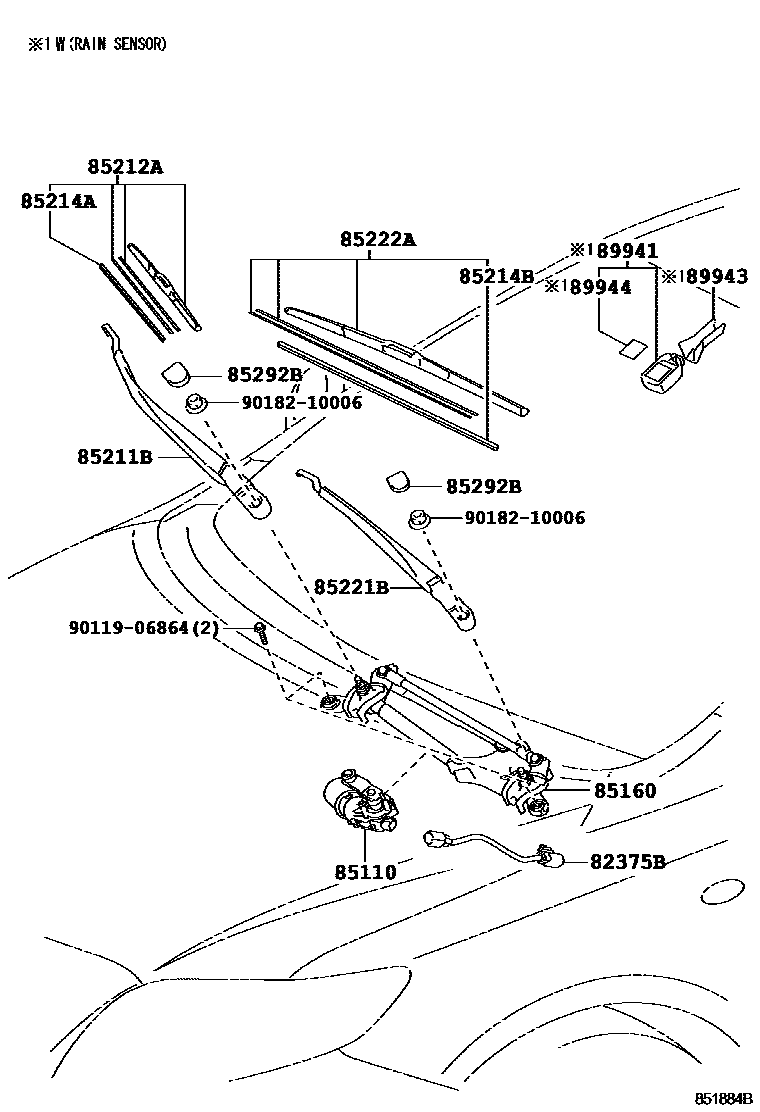

WINDSHIELD WIPER

0001 1 0002 1

82375BWIRE, WIPER MOTOR

main82375-12310iADE150..RHD200807-200901

main82375-12311iZRE151..D..HTWVM;ADE150,NDE150..DCRL;ZRE151..LHD..N..HTWVM200906-201002

85110MOTOR ASSY, WINDSHIELD WIPER

main85110-12A20iNDE150,NRE150,ZRE151201004-201304

main85110-12A30iZRE151..RHD..D;ADE150,NDE150..RHD..DCRL200812-201002

85160LINK ASSY, WINDSHIELD WIPER

main85150-12A30iNDE150,ZRE151,ZZE150..LHD200611-200812

main85150-12A40iADE150..RHD200611-200901

85211BARM, FRONT WIPER, RH

main85211-12520iNDE150,NRE150,ZRE151201004-201304

main85211-12530iZRE151..RHD..D;ADE150,NDE150..RHD..DCRL200812-201002

85212ABLADE, FR WIPER, RH

main85212-12430iNDE150,ZRE151,ZZE150..LHD200611-200812

main85212-12480iZRE151..RHD..D;ADE150,NDE150..RHD..DCRL200812-201002

85214ARUBBER, WIPER, RH

main85214-68020iNDE150,ZRE151,ZZE150..RHD200611-200812

sub85214-52110

main85214-68030iNDE150,NRE150,ZRE151..LHD..(DCR,HTWC)200812-201004

85214BRUBBER, WIPER, LH

main85214-68020iNDE150,NRE150,ZRE151201004-201304

sub85214-52110

main85214-68030iZRE151..RHD..D;ADE150,NDE150..RHD..DCRL200812-201002

85221BARM, FRONT WIPER, LH

main85221-12460iNDE150,NRE150,ZRE151201004-201304

main85221-12470iZRE151..RHD..D;ADE150,NDE150..RHD..DCRL200812-201002

85222ABLADE, FR WIPER, LH

main85222-12830iNDE150,ZRE151,ZZE150..LHD200611-200812

main85222-12860iADE150..RHD200611-200901

85292BCAP, FRONT WIPER ARM HEAD

main85292-13010×2iNDE150,ZRE151,ZZE150200611-200812

89941SENSOR, RAIN

main89941-42010iZRE151..LHD..N..HTWVM;ADE150,NDE150..N..DCRL200812-201002

INTERMITTENT WIPER-AUTO(RAIN SENSOR)

89943COVER, RAIN SENSOR

main89943-42010iNDE150,ZRE151,ZZE150..N200611-200812

INTERMITTENT WIPER-AUTO(RAIN SENSOR)

89944TAPE, RAIN SENSOR

main89944-42010iNDE150,ZRE151,ZZE150..N200611-200812

INTERMITTENT WIPER-AUTO(RAIN SENSOR)

9011906864

main90119-06864

9018210006

main90182-10006

15 parts on this diagram · 2 diagrams in section
