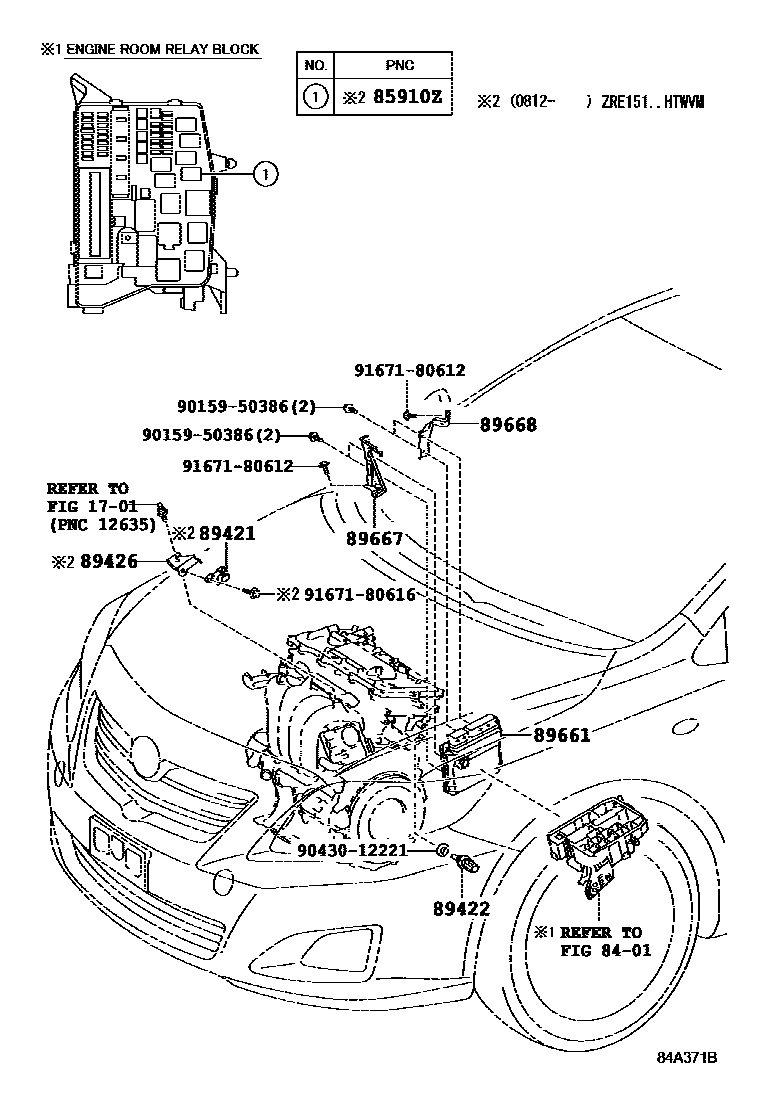

ELECTRONIC FUEL INJECTION SYSTEM

0001 1 0002 1 0003 1

1701

8401

85910ZRELAY, INJECTION (FOR EFI)

main90987-02027iZRE151..HTWVM200812-201004

89421SENSOR ASSY, VACUUM (FOR E.F.I.)

main89421-26030iNRE150200812-201304

89422SENSOR, WATER TEMPERATURE (FOR E.F.I.)

main89422-33030iZRE151..RHD..N;NRE150,ZRE151..HTWC200611-201304

main89422-35010iZZE150200611-200812

89426BRACKET, VACUUM SENSOR

main89426-28080iZRE151..HTWVM200812-201004

89661COMPUTER, ENGINE CONTROL

main89660-12D40iZZE150200611-200812

main89661-12B90iZRE151..5F200611-200612

main89661-12B91iZRE151..5F200612-200812

main89661-12C10iZRE151..5FS200611-200612

main89661-12C11iZRE151..5FS200612-200812

main89661-12G90iNRE150200812

sub89661-12G91

main89661-12J10iZRE151..6F200812-201105

sub89661-12J11

main89661-12J11iZRE151..6F201105-201304

main89661-12J30iZRE151..4FC200812-201103

sub89661-12J31

main89661-12J31iZRE151..4FC201104-201304

main89661-12J70iZRE151..6F..HTWVM200812-200908

sub89661-12J71

main89661-12J71iZRE151..6F..D..HTWVM;ZRE151..LHD..6F..N..HTWVM200909-201002

main89661-12J90iZRE151..6FS200812-200908

sub89661-12J91

main89661-12J91iZRE151..6FS200909-201002

main89661-12M50iNRE150201004-201104

sub89661-12M51

main89661-12M51iNRE150201105-201304

89667BRACKET, ENGINE CONTROL COMPUTER

main89667-12210iZRE151200611-201304

89668BRACKET, ENGINE CONTROL COMPUTER, NO.2

main89668-12120iZRE151200611-201304

9015950386

main90159-50386

9043012221

main90430-12221

9167180612

main91671-80612

9167180616

main91671-80616

13 parts on this diagram · 3 diagrams in section
