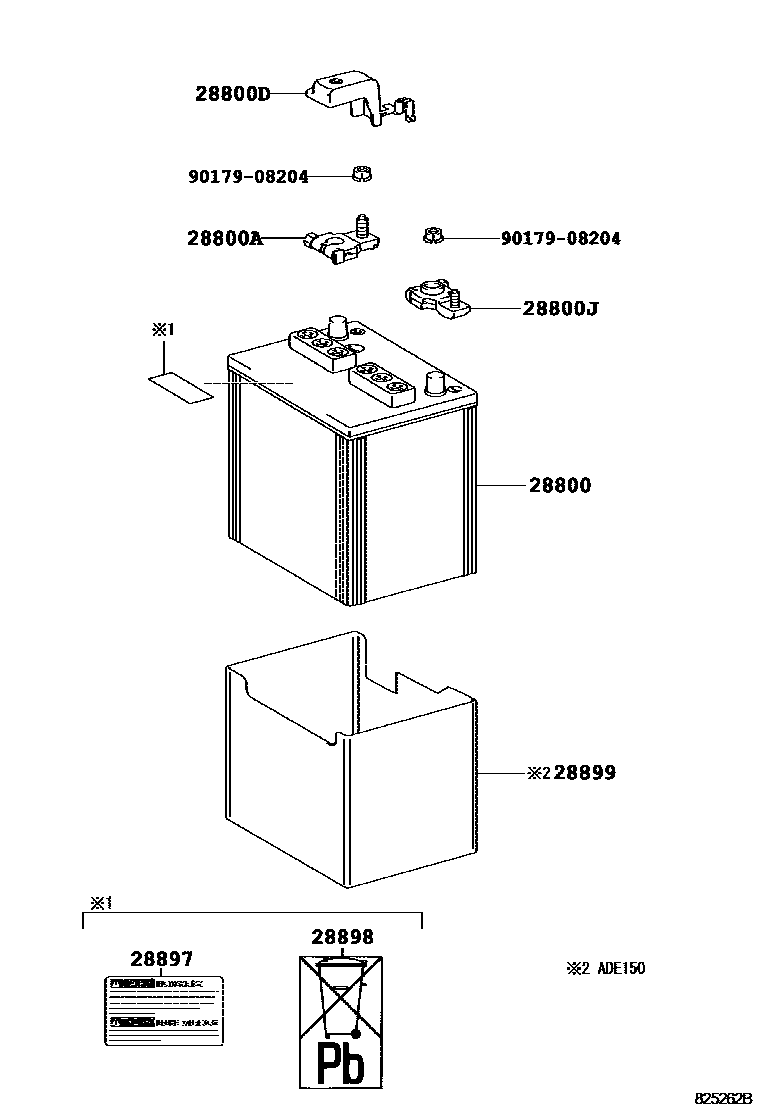

BATTERY & BATTERY CABLE

28800BATTERY

main28800-22040i1ZRFE,4ZZFE..ZRE151,ZZE150200611-200812

46B24L(S),PANASONIC

main28800-26140i1ADFTV..ADE150200611-201002

115D31L

sub28800-26902

main28800-42041i1ZRFE,4ZZFE..ZRE151,ZZE150..LHD200611-200812

55D23L,SUB COLD AREA SPEC&STARTING SYSTEM-PUSH BUTTON,YUASA

sub28800-31260

main28800-42041i1ZRFE,4ZZFE..ZRE151,ZZE150..LHD200611-200812

55D23L,STARTING SYSTEM-PUSH BUTTON,YUASA

sub28800-31260

main28800-42041i1ZRFE..ZRE151..LHD..N200611-201304

55D23L,YUASA

sub28800-31260

main28800-42041i1ZRFE..ZRE151..LHD..N200611-200812

55D23L,COLD AREA SPEC,YUASA

sub28800-31260

main28800-42041i1ZRFE..ZRE151..LHD..N200611-200812

55D23L,COLD AREA SPEC&STARTING SYSTEM-PUSH BUTTON,YUASA

sub28800-31260

main28800-42041i1ZRFE..ZRE151..LHD..N200611-200812

55D23L,SUB COLD AREA SPEC,YUASA

sub28800-31260

main28800-42041i1ZRFAE..ZRE151..D;1NDTV..NDE150..DCRL;1ZRFAE..ZRE151..LHD..N200812-201002

55D23L,PANASONIC,YUASA

sub28800-31260

main28800-42041i1N#,1ZRFE..NDE150,NRE150,ZRE151..LHD..(DCR,HTWC)200812-201004

55D23L,YUASA,PANASONIC

sub28800-31260

main28800-42061i1ZRFAE..ZRE151..D;1NDTV..NDE150..DCRL;1ZRFAE..ZRE151..LHD..N200611-201204

55D23L,FURUKAWA

sub28800-42062

main28800-42061i1NDTV..NDE150200611-200812

55D23L,COLD AREA SPEC,FURUKAWA

sub28800-42062

main28800-42061i1NDTV..NDE150200611-200812

55D23L,COLD AREA SPEC&STARTING SYSTEM-PUSH BUTTON,FURUKAWA

sub28800-42062

main28800-42061i1NDTV..NDE150200611-200812

55D23L,SUB COLD AREA SPEC,FURUKAWA

sub28800-42062

main28800-42061i1NDTV..NDE150200611-200812

55D23L,SUB COLD AREA SPEC&STARTING SYSTEM-PUSH BUTTON,FURUKAWA

sub28800-42062

main28800-42061i1NDTV..NDE150200611-200812

55D23L,STARTING SYSTEM-PUSH BUTTON,FURUKAWA

sub28800-42062

main28800-42062i1NRFE,1ZRFE..NRE150,ZRE151201205-201304

55D23L,FURUKAWA

sub28800-42063

main28800-54020i1NDTV..NDE150201106-201204

80D26L

sub28800-67102

main28800-67102i1NDTV..NDE150201205-201304

85D26L

sub28800-67103

main28800-74261i1ZRFE,4ZZFE..ZRE151,ZZE150200611-200812

46B24L(S),FURUKAWA

sub28800-20060

28800ATERMINAL, BATTERY POSITIVE

main90982-05054i1NRFE,1ZRFE..NRE150,ZRE151200611-201304

main90982-05056i1NDTV..NDE150200611-201304

28800DCOVER, CONNECTOR(FOR BATTERY TERMINAL)

main82821-12490i1ZRFAE..ZRE151..RHD..N;1NRFE,1ZRFE..NRE150,ZRE151200611-201304

main82821-52060i1ADFTV,1NDTV..ADE150,NDE150..DCRL200611-201304

28800JTERMINAL, BATTERY NEGATIVE

main90982-06070i1NDTV,1ZRFE,4ZZFE..NDE150,ZRE151,ZZE150200611-201304

28897PLATE, BATTERY CAUTION

main28897-31040

28898PLATE, BATTERY

main28898-16020i1ZRFE,4ZZFE..ZRE151,ZZE150200611-200705

main28898-46020i1NDTV..NDE150200611-201304

28899INSULATOR, BATTERY

main28899-26040i1ADFTV..ADE150200611-201002

9017908204

main90179-08204

8 parts on this diagram · 1 diagram in section
