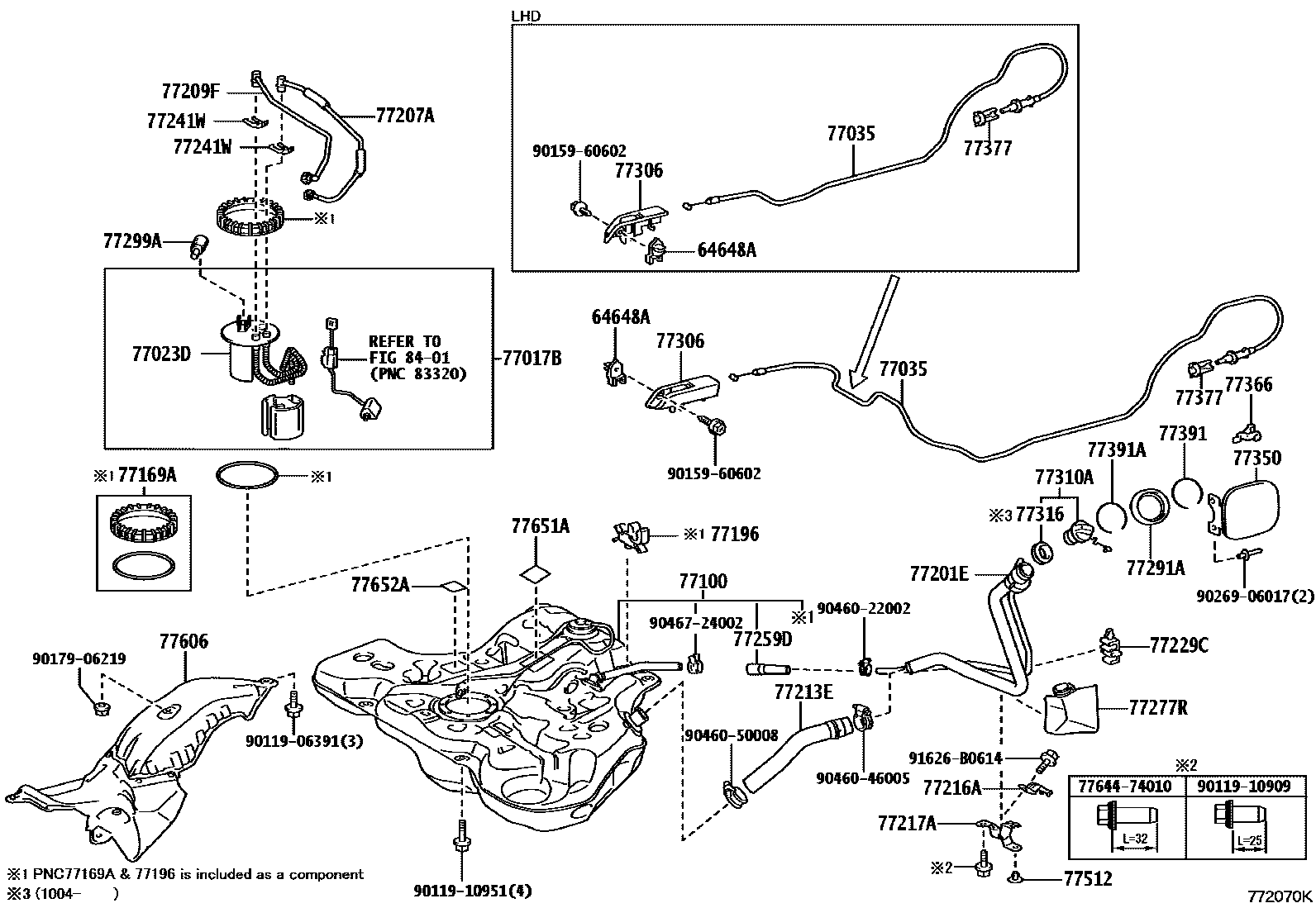

FUEL TANK & TUBE

0001 1FUEL TANK 0002 1FUEL TANK 0003 1FUEL TANK 0004 1FUEL TUBE 0005 1FUEL TUBE

64648AGROMMET, LUGGAGE DOOR LOCK OPENER

main64648-12020iNDE150;ADE150,NRE150,ZRE151..DCRL,HTWC,HTWVM¥210200611-201304

77017BTUBE SUB-ASSY, FUEL TANK VENT

main77010-12370iNDE150..RHD..DCR200611-201304

77023DFILTER SUB-ASSY, FUEL SUCTION TUBE

main77023-12060iADE150200611-201304

77035CABLE SUB-ASSY, FUEL LID LOCK CONTROL

main77035-12450iADE150..RHD200611-201002

main77035-12460iNDE150,NRE150,ZRE151200611-201304

77100TANK ASSY, FUEL

main77001-12B60iZRE151,ZZE150200611-201304

main77001-12B80iNDE150200611-201304

77169AGASKET, FUEL SUCTION TUBE SET

main77169-52040iNDE150,NRE150,ZRE151¥1,470200611-201304

77196CLAMP, EVAPORATION VENT TUBE, NO.1

main77196-12080iADE150¥520200611-201211

77201EPIPE SUB-ASSY, FUEL TANK FILLER

main77201-12680iZRE151,ZZE150200611-200709

sub77201-12790¥11,300

main77201-12690iADE150,NDE150200611-200709

sub77201-12800

main77201-12790iNRE150..RHD;ZRE151..RHD..N¥11,300200710-201302

sub77201-12791¥11,300

sub77216-12190¥350

sub77217-47080¥630

sub91626-B0614¥60

main77201-12800iNDE150200710-201304

sub77201-12801

sub77216-12190¥350

sub77217-47080¥630

sub91626-B0614¥60

main77201-12A40iNRE150,ZRE151201303-201304

77207ATUBE SUB-ASSY, FUEL RETURN

main77204-12130iNDE150200611-201304

77209FTUBE SUB-ASSY, FUEL TANK MAIN

main77209-12210iNDE150,ZRE151,ZZE150¥1,280200611-201304

77213EHOSE, FUEL TANK TO FILLER PIPE

main77213-12300iNDE150,ZRE151,ZZE150200611-201304

77216ASUPPORT, FUEL TANK FILLER PIPE, NO.1

main77216-12190iADE150,ZZE150;NDE150,ZRE151..5F,5FS¥350200611-201304

77217ASUPPORT, FUEL TANK FILLER PIPE, NO.2

main77217-47080iADE150,ZZE150;NDE150,ZRE151..5F,5FS¥630200611-201304

77229CCLAMP, BREATHER TUBE

main77229-12070iNDE150,ZRE151,ZZE150¥520200611-201304

77241WCLIP, TUBE JOINT

main77241-33011iNRE150..RHD;ZRE151..RHD..N¥80200912-201304

main77241-60320iNDE150;ADE150..DCRL¥130200611-200911

77259DHOSE, FUEL, NO.1

main77259-76010iADE150,ZZE150;NDE150,ZRE151..5F,5FS¥630200611-201304

77277RPROTECTOR, FUEL TANK FILLER PIPE

main77277-12180iZRE151..RHD..N;NDE150,NRE150..RHD..(DCR,HTWC)¥1,260200611-201304

77291ASHIELD, FUEL TANK FILLER PIPE

main77291-12170iNDE150,ZRE151,ZZE150200611-201304

77299ACLAMP, FUEL TUBE, NO.5

main77298-42010iNDE150¥620200611-201304

77306LEVER SUB-ASSY, FUEL LID LOCK OPEN

main64606-33020iNDE150..RHD..5F;ADE150,ZRE151,ZZE150..RHD..(DCR,HTWC)¥2,840200611-201004

main64606-33030iADE150,ZZE150..LHD;NDE150,ZRE151..LHD..(5F,5FS)¥3,760200611-201304

77310ACAP ASSY, FUEL TANK

main77300-20020iADE150,NDE150..DCRL¥2,200200901-201304

main77300-52030iZRE151..D..HTWVM;ZRE151..LHD..N..HTWVM¥1,560200611-201304

77316GASKET, FUEL TANK CAP

main77316-52040iNDE150,NRE150,ZRE151¥230201004-201304

77350LID ASSY, FUEL FILLER OPENING

main77350-12490iZRE151..RHD..N;NDE150,NRE150..RHD..(DCR,HTWC)200611-201304

77366SPRING, FUEL FILLER OPENING LID HINGE

main77360-30080iNDE150,ZRE151,ZZE150¥250200611-201304

77377RETAINER, FUEL FILLER OPENING LID LOCK

main77377-35010iNDE150,ZRE151,ZZE150¥240200611-201304

77391RING, FUEL INLET BOX

main77391-12020iNDE150,ZRE151,ZZE150¥180200611-201304

77391ARING, FUEL INLET BOX

main77391-53010iZRE151..RHD..N;NDE150,NRE150..RHD..(DCR,HTWC)¥300200611-201304

77512BRACKET, FUEL TANK, REAR

main77512-35140iADE150¥230200611-201304

77606PROTECTOR SUB-ASSY, FUEL TANK, NO.1

main77606-12130iNDE150,ZRE151,ZZE150¥2,760200611-201304

77651ACUSHION, FUEL TANK, NO.1

main77651-12070iNDE150,ZRE151,ZZE150¥230200611-201304

77652ACUSHION, FUEL TANK, NO.2

main77652-45020iNDE150,NRE150,ZRE151..LHD..(DCR,HTWC)¥200200611-201304

8401

7764474010BOLT, FUEL TANK

main77644-74010¥550

9011906391

main90119-06391¥100

9011910909

main90119-10909¥100

9011910951

main90119-10951¥160

9015960602

main90159-60602¥60

9017906219

main90179-06219¥70

9026906017

main90269-06017¥140

9046022002

main90460-22002¥530

9046046005

main90460-46005¥190

9046050008

main90460-50008¥240

9046724002

main90467-24002¥240

91626B0614

main91626-B0614¥60

44 parts on this diagram · 5 diagrams in section
