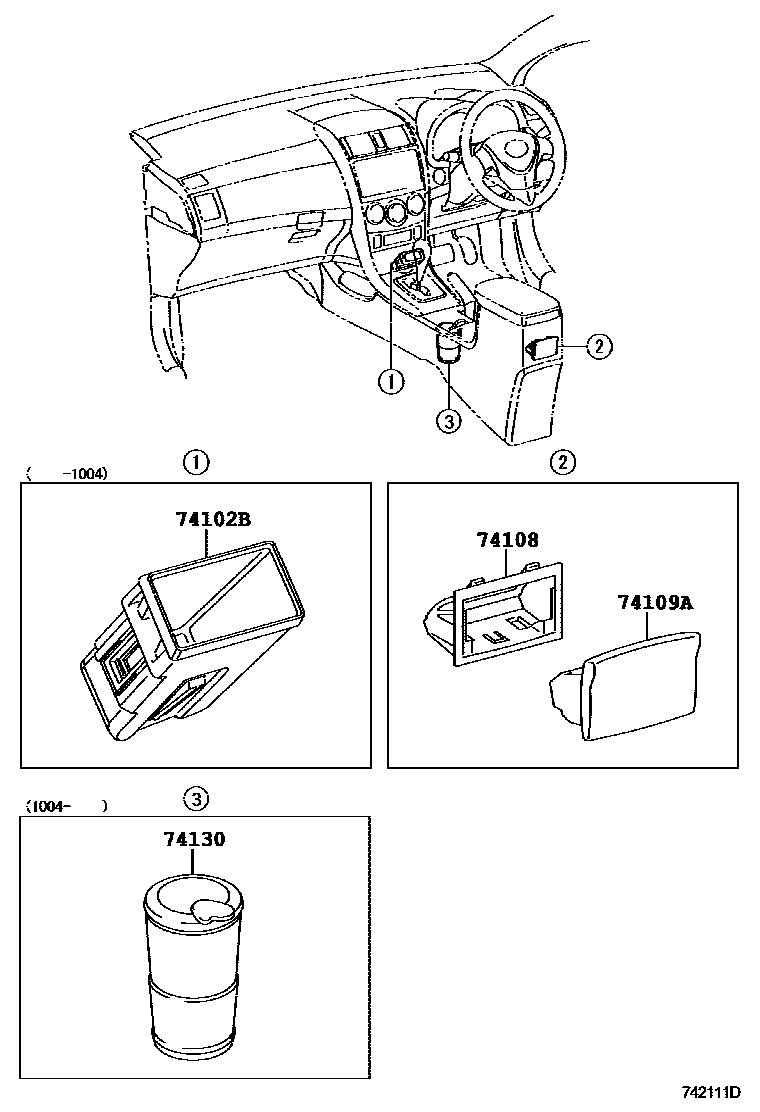

ASH RECEPTACLE

74102BBOX SUB-ASSY, FRONT ASH RECEPTACLE

main74102-12410iNDE150;ADE150,NRE150,ZRE151..DCRL,HTWC,HTWVM200611-201004

74108RETAINER SUB-ASSY, REAR ASH RECEPTACLE

main74135-20090iADE150,ZZE150;NDE150,ZRE151..5F,5FS200611-201304

74109ABOX SUB-ASSY, ASH RECEPTACLE

main74109-20100-B2iNDE150;ADE150,NRE150,ZRE151..DCRL,HTWC,HTWVM200611-201304

DK.GRAY,TRIM1#

sub74109-20100

main74109-20100-E2iNDE150..N;ADE150,NRE150,ZRE151..N..(DCRL,HTWC,HTWVM)200611-201304

GREGE,TRIM4#

sub74109-20100

74130RECEPTACLE ASSY, REAR ASH

main74110-42010iNDE150,NRE150,ZRE151201112-201304

main74130-12070iNDE150,NRE150,ZRE151201004-201009

main74130-48060iNDE150,NRE150,ZRE151201010-201112

4 parts on this diagram · 1 diagram in section
