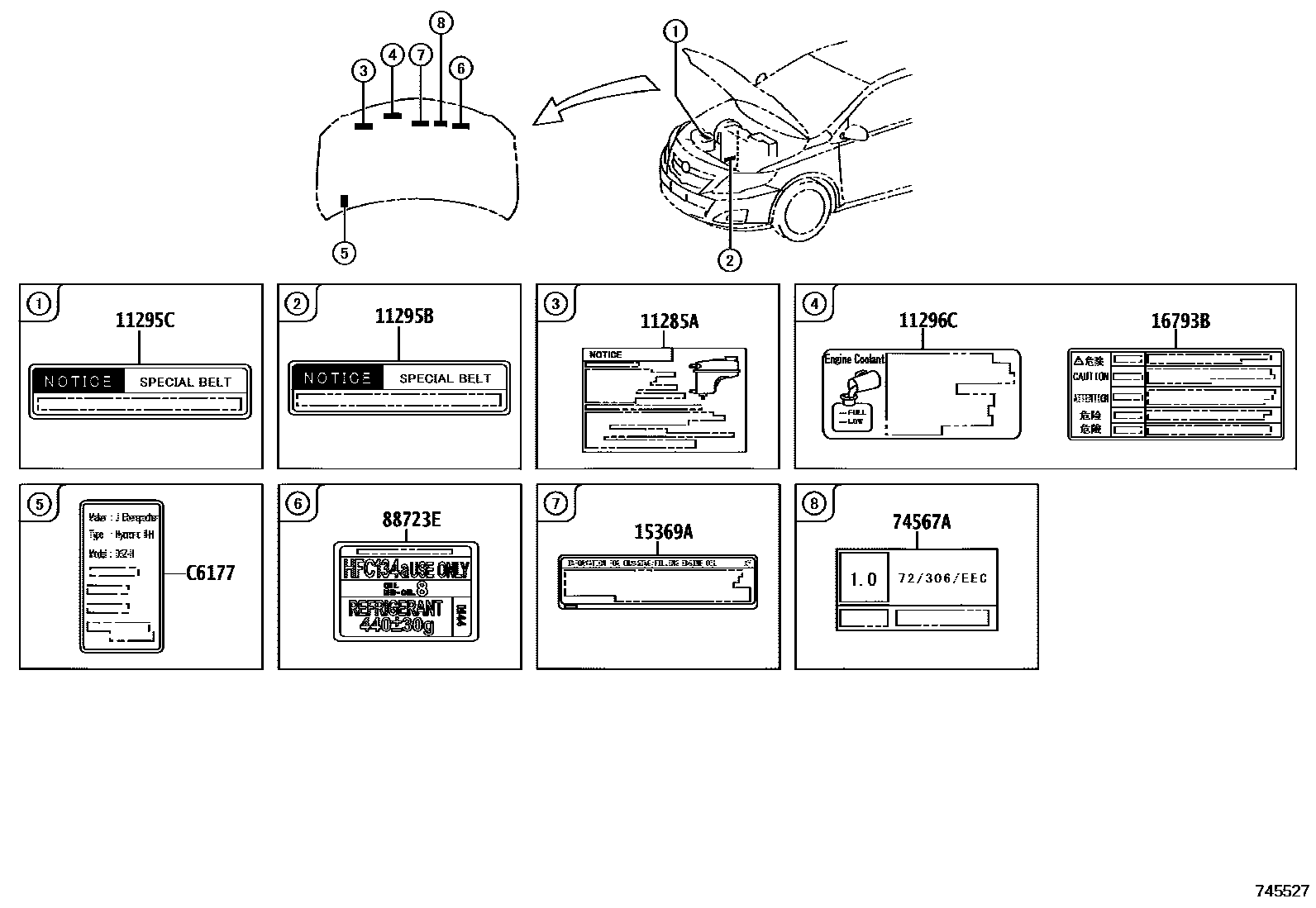

CAUTION PLATE (EXTERIOR & INTERIOR)

0001 1ENGINE ROOM 0002 1EXTERIOR & INTERIOR 0003 1EXTERIOR & INTERIOR(2/2)

11285ALABEL, COOLANT SYSTEM NOTICE

main11285-22080i1ZRFE,4ZZFE..ZRE151,ZZE150200611-200812

main11285-26010i1ADFTV,1NDTV..ADE150,NDE150200611-200808

main11285-33030i1ADFTV..ADE150..DCRL200812-201002

main11285-33040supersedes 11285-33030i1NDTV..NDE150..DCR200812

11295BLABEL, ENGINE SERVICE NOTICE, NO.1

main11295-33010i1NDTV..NDE150200812-201004

11295CLABEL, ENGINE SERVICE NOTICE, NO.2

main11295-33010i1NDTV..NDE150200812-201004

11296CLABEL, ENGINE SERVICE INFORMATION

main11296-27020i1ADFTV,1NDTV,1ZRFE,4ZZFE..ADE150,NDE150,ZRE151,ZZE150200611-200704

15369ALABEL, ENGINE OIL INFORMATION

main15369-33010i1NDTV..NDE150201110-201304

sub15369-11010

16793BLABEL, COOLING FAN INFORMATION

main16793-31040i1NRFE,1ZRFE..NRE150,ZRE151201205-201304

RUSSIA SPEC, W(EURO 4 REGULATION)

74567APLATE, E.C.E APPROVED NUMBER

main74567-20261iADE150..DCR200611-200901

main74567-25041iADE150..DCRL200611-200901

main74567-26201iNDE150200611-200812

88723ELABEL, COOLER SERVICE CAUTION

main88733-20020iNDE150,NRE150,ZRE151..D200812-201002

AIR CONDITIONER-MANUAL

C6177LABEL, HEATER NOTICE

mainC617705010iADE150,NDE150..LHD200611-200802

COLD AREA SPEC

mainC617774010iNDE150..LHD200803-200812

COLD AREA SPEC

9 parts on this diagram · 3 diagrams in section
