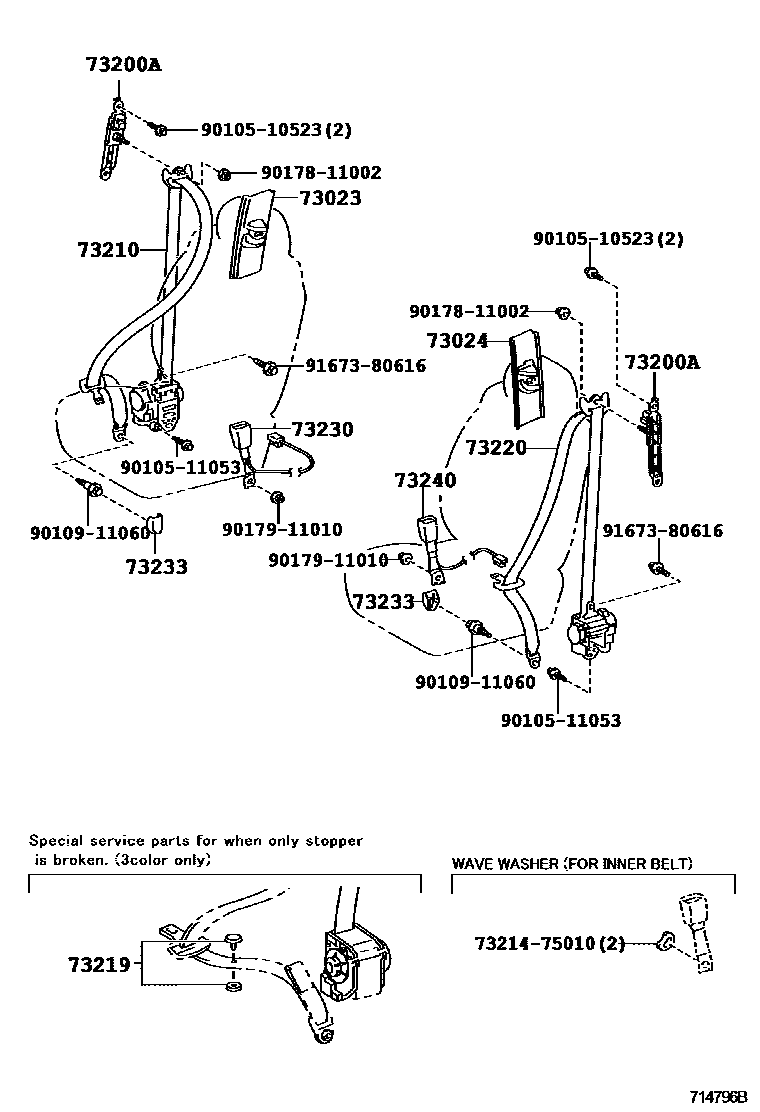

SEAT BELT & CHILD RESTRAINT SEAT

0001 1FRONT SEAT BELT 0002 1REAR SEAT BELT

73023PLATE SUB-ASSY, FRONT SHOULDER BELT ANCHOR, RH

main73023-33020-B2iADE150,ZZE150;NDE150,ZRE151..5F,5FS200611-201304

LT.GRAY,TRIM1#

sub73023-33020

main73023-33020-E0iADE150,ZZE150..N;NDE150,ZRE151..(5F,5FS)..N200611-201304

GREGE,TRIM4#

sub73023-33020

73024PLATE SUB-ASSY, FRONT SHOULDER BELT ANCHOR, LH

main73024-33020-B2iADE150,ZZE150;NDE150,ZRE151..5F,5FS200611-201304

LT.GRAY,TRIM1#

sub73024-33020

main73024-33020-E0iNDE150..N;ADE150,NRE150,ZRE151..N..(DCRL,HTWC,HTWVM)200611-201304

GREGE,TRIM4#

sub73024-33020

73200AADJUSTER ASSY, FRONT SHOULDER BELT ANCHOR

main73200-53010iZRE151..D..HTWVM;ADE150,NDE150..DCRL;ZRE151..LHD..N..HTWVM200611-201304

73210BELT ASSY, FRONT SEAT OUTER, RH

main73210-12A80-B0iNDE150;ADE150,NRE150,ZRE151..DCRL,HTWC,HTWVM200611-201004

DK.GRAY,TRIM1#

sub73210-12A81

main73210-12A80-B1iNDE150,NRE150,ZRE151201004-201204

DK.GRAY,TRIM1#

sub73210-12A81

main73210-12A80-E0iNDE150..N;ADE150,NRE150,ZRE151..N..(DCRL,HTWC,HTWVM)200611-201204

GREGE,TRIM4#

sub73210-12A81

main73210-12A81-B1iNDE150,NRE150,ZRE151201205-201301

DK.GRAY,TRIM1#

sub73210-12A82

main73210-12A81-E0iNDE150,ZRE151..N201205-201301

GREGE,TRIM4#

sub73210-12A82

main73210-12A82-B1iNDE150,NRE150,ZRE151201302-201304

DK.GRAY,TRIM1#

main73210-12A82-E0iNDE150,ZRE151..N201302-201304

GREGE,TRIM4#

73219STOPPER, TONGUE PLATE

main73219-33010iNDE150,NRE150,ZRE151201004-201304

BLACK,BLACK

main73219-33010iZRE151..D..HTWVM;ADE150,NDE150..DCRL;ZRE151..LHD..N..HTWVM200611-201002

BLACK

main73219-33020iNDE150,NRE150,ZRE151201004-201304

GRAY,GRAY

main73219-33020iNDE150,ZRE151,ZZE150200611-201002

GRAY

main73219-33030iZRE151..D..HTWVM;ADE150,NDE150..DCRL;ZRE151..LHD..N..HTWVM200611-201002

BEIGE

main73219-33030iNDE150,NRE150,ZRE151201004-201304

BEIGE,BEIGE

73220BELT ASSY, FRONT SEAT OUTER, LH

main73220-12A60-B0iNDE150,ZRE151,ZZE150200611-201004

DK.GRAY,TRIM1#

sub73220-12A61

main73220-12A60-B1iNDE150,NRE150,ZRE151201004-201204

DK.GRAY,TRIM1#

sub73220-12A61

main73220-12A60-E0iADE150200611-201204

GREGE,TRIM4#

sub73220-12A61

main73220-12A61-B1iNDE150,NRE150,ZRE151201205-201301

DK.GRAY,TRIM1#

sub73220-12A62

main73220-12A61-E0iNDE150,ZRE151..N201205-201301

GREGE,TRIM4#

sub73220-12A62

main73220-12A62-B1iNDE150,NRE150,ZRE151201302-201304

DK.GRAY,TRIM1#

main73220-12A62-E0iNDE150,ZRE151..N201302-201304

GREGE,TRIM4#

73230BELT ASSY, FRONT SEAT INNER, RH

main73230-12840-B0iADE150..RHD..DCRL;NDE150,NRE150,ZRE151..RHD200611-201004

DK.GRAY,TRIM1#

sub73230-12841

main73230-12840-E0iADE150,ZRE151,ZZE150..RHD..N..(DCR,HTWC)200611-201004

GREGE,TRIM4#

sub73230-12841

main73230-12850-B0iADE150,ZZE150..LHD;NDE150,ZRE151..LHD..(5F,5FS)200611-201204

DK.GRAY,TRIM1#

sub73230-12851

main73230-12850-E0iADE150,ZZE150..LHD..N;NDE150,ZRE151..LHD..(5F,5FS)..N200611-201204

GREGE,TRIM4#

sub73230-12851

main73230-12851-B0iNDE150,NRE150,ZRE151201205-201304

DK.GRAY,TRIM1#

main73230-12851-E0iNDE150,ZRE151..N201205-201304

GREGE,TRIM4#

73233COVER, LAP BELT OUTER ANCHOR

main73233-12050-B0iNDE150,NRE150,ZRE151200611-201304

DK.GRAY,TRIM1#

sub73233-60020

main73233-12050-E0iNDE150,ZRE151,ZZE150..N200611-201304

GREGE,TRIM4#

sub73233-60020

73240BELT ASSY, FRONT SEAT INNER, LH

main73230-12840-B0iNDE150,NRE150,ZRE151200611-201204

DK.GRAY,TRIM1#

sub73230-12841

main73230-12840-E0iNDE150,NRE150,ZRE151..N200611-201204

GREGE,TRIM4#

sub73230-12841

main73230-12841-B0iNDE150,NRE150,ZRE151201205-201304

DK.GRAY,TRIM1#

main73230-12841-E0iNDE150,ZRE151..N201205-201304

GREGE,TRIM4#

main73230-12850-B0iADE150..RHD..DCRL;NDE150,NRE150,ZRE151..RHD200611-201004

DK.GRAY,TRIM1#

sub73230-12851

main73230-12850-E0iADE150,NRE150,ZRE151..RHD..N..(DCRL,HTWC,HTWVM)200611-201004

GREGE,TRIM4#

sub73230-12851

7321475010PLATE, FRONT SEAT BELT ANCHOR

main73214-75010

9010510523

main90105-10523

9010511053

main90105-11053

9010911060

main90109-11060

9017811002

main90178-11002

9017911010

main90179-11010

9167380616

main91673-80616

16 parts on this diagram · 2 diagrams in section
