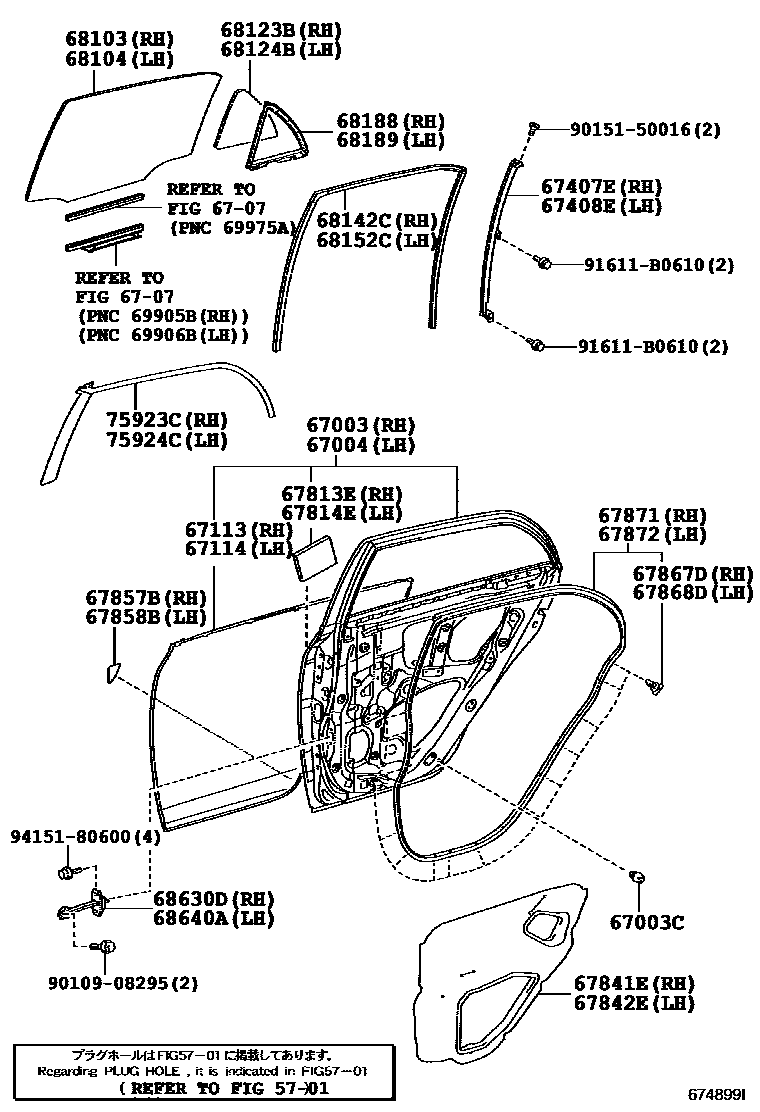

REAR DOOR PANEL & GLASS

0001 1DOOR PANEL 0002 1DOOR TRIM

5701

67003PANEL SUB-ASSY, REAR DOOR, RH

main67003-12A20iZRE151..RHD..N;NDE150,NRE150..RHD..(DCR,HTWC)200611-201304

main67003-12A21iNDE150,NRE150,ZRE151200812-200901

sub67003-12A20

67003CCUSHION, REAR DOOR PANEL

main90541-09124iADE150,NDE150,ZRE151,ZZE150200611-200806

main90541-09143iZRE151..D..HTWVM;ADE150,NDE150..DCRL;ZRE151..LHD..N..HTWVM200807-201304

67004PANEL SUB-ASSY, REAR DOOR, LH

main67004-12A20iADE150,NDE150,ZRE151,ZZE150200611-201304

main67004-12A21iADE150200812-200901

sub67004-12A20

6707

67113PANEL, REAR DOOR, OUTER RH

main67113-12310iADE150200611-201304

67114PANEL, REAR DOOR, OUTER LH

main67114-12300iNDE150,ZRE151,ZZE150200611-201304

67407EBAR SUB-ASSY, REAR DOOR WINDOW DIVISION, RH

main67407-12290iNDE150,ZRE151,ZZE150200611-201304

67408EBAR SUB-ASSY, REAR DOOR WINDOW DIVISION, LH

main67408-12290iNDE150,ZRE151,ZZE150200611-201304

67813ESHEET, QUARTER PANEL SILENCER, RH

main67817-47010iNDE150,NRE150,ZRE151..LHD..(DCR,HTWC)200611-201211

67814ESHEET, QUARTER PANEL SILENCER, LH

main67817-47010iADE150200611-201211

67841ECOVER, REAR DOOR SERVICE HOLE, RH

main67841-12360iNDE150,ZRE151,ZZE150200611-201304

67842ECOVER, REAR DOOR SERVICE HOLE, LH

main67842-12170iNDE150,ZRE151,ZZE150200611-201304

67857BPROTECTOR, REAR DOOR PANEL, RH

67858BPROTECTOR, REAR DOOR PANEL, LH

67867DRETAINER, REAR DOOR WEATHERSTRIP, RH

main67867-12150iNDE150,ZRE151,ZZE150200611-201304

67868DRETAINER, REAR DOOR WEATHERSTRIP, LH

main67867-12150iNDE150,ZRE151,ZZE150200611-201304

67871WEATHERSTRIP, REAR DOOR, RH

main67871-12530iNDE150,ZRE151,ZZE150200611-201304

67872WEATHERSTRIP, REAR DOOR, LH

main67872-12530iNDE150,ZRE151,ZZE150200611-201304

68103GLASS SUB-ASSY, REAR DOOR, RH

main68113-12770iADE150,ZZE150;NDE150,ZRE151..5F,5FS200611-201304

*UVCT,T=3.5,GREEN

68104GLASS SUB-ASSY, REAR DOOR, LH

main68114-12770iADE150,ZZE150;NDE150,ZRE151..5F,5FS200611-201304

*UVCT,T=3.5,GREEN

68123BGLASS, REAR DOOR QUARTER WINDOW, RH

main68123-12800iNDE150,ZRE151,ZZE150200611-201304

*UVCT,T=3.5,GREEN

68124BGLASS, REAR DOOR QUARTER WINDOW, LH

main68124-12800iNDE150,ZRE151,ZZE150200611-201304

*UVCT,T=3.5,GREEN

68142CRUN, REAR DOOR GLASS, RH

main68142-12290iNDE150,NRE150,ZRE151..LHD..(DCR,HTWC)200611-201304

68152CRUN, REAR DOOR GLASS, LH

main68152-12200iNDE150,ZRE151,ZZE150200611-201304

68188WEATHERSTRIP, REAR DOOR QUARTER WINDOW, RH

main68188-12330iNDE150,ZRE151,ZZE150200611-201304

68189WEATHERSTRIP, REAR DOOR QUARTER WINDOW, LH

main68189-12330iNDE150,ZRE151,ZZE150200611-201304

68630DCHECK ASSY, REAR DOOR, RH

main68630-12120iNDE150,ZRE151,ZZE150200611-201004

main68630-12121iNDE150,NRE150,ZRE151201004-201304

68640ACHECK ASSY, REAR DOOR, LH

main68630-12120iNDE150,ZRE151,ZZE150200611-201004

main68630-12121iNDE150,NRE150,ZRE151201004-201304

75923CTAPE, BLACK OUT, NO.2 RH

main75923-12060iNDE150,ZRE151,ZZE150..N200611-201304

75924CTAPE, BLACK OUT, NO.2 LH

main75924-12060iNDE150,ZRE151,ZZE150..N200611-201304

9010908295

main90109-08295

9015150016

main90151-50016

91611B0610

main91611-B0610

9415180600

main94151-80600

35 parts on this diagram · 2 diagrams in section
