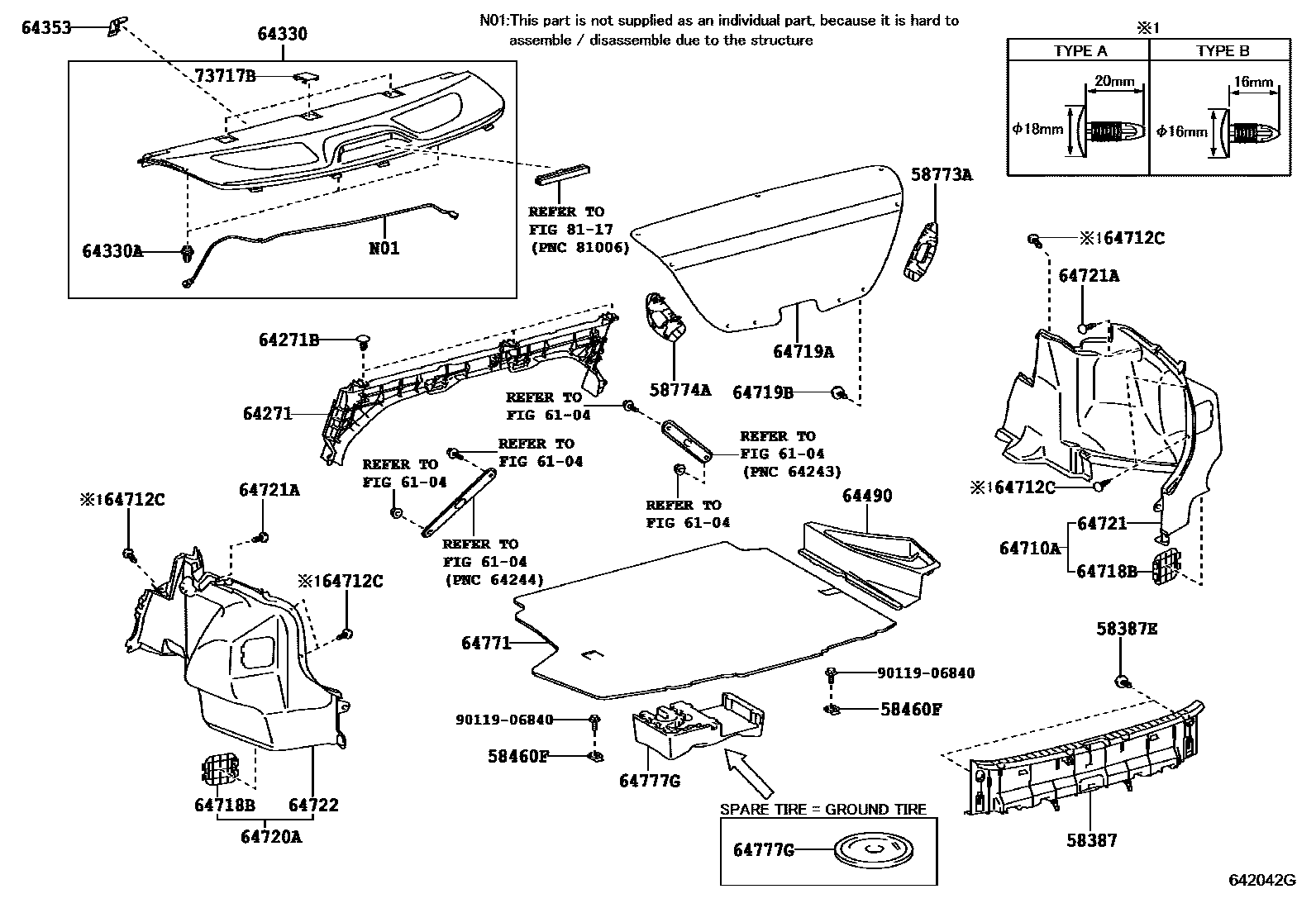

PACKAGE TRAY PANEL & LUGGAGE COMPARTMENT MAT
58387PLATE, REAR FLOOR FINISH
58387ECLIP(FOR REAR FLOOR FINISH PLATE)
58460FSTRIKER ASSY, LUGGAGE HOLD BELT
58773ACOVER, LUGGAGE COMPARTMENT SIDE, RH
58774ACOVER, LUGGAGE COMPARTMENT SIDE, LH
6104
64271BOARD, ROOM PARTITION, NO.1
64271BCLIP(FOR ROOM PARTITION BOARD)
64330PANEL ASSY, PACKAGE TRAY TRIM
DK.GRAY,TRIM1#
DK.GRAY,TRIM1#,4#
ASH BROWN,TRIM4#
64330ACLIP(FOR PACKAGE TRAY TRIM PANEL)
64353COVER, PACKAGE TRAY TRIM BELT HOLE
DK.GRAY,TRIM1#
DK.GRAY,TRIM1#,4#
ASH BROWN,TRIM4#
64490TRAY ASSY, LUGGAGE COMPARTMENT SIDE
64710ACOVER ASSY, LUGGAGE COMPARTMENT TRIM, RH
BLACK,TRIM1#
BLACK,TRIM1#,4#
64712CCLIP(FOR LUGGAGE COMPARTMENT TRIM COVER)
64718BCOVER, LUGGAGE TRIM SERVICE HOLE
64719ACOVER, LUGGAGE COMPARTMENT DOOR
BLACK,TRIM1#
BLACK,TRIM1#,4#
64719BCLIP(FOR LUGGAGE COMPARTMENT DOOR)
64720ACOVER ASSY, LUGGAGE COMPARTMENT TRIM, LH
BLACK,TRIM1#,4#
BLACK,TRIM1#
64721COVER, LUGGAGE COMPARTMENT TRIM, INNER RH
BLACK,TRIM1#,4#
BLACK,TRIM1#
64721ACLIP(FOR LUGGAGE COMPARTMENT TRIM INNER COVER)
64722COVER, LUGGAGE COMPARTMENT TRIM, INNER LH
BLACK,TRIM1#
BLACK,TRIM1#,4#
64771COVER, SPARE WHEEL
BLACK,TRIM1#
BLACK,TRIM1#,4#
64777GCUSHION, SPARE WHEEL
TIRE & DISC WHEEL-205/55R16 6.5J ALUMINUM&SPARE TIRE-TEMPORARY(T125/70D17)
TIRE & DISC WHEEL-195/65R15 6J STEEL&SPARE TIRE-TEMPORARY(T125/70D17)
TIRE & DISC WHEEL-205/55R16 6.5J STEEL&SPARE TIRE-TEMPORARY(T125/70D17)
SPARE TIRE-195/65R15 6J STEEL WHEEL
TIRE & DISC WHEEL-195/65R15 6J STEEL GENERAL COUNTRIES&SPARE TIRE-195/65R15 6J STEEL,GENERAL COUNTRIES
73717BCOVER, CHILD RESTRAINT SEAT TETHER ANCHOR
DK.GRAY,TRIM1#,4#,CENTER
DK.GRAY,TRIM1#,CENTER
ASH BROWN,TRIM4#,CENTER
DK.GRAY,TRIM1#,RH
DK.GRAY,TRIM1#,4#,RH
ASH BROWN,TRIM4#,RH
DK.GRAY,TRIM1#,LH
DK.GRAY,TRIM1#,4#,LH
ASH BROWN,TRIM4#,LH
8117
9011906840
main90119-06840
26 parts on this diagram · 1 diagram in section
