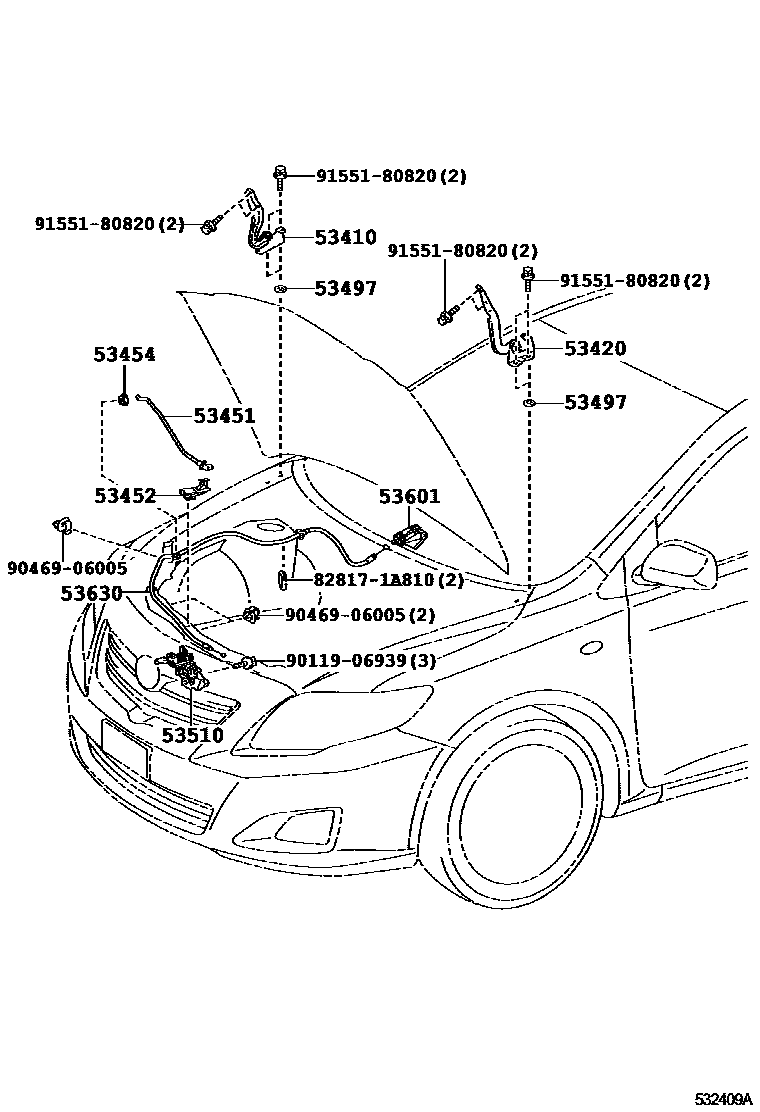

HOOD LOCK & HINGE

53410HINGE ASSY, HOOD, RH

main53410-12550iADE150200611-201304

53420HINGE ASSY, HOOD, LH

main53420-12520iADE150200611-201304

53451ROD, HOOD SUPPORT

main53440-12080iNDE150,ZRE151,ZZE150200611-201304

53452HOLDER, HOOD STAY

main53452-12070iADE150200611-201304

53454CLIP, HOOD SUPPORT ROD

main53454-12030iADE150,NDE150,ZRE151,ZZE150200611-200705

main53454-12040iNDE150,ZRE151,ZZE150200706-201304

53497PAD, HOOD HINGE, NO.1

main53497-20070iNDE150,NRE150,ZRE151201004-201304

T=2.0

main53497-42010iNDE150,ZRE151,ZZE150200611-201304

T=0.5

53510LOCK ASSY, HOOD

main53510-12890iZRE151..D..HTWVM;ADE150,NDE150..DCRL;ZRE151..LHD..N..HTWVM200611-201304

main53510-12A00iNRE150200812-201002

STOP & START SYSTEM PACKAGE

53601LEVER SUB-ASSY, HOOD LOCK CONTROL

main53601-52010-B3iADE150200611-201304

DK.GRAY,TRIM1#

sub53601-52010

main53601-52010-E4iNDE150..N;ADE150,NRE150,ZRE151..N..(DCRL,HTWC,HTWVM)200611-201304

GREGE,TRIM4#

sub53601-52010

53630CABLE ASSY, HOOD LOCK CONTROL

main53630-12570iNDE150,NRE150,ZRE151200611-201304

main53630-12580iNDE150,ZRE151,ZZE150..RHD200611-201002

828171A810PROTECTOR, WIRING HARNESS, NO.1

main82817-1A810

9011906939

main90119-06939

9046906005

main90469-06005

9155180820

main91551-80820

13 parts on this diagram · 1 diagram in section
