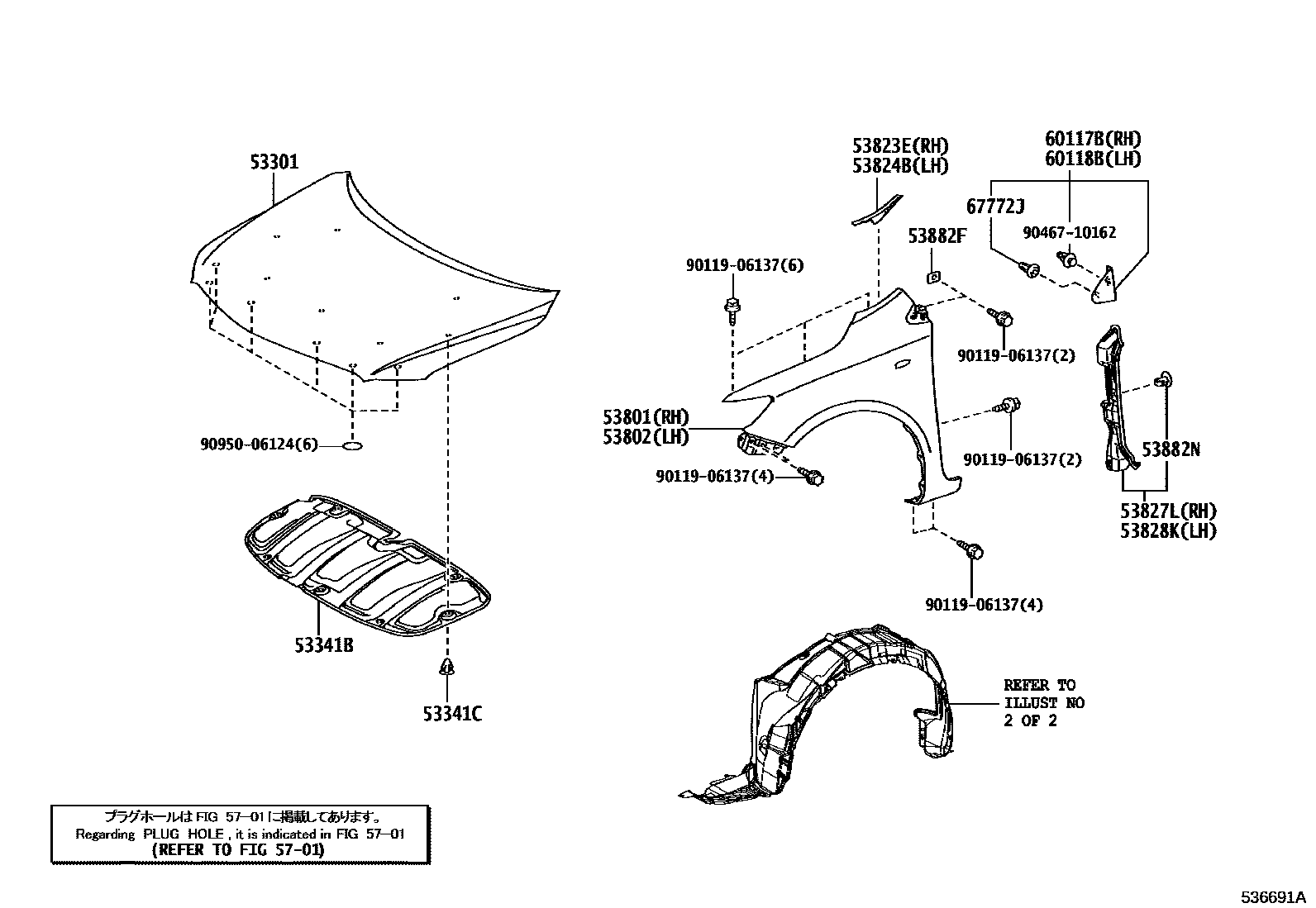

HOOD & FRONT FENDER

0001 1 0003 1FENDER LINER 0005 1 0007 1FENDER LINER

53301HOOD SUB-ASSY

main53301-12A20iNDE150,NRE150,ZRE151..LHD..(DCR,HTWC)200611-201304

53341BINSULATOR, HOOD

main53341-12260iADE150200611-201304

53341CCLIP(FOR HOOD INSULATOR)

main90467-09050iNDE150200611-201304

53801FENDER SUB-ASSY, FRONT RH

main53811-12A10iZRE151..RHD..N;NDE150,NRE150..RHD..(DCR,HTWC)200611-201004

main53811-12B60iNDE150,NRE150,ZRE151201004-201304

53802FENDER SUB-ASSY, FRONT LH

main53812-12A10iNDE150,ZRE151,ZZE150200611-201004

main53812-12B60iNDE150,NRE150,ZRE151201004-201304

53823EPROTECTOR, FRONT SIDE PANEL, NO.2 RH

main53823-12030iNDE150,ZRE151,ZZE150200611-201304

53824BPROTECTOR, FRONT SIDE PANEL, NO.2 LH

main53824-12020iNDE150,ZRE151,ZZE150200611-201304

53827LPROTECTOR, FRONT FENDER SIDE PANEL, RH

main53827-12080iNDE150,ZRE151,ZZE150200611-201304

53828KPROTECTOR, FRONT FENDER SIDE PANEL, LH

main53828-12080iZRE151..RHD..N;NDE150,NRE150..RHD..(DCR,HTWC)200611-201304

53882FSEAL, FRONT FENDER

main53882-16030iNDE150,ZRE151,ZZE150200611-201304

53882NCLIP(FOR FRONT FENDER SEAL)

main90467-11050-E1iNDE150,ZRE151,ZZE150200611-201304

SANDAL WOOD

sub90467-11050

5701

60117BCOVER SUB-ASSY, FRONT PILLAR, UPR RH

main60117-12030iNDE150,ZRE151,ZZE150200611-201304

60118BCOVER SUB-ASSY, FRONT PILLAR, UPR LH

main60118-12030iNDE150,ZRE151,ZZE150200611-201304

67772JCAP, FRONT PILLAR COVER RETAINER

main67772-95J03iNDE150,ZRE151,ZZE150200611-201304

9011906137

main90119-06137

9046710162

main90467-10162

9095006124

main90950-06124

18 parts on this diagram · 4 diagrams in section
