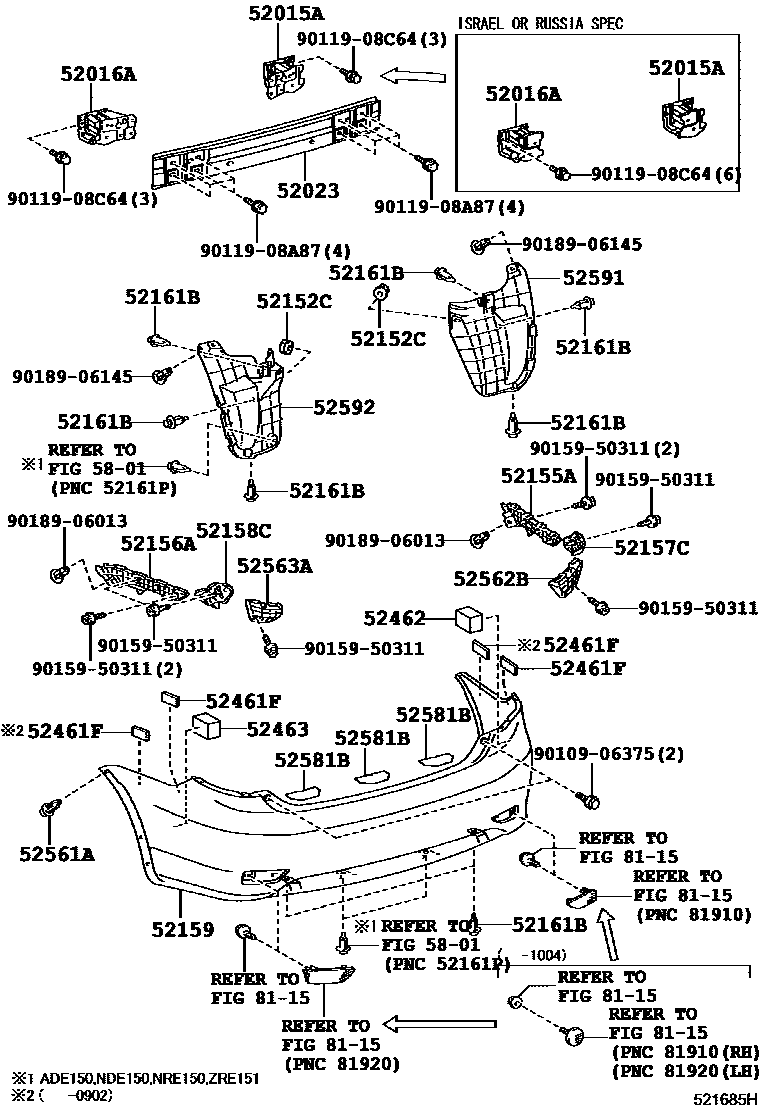

REAR BUMPER & BUMPER STAY

52015AARM SUB-ASSY, REAR BUMPER, RH

main52015-12310iADE150200611-201304

52016AARM SUB-ASSY, REAR BUMPER, LH

main52016-12280iNDE150,ZRE151,ZZE150200611-201304

52023REINFORCEMENT SUB-ASSY, REAR BUMPER

main52023-12240iADE150,NDE150,ZRE151,ZZE150200611-200805

main52171-12200iNDE150,ZRE151,ZZE150200806-201304

52152CCLIP, REAR BUMPER SIDE

main90467-06121iADE150,ZZE150;NDE150,ZRE151..5F,5FS200611-201207

main90467-06206-C0iNDE150,NRE150,ZRE151201207-201304

BLACK

52155ASUPPORT, REAR BUMPER SIDE, RH

main52155-12320iADE150,ZZE150;NDE150,ZRE151..5F,5FS200611-201304

52156ASUPPORT, REAR BUMPER SIDE, LH

main52156-12290iNDE150,ZRE151,ZZE150200611-201304

52157CSUPPORT, REAR BUMPER SIDE, NO.2 RH

main52157-12160iNDE150,ZRE151,ZZE150200611-201304

52158CSUPPORT, REAR BUMPER SIDE, NO.2 LH

main52158-12090iNDE150,ZRE151,ZZE150200611-201304

52159COVER, REAR BUMPER

main52159-12934iNDE150,ZRE151,ZZE150200611-201004

PAINT REQ.

main52159-12941iNDE150,NRE150,ZRE151201004-201304

PAINT REQ.

52161BPIECE, REAR BUMPER

main52161-16010iNDE150,NRE150,ZRE151200611-201304

sub52161-0K040

52461FPAD, REAR BUMPER

main52461-12030iNDE150;ADE150,NRE150,ZRE151..DCRL,HTWC,HTWVM200701-201304

52462PAD, REAR BUMPER, RH

main52462-12090iADE150200611-201004

main52462-12120iNDE150,NRE150,ZRE151201004-201304

52463PAD, REAR BUMPER, LH

main52462-12090iNDE150,NRE150,ZRE151..LHD..(DCR,HTWC)200611-201004

main52462-12120iNDE150,NRE150,ZRE151201004-201304

52561ACLIP(FOR REAR BUMPER RETAINER)

main90467-05090-B1iNDE150,ZRE151,ZZE150200611-201207

DK.GRAY

sub90467-05090

main90467-05170iNDE150,NRE150,ZRE151201208-201304

52562BRETAINER, REAR BUMPER, UPPER RH

main52562-12120iNDE150,NRE150,ZRE151201004-201304

main52562-12130iNDE150,NRE150,ZRE151..LHD..(DCR,HTWC)200611-201004

52563ARETAINER, REAR BUMPER, UPPER LH

main52563-12040iNDE150,ZRE151,ZZE150200611-201004

main52563-12090iNDE150,NRE150,ZRE151201004-201304

52581BPROTECTOR, REAR BUMPER

main52581-13030iNDE150,ZRE151,ZZE150200611-201304

52591SEAL, REAR BUMPER SIDE, RH

main52591-12200iNDE150,ZRE151,ZZE150200611-201304

52592SEAL, REAR BUMPER SIDE, LH

main52592-12120iNDE150,ZRE151,ZZE150200611-201304

5801

8115

9010906375

main90109-06375

9011908A87

main90119-08A87

9011908C64

main90119-08C64

9015950311

main90159-50311

9018906013

main90189-06013

9018906145

main90189-06145

27 parts on this diagram · 1 diagram in section
