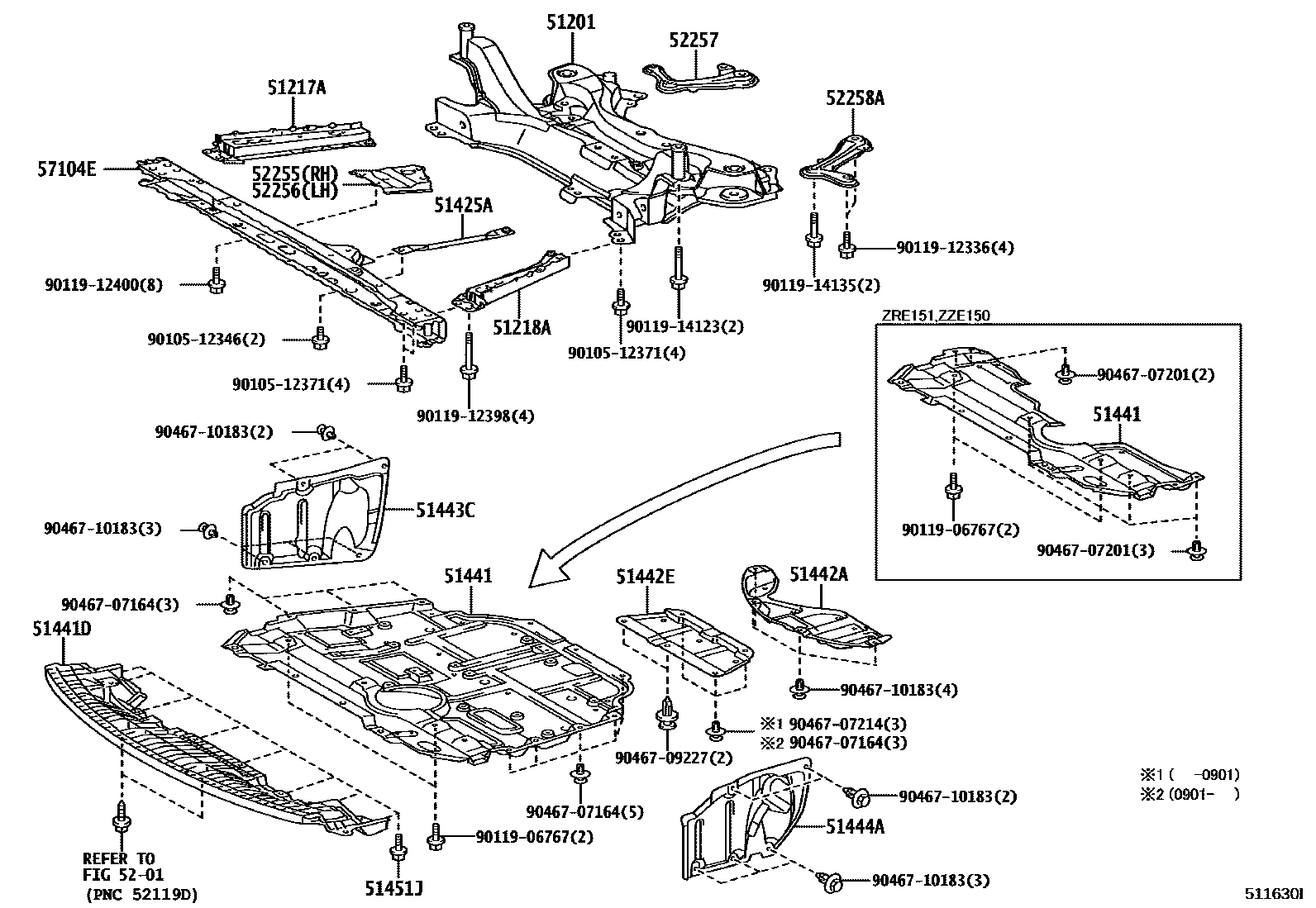

SUSPENSION CROSSMEMBER & UNDER COVER

0001 1 0003 1

51201CROSSMEMBER SUB-ASSY, FRONT SUSPENSION

main51201-12441iNDE150,ZRE151,ZZE150200611-201210

sub51201-12442

main51201-12442iNDE150,NRE150,ZRE151201211-201304

sub51201-78010

51217AREINFORCEMENT, FRONT SUSPENSION MEMBER, RH

main51107-12010iNDE150,ZRE151,ZZE150200611-201304

51218AREINFORCEMENT, FRONT SUSPENSION MEMBER, LH

main51108-12010iNDE150,ZRE151,ZZE150200611-201304

51425AREINFORCEMENT, ENGINE FRONT MOUNTING BRACKET, LOWER

main51425-12060iNDE150,ZRE151,ZZE150200611-201304

51441COVER, ENGINE UNDER, NO.1

main51410-12070iADE150200611-200901

main51410-12080iZRE151200812-200909

sub51410-12081

main51410-12081iZRE151..D..HTWVM;ZRE151..LHD..N..HTWVM200910-201008

sub51410-12082

main51410-12090iADE150200901-200909

sub51410-12091

main51410-12091iADE150200910-201002

sub51410-12092

main51441-12221iNDE150200611-200812

main51441-12270iNDE150..DCRL200611-201304

51441DCOVER, ENGINE UNDER

main52618-12020iADE150,ZZE150;NDE150,ZRE151..5F,5FS200611-201304

51442ACOVER, ENGINE UNDER, FRONT NO.3

main51442-12210iNDE150200611-201008

51442ECOVER, ENGINE UNDER, NO.2

main51442-12270iNDE150,ZRE151,ZZE150200611-201304

51443CCOVER, ENGINE UNDER, REAR RH

main51443-12080iNDE150,ZRE151,ZZE150200611-201304

51444ACOVER, ENGINE UNDER, REAR LH

main51444-12050iNDE150,ZRE151,ZZE150200611-201304

51451JBOLT, NO.1

main90119-06767iADE150,ZZE150;NDE150,ZRE151..5F,5FS200611-201304

5201

52255BRACE, FRONT SUSPENSION MEMBER, FRONT RH

main52255-12010iADE150,ZZE150;NDE150,ZRE151..5F,5FS200611-201304

52256BRACE, FRONT SUSPENSION MEMBER, FRONT LH

main52256-12010iADE150,ZZE150;NDE150,ZRE151..5F,5FS200611-201304

52257BRACE, FRONT SUSPENSION MEMBER, REAR RH

main52257-12010iADE150,NDE150,ZRE151,ZZE150200611-200803

sub52257-12011

main52257-12011iNDE150,ZRE151,ZZE150200804-201207

main52257-21040iNDE150,NRE150,ZRE151201208-201304

52258ABRACE, FRONT SUSPENSION MEMBER, REAR LH

main52258-12010iADE150,NDE150,ZRE151,ZZE150200611-200803

sub52258-12011

main52258-12011iNDE150,ZRE151,ZZE150200804-201207

main52258-21040iNDE150,NRE150,ZRE151201208-201304

57104EMEMBER SUB-ASSY, FRONT CROSS

main57104-12270iNDE150,ZRE151,ZZE150200611-201304

9010512346

main90105-12346

9010512371

main90105-12371

9011906767

main90119-06767

9011912336

main90119-12336

9011912398

main90119-12398

9011912400

main90119-12400

9011914123

main90119-14123

9011914135

main90119-14135

9046707164

main90467-07164

9046707201

main90467-07201

9046707214

main90467-07214

9046709227

main90467-09227

9046710183

main90467-10183

30 parts on this diagram · 2 diagrams in section
