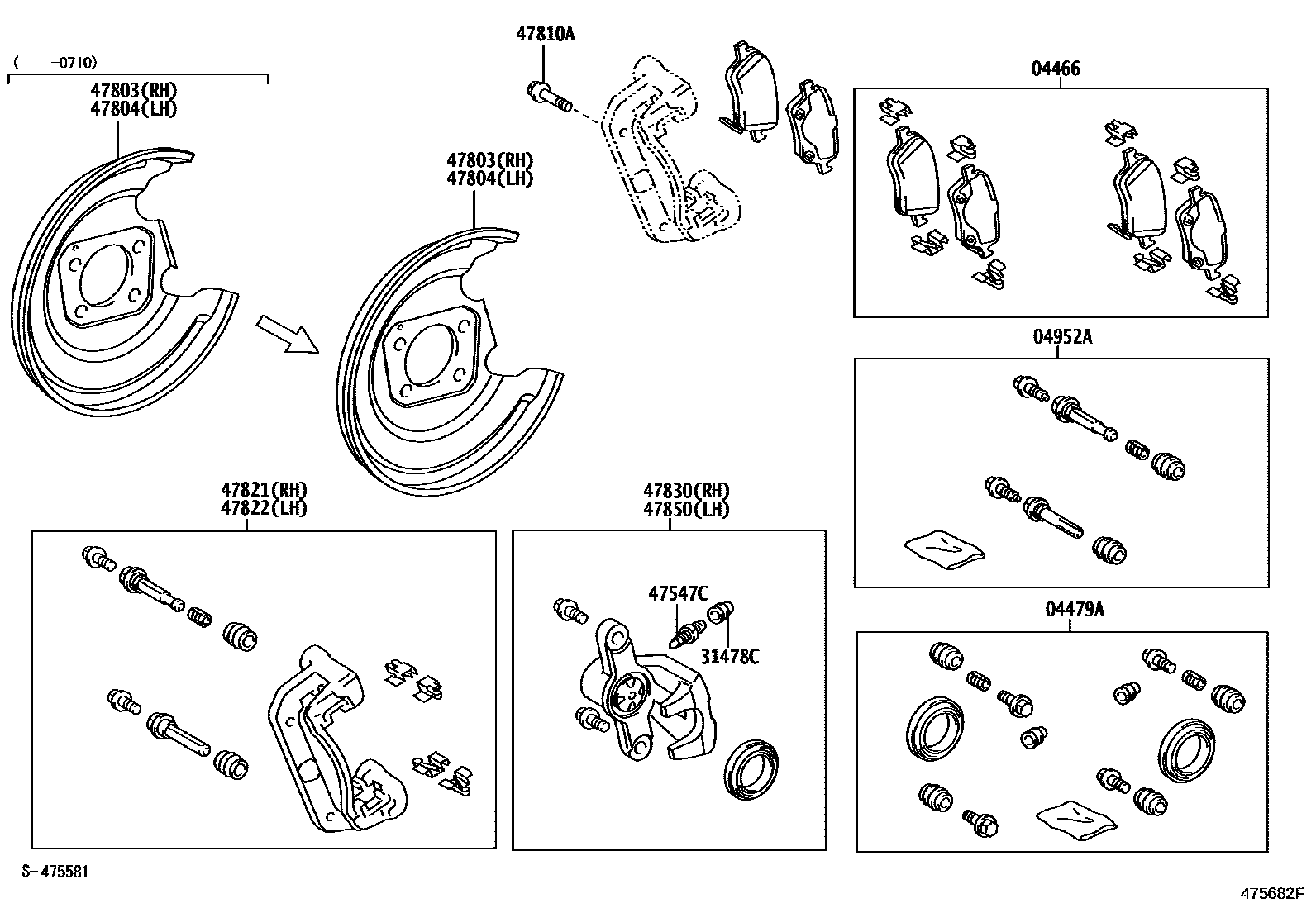

REAR DISC BRAKE CALIPER & DUST COVER

0001 1 0002 1

04466PAD KIT, DISC BRAKE, REAR

main04466-02180iNDE150200611-200905

MARK GALFER G3409

sub04466-02181

main04466-02181iNDE150..DCR200906-201304

MARK GALFER G3409

main04466-12130iZRE151,ZZE150200611-201110

MARK AK NS254

sub04466-12140

main04466-12140iNRE150,ZRE151201111-201205

MARK AK NS254

sub04466-12150

main04466-12150iNRE150,ZRE151201206-201304

MARK AK NS254

04479ACYLINDER KIT, DISC BRAKE, REAR

main04479-02310iNDE150200611-201304

main04479-12230iZRE151,ZZE150200611-201304

04952APIN KIT, REAR DISC BRAKE CYLINDER SLIDE

main04952-02220iADE150200611-201304

31478CCAP, BLEEDER PLUG(FOR REAR DISC BRAKE)

main31478-52010iNRE150,ZRE151200611-201304

main90069-39001iADE150200611-201304

47547CPLUG, BLEEDER(FOR REAR DISC BRAKE)

main47847-52050iZRE151,ZZE150200611-201304

main90069-39000iADE150200611-201304

47803COVER SUB-ASSY, DISC BRAKE DUST, REAR RH

main47881-12070iADE150,NDE150,ZRE151,ZZE150200611-200710

main47881-12071iNDE150,ZRE151,ZZE150200710-201304

47804COVER SUB-ASSY, DISC BRAKE DUST, REAR LH

main47882-12070iADE150,NDE150,ZRE151,ZZE150200611-200710

main47882-12071iNDE150,NRE150,ZRE151200710-201304

47810ABOLT, HEXAGON(FOR REAR CALIPER)

main90015-AA102iZRE151,ZZE150200611-201304

main90105-10404iADE150,NDE150..DCRL200611-201304

47821MOUNTING, REAR DISC BRAKE CYLINDER, RH

main47821-09010iADE150,NDE150200611-200703

main47821-09020iNDE150200703-201304

47822MOUNTING, REAR DISC BRAKE CYLINDER, LH

main47822-09010iADE150,NDE150200611-200703

main47822-09020iNDE150200703-201304

47830CYLINDER ASSY, DISC BRAKE, REAR RH

main47830-02100iADE150200611-201304

main47830-12151iNRE150,ZRE151200611-201304

47850CYLINDER ASSY, DISC BRAKE, REAR LH

main47850-02100iADE150200611-201304

sub47850-02101

main47850-12151iNRE150,ZRE151200611-201304

12 parts on this diagram · 2 diagrams in section
