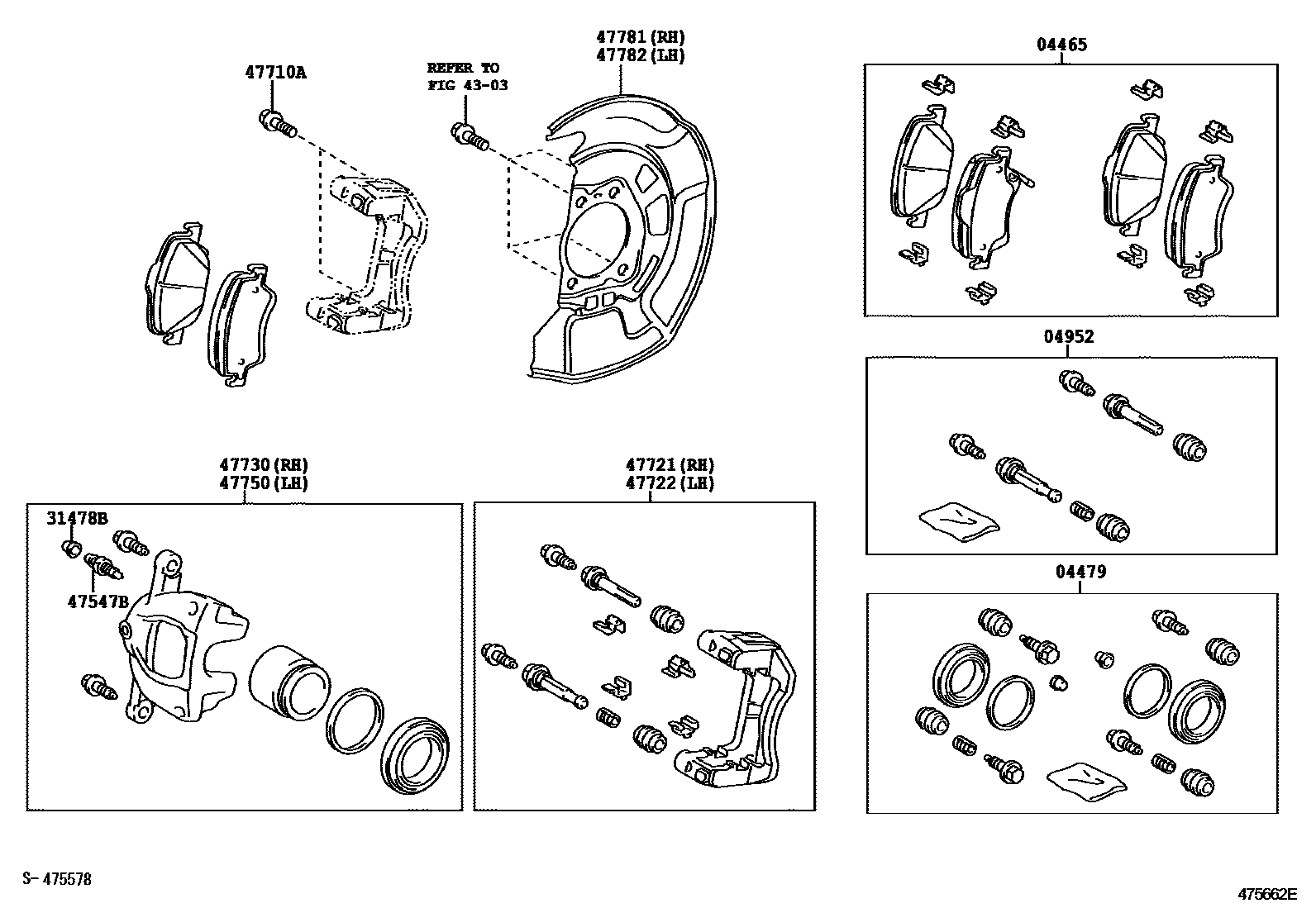

FRONT DISC BRAKE CALIPER & DUST COVER

0001 1 0002 1 0003 1

04465PAD KIT, DISC BRAKE, FRONT

main04465-02190iADE150200611-200811

MARK JURID 672

sub04465-02280

main04465-02200iNDE150200611-200802

MARK JURID 672

sub04465-02270

main04465-02210iNDE150..DCR200811-201107

MARK AK NS 341

sub04465-02370

main04465-02270iNDE150200802-200811

MARK JURID 672

sub04465-02210

main04465-02280iADE150200811-201002

MARK JURID 672

sub04465-0F010

main04465-02370iNDE150201108-201304

MARK AK NS 341

main04465-12610iZRE151..RHD..N;NRE150,ZRE151..HTWC200611-201304

MARK ADVICS PC553H

04479CYLINDER KIT, DISC BRAKE, FRONT

main04478-02160iADE150200611-201304

main04478-12060iZRE151,ZZE150200611-201304

04952PIN KIT, FRONT DISC BRAKE CYLINDER SLIDE

main04952-02220iADE150200611-201304

31478BCAP, BLEEDER PLUG(FOR FRONT DISC BRAKE)

main31478-30010iNRE150,ZRE151200611-201304

main90069-39001iNDE150..DCR200611-201304

4303

47547BPLUG, BLEEDER(FOR FRONT DISC BRAKE)

main47547-20010iZRE151,ZZE150200611-201304

main90069-39000iNDE150..DCR200611-201304

47710ABOLT, HEXAGON(FOR FRONT DISC BRAKE CALIPER)

main90105-12208iNDE150,ZRE151,ZZE150200611-201304

*12-1.25PX29.5-23

47721MOUNTING, FRONT DISC BRAKE CYLINDER, RH

main47721-09360iADE150200611-200810

main47721-09370iNDE150200611-200808

sub47721-09490

main47721-09480iADE150200811-201002

main47721-09490iNDE150200809-201304

main47721-12A10iNRE150,ZRE151200611-201304

47722MOUNTING, FRONT DISC BRAKE CYLINDER, LH

main47722-09120iADE150200611-200810

main47722-09130iNDE150200611-200808

sub47722-09190

main47722-09180iADE150200811-201002

main47722-09190iNDE150..DCR200809-201304

main47722-12A10iZRE151..D..HTWVM;ZRE151..LHD..N..HTWVM200611-201304

47730CYLINDER ASSY, FRONT DISC BRAKE, RH

main47730-02340iNDE150200611-200811

sub47730-02341

main47730-02341iNDE150..DCRL200811-201304

main47730-02360iADE150200611-200811

main47730-02361iADE150200811-201002

main47730-12A10iZRE151,ZZE150200611-201304

47750CYLINDER ASSY, DISC BRAKE, LH

main47750-02340iNDE150200611-200811

sub47750-02341

main47750-02341iNDE150..DCR200811-201304

main47750-02360iADE150200611-200811

main47750-02361iADE150200811-201002

main47750-12A10iZRE151..RHD..N;NRE150,ZRE151..HTWC200611-201304

47781COVER, DISC BRAKE DUST, FRONT RH

main47781-12250iNDE150,NRE150,ZRE151200611-201304

main47781-42040iADE150200611-201002

47782COVER, DISC BRAKE DUST, FRONT LH

main47782-12250iNDE150,NRE150,ZRE151200611-201304

main47782-42040iADE150200611-201002

13 parts on this diagram · 3 diagrams in section
