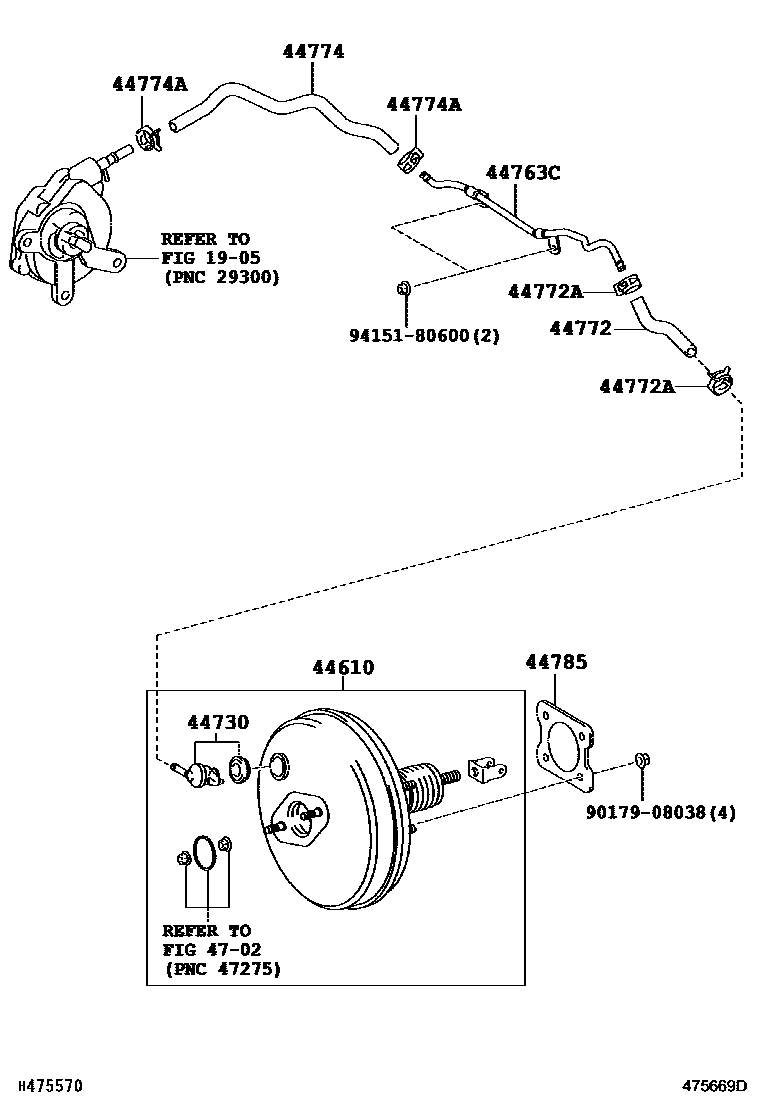

BRAKE BOOSTER & VACUUM TUBE

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1 0008 1 0009 1 0010 1 0011 1 0012 1 0013 1 0014 1

1905

44610BOOSTER ASSY, BRAKE

main44610-12C10iZRE151,ZZE150..LHD200611-200802

sub44610-12C11

main44610-12C11iZRE151,ZZE150..LHD200803-201004

main44610-12D50iZRE151,ZZE150..RHD200611-200803

sub44610-12D51

main44610-12D51iZRE151,ZZE150..RHD200803-201004

main44610-12F31iZRE151..RHD200812-201004

main44610-12F81iZRE151..LHD..HTWVM200812-201002

main44610-12G50iNRE150,ZRE151201004-201304

main44610-19015iNDE150..LHD;ADE150..LHD..DCRL200611-201004

main44610-19025iNDE150..6FS201106-201304

sub44610-19026

main44610-19045iNDE150..RHD;ADE150..RHD..DCRL200611-201004

sub44610-09721

main44610-19065iNDE150..6FS201004-201304

44730VALVE ASSY, VACUUM CHECK(FOR BRAKE)

main44730-09020iADE150;NDE150..5F,5FS¥1,430200611-201304

main44730-12070iNRE150,ZRE151..RHD¥1,720200611-201004

main44730-14050iZRE151,ZZE150..LHD¥1,380200611-201304

44763CTUBE, HOSE TO HOSE, NO.2

main44763-12400iNDE150,NRE150,ZRE151200611-201304

main44763-12420iZZE150..RHD¥1,460200611-200812

main44763-12430iZZE150..LHD200611-200812

main44763-12440iZRE151..RHD¥1,200200611-201004

main44763-12450iNDE150..RHD200611-201004

main44763-12470iNDE150..LHD200611-200812

44772HOSE, CHECK VALVE TO CONNECTOR TUBE

main44772-12510iZRE151,ZZE150..LHD200611-201304

main44772-12580iNDE150200611-201304

main44772-12600iZRE151,ZZE150..RHD¥850200611-201004

main44772-12610iNDE150..RHD200611-200812

main44772-12620iNDE150..RHD¥850200812-201004

main44772-12640iADE150..RHD200611-201002

main44772-12680iNRE150..RHD200812-201004

sub44772-12681

44772ACLIP(FOR CHECK VALVE TO CONNECTOR TUBE)

main90467-16014iNRE150..RHD¥230200812-201004

main96133-41500iADE150¥140200611-201304

44774HOSE, UNION TO CONNECTOR TUBE

main44774-12530iZRE151..LHD200611-201304

sub44774-02410

main44774-12540iNDE150..LHD200611-200812

main44774-12560iZRE151..RHD¥1,130200611-201004

main44774-12570iNDE150..RHD200611-200812

main44774-12580iADE150..LHD200611-201002

sub44774-64050

main44774-12590iZZE150..RHD200611-200812

main44774-12630iZZE150..LHD200611-200812

main44774-12740iNRE150..LHD200812-201304

sub44774-02440

main44774-12750iNDE150..LHD200812-201003

sub44774-12751

main44774-12751iNDE150201004-201304

main44774-12760iNDE150..RHD200812-201003

sub44774-12761

44774ACLIP(FOR UNION TO CONNECTOR TUBE HOSE)

main96133-41500iZRE151¥140200611-201304

44785GASKET, BRAKE BOOSTER

main44785-12040iNDE150,ZRE151,ZZE150¥200200611-201304

4702

9017908038

main90179-08038¥130

9415180600

main94151-80600¥60

12 parts on this diagram · 14 diagrams in section
