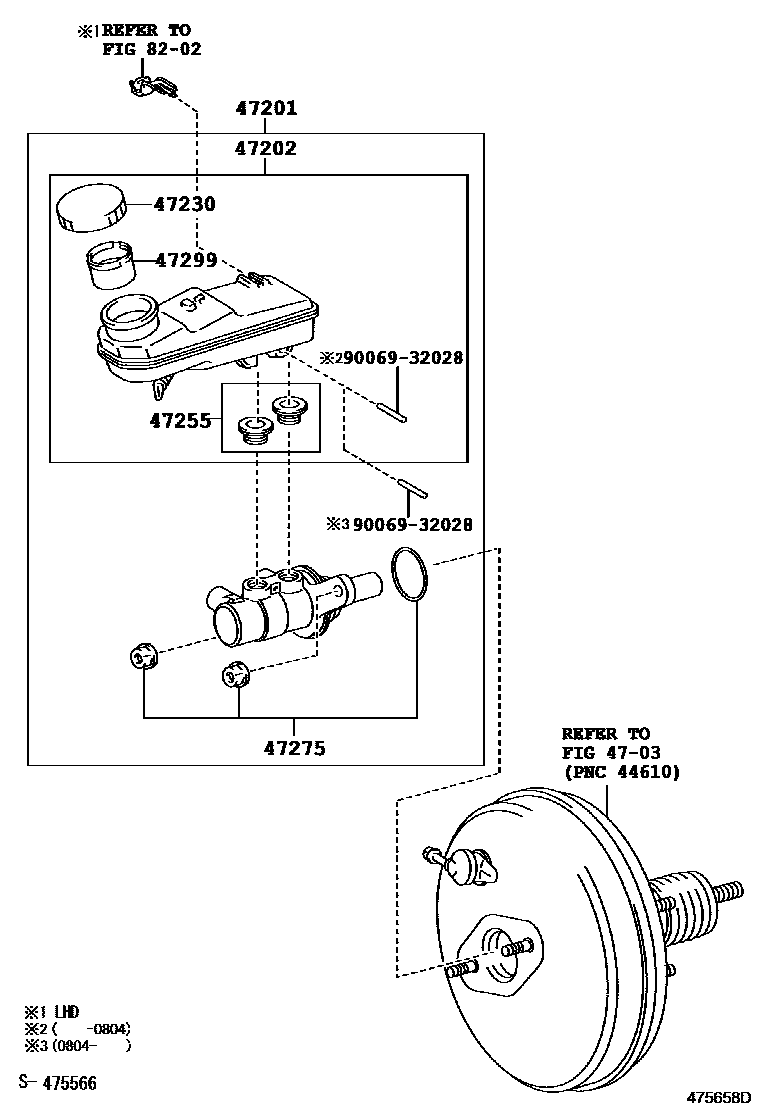

BRAKE MASTER CYLINDER

0001 1 0002 1

4703

47201CYLINDER SUB-ASSY, BRAKE MASTER

main47201-12A00iZRE151,ZZE150..RHD200611-201004

main47201-12A70iNRE150,ZRE151200611-201304

main47201-19015iADE150,NDE150..LHD200611-200804

sub47201-19065

main47201-19045iADE150,NDE150..RHD200611-200804

sub47201-19085

main47201-19055iNDE150..6FS201106-201304

main47201-19065iADE150..LHD;NDE150..LHD..(5F,5FS)200804-201304

main47201-19085iNDE150..RHD;ADE150..RHD..DCRL200804-201004

47202RESERVOIR SUB-ASSY, BRAKE MASTER CYLINDER

main47220-09090iNDE150..LHD;ADE150..LHD..DCRL200611-201304

main47220-09100iADE150..RHD;NDE150..RHD..5F200611-201004

main47220-12190iNRE150,ZRE151..RHD200611-201004

main47220-12200iNRE150,ZRE151..LHD200611-201304

47230CAP ASSY, BRAKE MASTER CYLINDER RESERVOIR FILLER

main47230-0D010iNDE150200611-201304

main47230-20140iZRE151,ZZE150200611-201304

47255GROMMET, MASTER CYLINDER RESERVOIR

main47255-09040iNDE150..DCR200611-201304

main90029-48001iZRE151..RHD..N;NRE150,ZRE151..HTWC200611-201304

sub90016-AT001

47275GASKET, BRAKE MASTER CYLINDER

main47275-09010iADE150;NDE150..5F,5FS200611-201304

47299STRAINER, BRAKE MASTER CYLINDER RESERVOIR

main47299-02160iNDE150..DCR200611-201304

main47299-20060iNRE150,ZRE151200611-201304

8202

9006932028

main90069-32028

9 parts on this diagram · 2 diagrams in section
