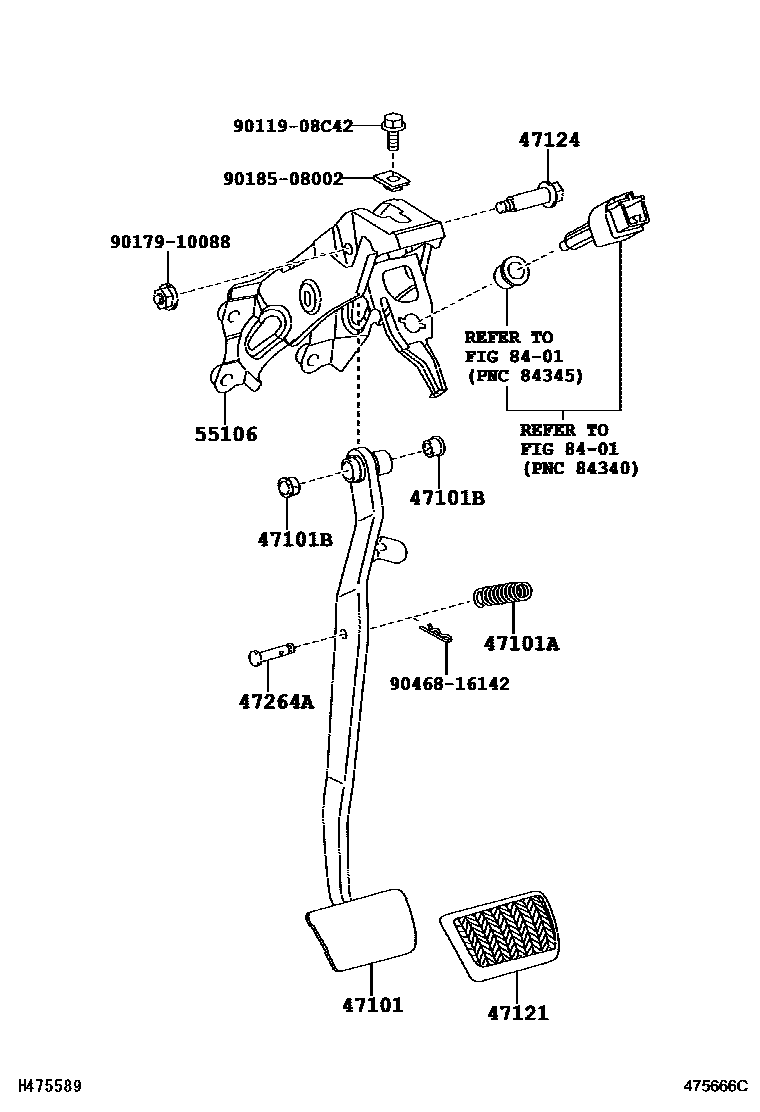

BRAKE PEDAL & BRACKET

47101PEDAL SUB-ASSY, BRAKE

main47101-12630iADE150,NDE150,ZRE151,ZZE150..RHD200611-200707

sub47101-12631

main47101-12631iADE150..RHD200708-201002

main47101-12650iADE150,NDE150,ZRE151..LHD..6F..(DCRL,HTWVM)200611-201304

main47101-12660iNDE150,ZRE151..(4FC,6FS)..(DCR,HTWC)200611-201304

47101ASPRING(FOR BRAKE PEDAL RETURN)

main90507-15005iADE150200611-201207

main90507-15007iNDE150,NRE150,ZRE151201208-201304

47101BBUSH(FOR BRAKE PEDAL)

main90386-13015iADE150,NDE150,ZRE151,ZZE150..RHD200611-201304

47121PAD, BRAKE PEDAL

main31321-42010iNDE150,NRE150,ZRE151..6F200611-201304

main47121-42010iNDE150,ZRE151..5FS200611-201304

47124SHAFT, BRAKE PEDAL

main90109-10174iNDE150,ZRE151,ZZE150..LHD200611-201304

47264APIN(FOR PUSH ROD)

main90249-08256iZRE151..RHD..N;NDE150,NRE150,ZRE151..DCR,HTWC200611-201304

55106SUPPORT SUB-ASSY, BRAKE PEDAL

main55106-12680iADE150,NDE150,ZRE151,ZZE150..RHD200611-201002

main55106-12690iNDE150,NRE150,ZRE151200611-201304

8401

9011908C42

main90119-08C42

9017910088

main90179-10088

9018508002

main90185-08002

9046816142

main90468-16142

12 parts on this diagram · 1 diagram in section
