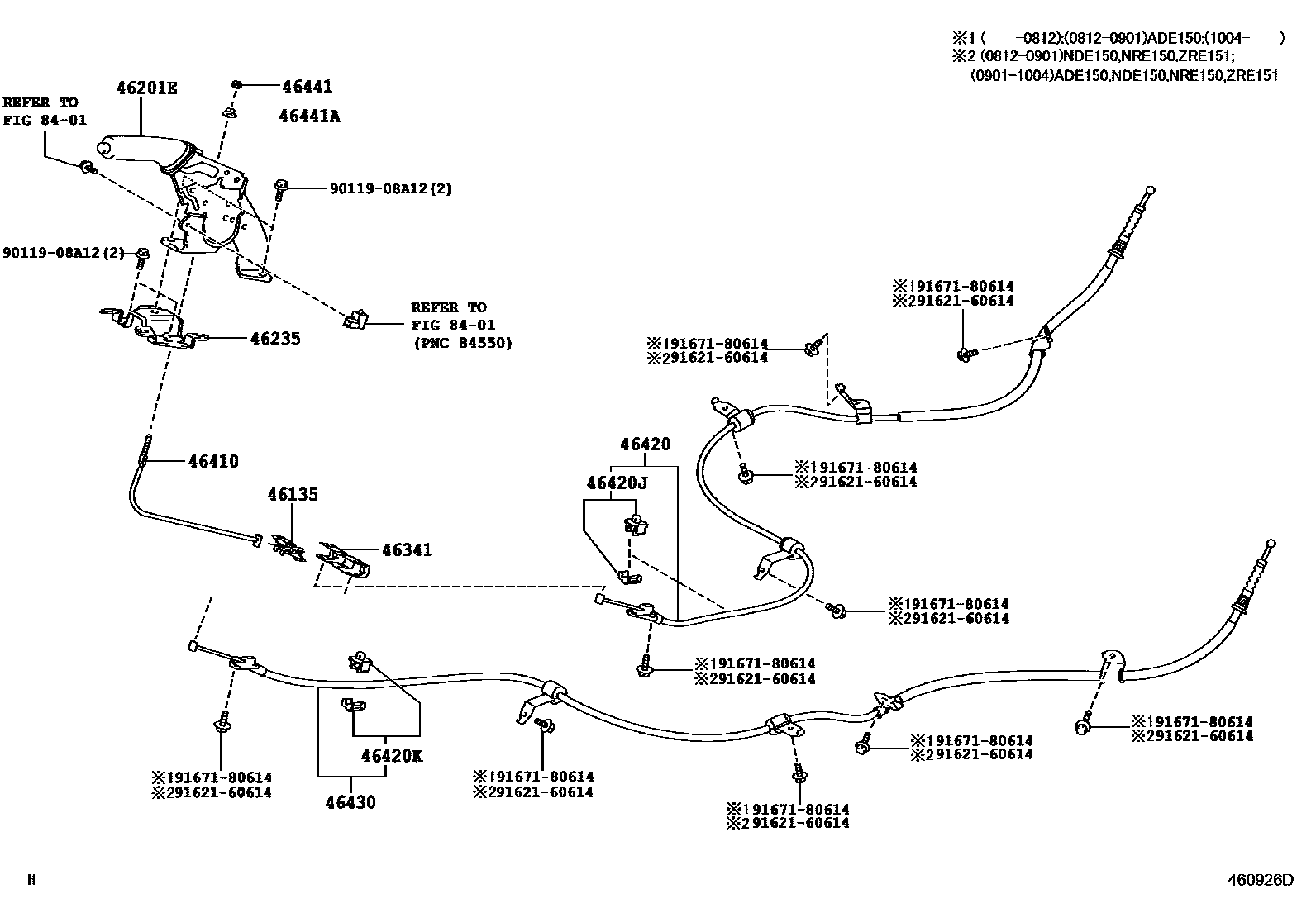

PARKING BRAKE & CABLE

46135STOPPER, PARKING BRAKE CABLE END

main46135-12010iADE150200611-201304

46201ELEVER SUB-ASSY, PARKING BRAKE

main46201-12370-B0iNDE150,NRE150,ZRE151..D201004-201011

DK.GRAY,TRIM1#,4#

sub46201-12370

main46201-12370-B0iNDE150,NRE150,ZRE151..D200611-201011

DK.GRAY,TRIM1#

sub46201-12370

main46201-12370-C0iNDE150,NRE150,ZRE151..D201011-201304

BLACK,TRIM1#,4#

sub46201-12370

main46201-12370-C0iNDE150,NRE150,ZRE151..D201011-201304

BLACK,TRIM1#

sub46201-12370

main46201-12370-E0iNDE150,ZRE151,ZZE150..LHD..N200611-201004

ASH BROWN,TRIM4#

sub46201-12370

main46201-12380-B0iADE150..RHD..DCRL;NDE150,NRE150,ZRE151..RHD200611-201004

DK.GRAY,TRIM1#

sub46201-12380

main46201-12380-E0iZRE151,ZZE150..RHD..N200611-201004

ASH BROWN,TRIM4#

sub46201-12380

46235BRACKET, PARKING BRAKE LEVER SUPPORT

main46235-12010iNDE150,NRE150,ZRE151200611-201304

46341EQUALIZER, PARKING BRAKE

main46341-12040iADE150200611-201304

46410CABLE ASSY, PARKING BRAKE, NO.1

main46410-12300iADE150,NDE150,ZRE151,ZZE150200611-200612

main46410-12320iNDE150,NRE150,ZRE151200701-201304

46420CABLE ASSY, PARKING BRAKE, NO.2

main46420-12590iADE150,NDE150200611-200701

sub46420-12730

main46420-12700iZRE151,ZZE150200611-200711

sub46420-12720

main46420-12720iZRE151..D..HTWVM;ADE150,NDE150..DCRL;ZRE151..LHD..N..HTWVM200712-201304

sub46420-12810

main46420-12721iNDE150,NRE150,ZRE151201207-201210

sub46420-12720

46420JCLAMP, NO.3(FOR PARKING BRAKE CABLE)

main46402-12010iADE150,NDE150,ZRE151,ZZE150200611-200711

sub46402-12030

main46402-12030iNDE150,ZRE151,ZZE150200712-201304

46420KCLAMP, NO.4(FOR PARKING BRAKE CABLE)

main46402-12010iADE150,NDE150,ZRE151,ZZE150200611-200711

sub46402-12030

main46402-12030iNDE150,ZRE151,ZZE150200712-201304

46430CABLE ASSY, PARKING BRAKE, NO.3

main46430-12470iADE150,NDE150200611-200701

sub46430-12620

main46430-12580iADE150,NDE150200611-200711

sub46430-12610

main46430-12610iADE150200712-201304

sub46430-12700

main46430-12611iNDE150,NRE150,ZRE151201207-201210

sub46430-12610

46441NUT, WIRE ADJUSTING, NO.1

main90179-06299iADE150200611-201304

46441ANUT, WIRE ADJUSTING, NO.2

main46441-12010iNDE150,ZRE151,ZZE150200611-201304

8401

9011908A12

main90119-08A12

9162160614

main91621-60614

9167180614

main91671-80614

15 parts on this diagram · 1 diagram in section
