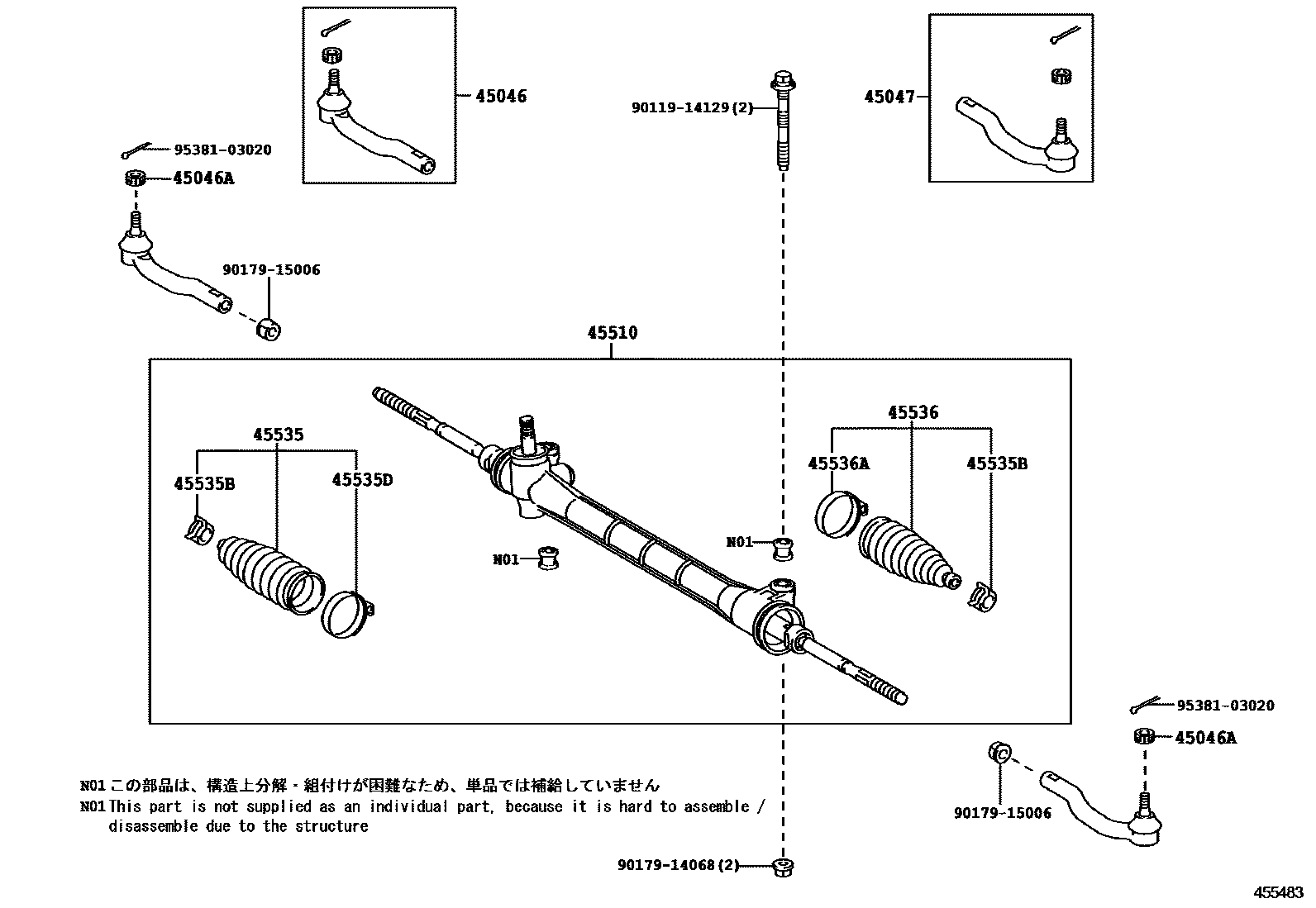

FRONT STEERING GEAR & LINK

0001 1 0002 1

45046END SUB-ASSY, TIE ROD, RH

main45046-19415iADE150200611-201304

45046ANUT, CASTLE(FOR TIE ROD END)

main90171-12028iNDE150,ZRE151,ZZE150200611-201304

45047END SUB-ASSY, TIE ROD, LH

main45047-19215iZRE151..D..HTWVM;ADE150,NDE150..DCRL;ZRE151..LHD..N..HTWVM200611-201304

45510GEAR ASSY, STEERING

main45510-12360iNDE150,ZRE151,ZZE150..RHD200611-201002

sub45510-12361

main45510-12390iNDE150,NRE150,ZRE151200611-201010

sub45510-12391

main45510-12391iNDE150,NRE150,ZRE151201010-201304

45535BOOT, STEERING RACK, NO.1

main45535-49015iNDE150,ZRE151,ZZE150200611-201304

45535BCLIP(FOR STEERING RACK BOOT)

main90467-19021iNDE150,ZRE151,ZZE150200611-201304

45535DCLAMP(FOR STEERING RACK BOOT NO.1)

main45538-47010iNDE150,ZRE151,ZZE150200611-201304

45536BOOT, STEERING RACK, NO.2

main45535-49015iNDE150,ZRE151,ZZE150200611-201304

45536ACLAMP(FOR STEERING RACK BOOT NO.2)

main45538-47010iNDE150,ZRE151,ZZE150200611-201304

9011914129

main90119-14129

9017914068

main90179-14068

9017915006

main90179-15006

9538103020

main95381-03020

13 parts on this diagram · 2 diagrams in section
