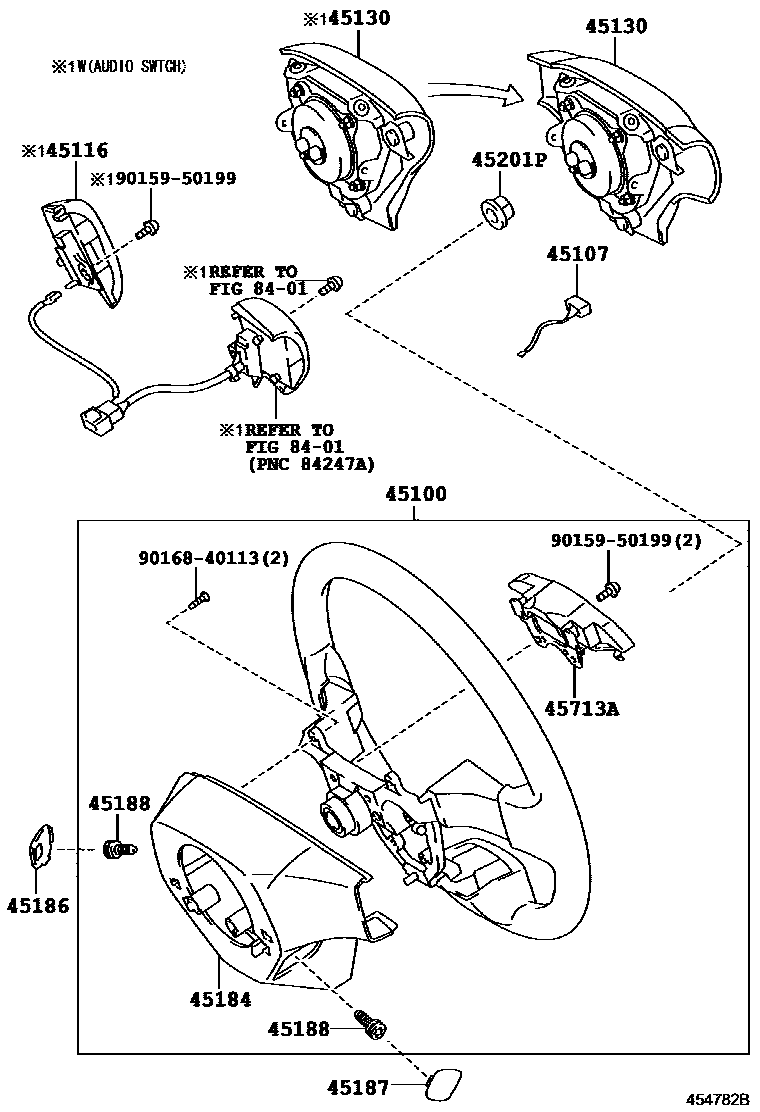

STEERING WHEEL
45100WHEEL ASSY, STEERING
3-SPOKE,URETHANE,DK.GRAY,TRIM1#
3-SPOKE,LEATHER,STEERING WHEEL-3-SPOKE,LEATHER,W(STEERING SW),DK.GRAY,TRIM1#
3-SPOKE,LEATHER,STEERING WHEEL-3-SPOKE,LEATHER,DK.GRAY,TRIM1#
3-SPOKE,LEATHER,DK.GRAY,TRIM1#
3-SPOKE,LEATHER,STEERING WHEEL-3-SPOKE,LEATHER,WITH(STEERING SW),DK.GRAY,TRIM1#
3-SPOKE,LEATHER,ASH BROWN,TRIM4#
3-SPOKE,URETHANE,DK.GRAY,TRIM1#
3-SPOKE,LEATHER,STEERING WHEEL-3-SPOKE,LEATHER,W(STEERING SW),DK.GRAY,TRIM1#
3-SPOKE,LEATHER,DK.GRAY,TRIM1#
3-SPOKE,LEATHER,STEERING WHEEL-3-SPOKE,LEATHER,DK.GRAY,TRIM1#
3-SPOKE,LEATHER,ASH BROWN,TRIM4#
3-SPOKE,LEATHER,STEERING WHEEL-3-SPOKE,LEATHER,W(STEERING SW),DK.GRAY,TRIM1#
3-SPOKE,LEATHER,DK.GRAY,TRIM1#,4#
3-SPOKE,LEATHER,DK.GRAY,TRIM1#,4#
3-SPOKE,URETHANE,DK.GRAY,TRIM1#
45107WIRE SUB-ASSY, HORN BUTTON
main45107-48010iNDE150..6F..N..DCR;NDE150,ZRE151..6F..(DCRL,HTWVM);ADE150,NRE150,ZRE151..N..(DCRL,HTWC)200812-201002
STEERING WHEEL-3-SPOKE,LEATHER,W(VOICE RECOGNITION SW)
STEERING WHEEL-3-SPOKE,LEATHER,WITH(STEERING SW)
STEERING WHEEL-3-SPOKE,LEATHER,W(STEERING SW)
45116ORNAMENT, STEERING WHEEL, NO.1
45130BUTTON ASSY, HORN
main45130-12B40-B0iZRE151..LHD..N..HTWVM;ADE150,NDE150..N..DCRL;NDE150,NRE150,ZRE151..D200611-201004
DK.GRAY,TRIM1#
ASH BROWN,TRIM4#
DK.GRAY,TRIM1#
ASH BROWN,TRIM4#
DK.GRAY,TRIM1#
DK.GRAY,TRIM1#,4#
45186COVER, STEERING WHEEL, LOWER NO.2
DK.GRAY,TRIM1#
ASH BROWN,TRIM4#
45187COVER, STEERING WHEEL, LOWER NO.3
DK.GRAY,TRIM1#
sub45187-12020
45188SCREW, STEERING WHEEL PAD ATTACHING
L=18
45201PNUT, STEERING WHEEL SET
45713ADAMPER, STEERING SHAKE
8401
9015950199
main90159-50199
9016840113
main90168-40113
13 parts on this diagram · 4 diagrams in section
