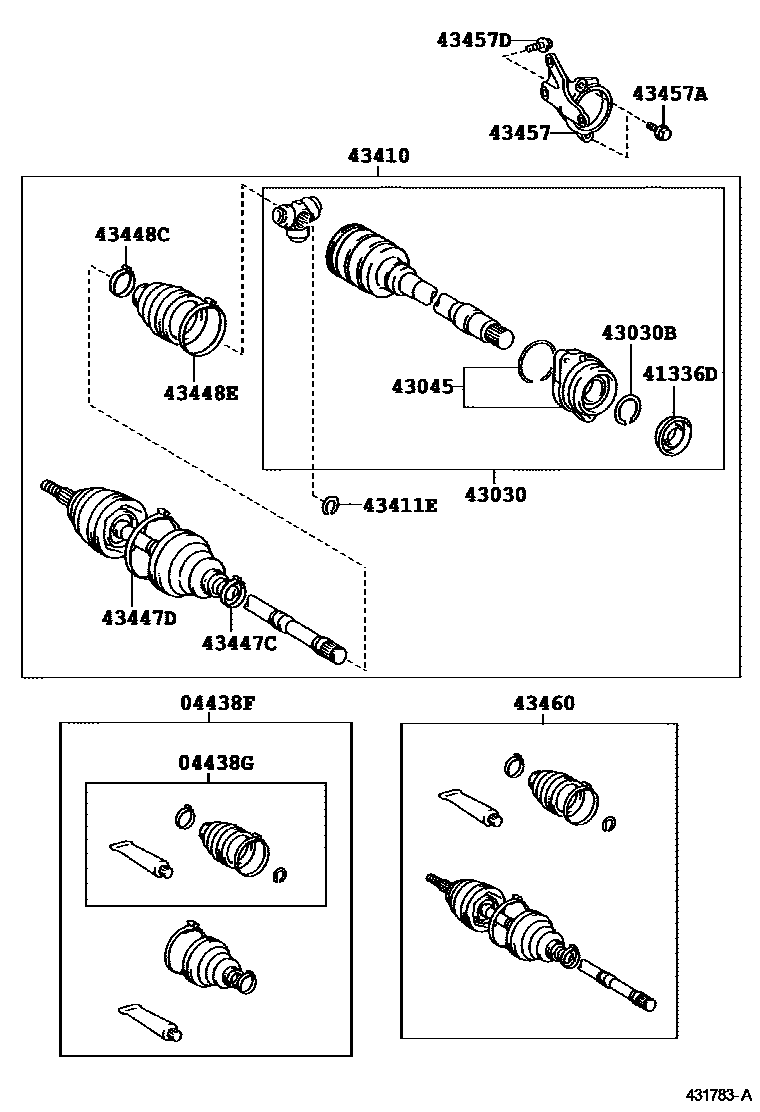

FRONT DRIVE SHAFT

0001 1RH 0002 1LH 0003 1RH 0004 1LH 0005 1

04438FBOOT KIT, FRONT DRIVE SHAFT, IN & OUTBOARD, RH

main04427-02410iADE150200611-201002

sub04427-02411

04438GBOOT KIT, FRONT DRIVE SHAFT INBOARD JOINT, RH

main04437-02280iZRE151..RHD..N;NDE150..RHD..DCR200611-201304

main04437-02290iNRE150;ZRE151..4FC200611-201304

main04437-05070iADE150200611-201002

41336DCOVER, FRONT DRIVE SHAFT DUST, RH

main41336-05010iNRE150;ZRE151..4FC200611-201304

main41336-05100iADE150200611-201002

main41336-05140iZRE151..RHD..N;NDE150..RHD..DCR¥380200611-201304

43030JOINT ASSY, FRONT DRIVE INBOARD, RH

main43030-05200iADE150200611-201002

main43040-02030iZRE151,ZZE150¥10,000200611-201304

main43040-05110iNDE150..DCRL;ZRE151..D..HTWVM;ZRE151..LHD..N..HTWVM200611-201304

43030BRING, HOLE SNAP (FOR FRONT DRIVE INBOARD JOINT RH)

main43425-05050iADE150200611-201002

main90080-52055iNDE150..DCRL;ZRE151..D..HTWVM;ZRE151..LHD..N..HTWVM¥90200611-201304

main90080-52056iNRE150;ZRE151..4FC¥100200611-201304

43045CASE SUB ASSY, DRIVE SHAFT BEARING

main43045-64020iADE150¥4,940200611-201002

43410SHAFT ASSY, FRONT DRIVE, RH

main43410-02570iZRE151,ZZE150200611-201112

sub43410-02571¥68,900

main43410-02571iNRE150;ZRE151..4FC¥68,900201112-201304

main43410-02580iNDE150¥82,800200611-201112

sub43410-02581

main43410-02581iNDE150,ZRE151..MTM201112-201304

main43410-02590iADE150200611-201002

sub43410-02591

43411ERING, SHAFT SNAP (FOR FRONT DRIVE INNER SHAFT INNER RH)

main43425-05040iADE150200611-201002

main90080-52093iNDE150,NRE150,ZRE151¥120200611-201304

43447CCLAMP (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)

main42345-05140iNDE150..DCRL;ZRE151..D..HTWVM;ZRE151..LHD..N..HTWVM¥250200611-201304

main42345-05280iADE150200611-201002

43447DCLAMP, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)

main42345-02220iZRE151..RHD..N;NDE150,NRE150..RHD..(DCR,HTWC)200611-201304

main42345-05270iADE150¥680200611-201002

43448CCLAMP (FOR FRONT AXLE INBOARD JOINT BOOT RH)

main42345-02240iNDE150..DCRL;ZRE151..D..HTWVM;ZRE151..LHD..N..HTWVM¥260200611-201304

main42345-05250iADE150200611-201002

43448ECLAMP, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT RH)

main42345-05030iNDE150,NRE150,ZRE151200611-201304

main42345-05210iADE150200611-201002

43457BRACKET, DRIVE SHAFT BEARING

main43457-12060iADE150200611-201002

43457ABOLT (FOR DRIVE SHAFT BEARING BRACKET SETTING NO.1)

main90105-10361iADE150¥110200611-201002

*10-1.25PX22-19.5

43457DBOLT(FOR DRIVE SHAFT BEARRING BRACKET SETTING NO.2)

main90105-10381iADE150¥100200611-201002

43460SHAFT ASSY, FRONT DRIVE OUTBOARD JOINT, RH

main43460-09R20iNRE150;ZRE151..4FC200611-201112

sub43460-09R21

main43460-09R21iNRE150;ZRE151..4FC201112-201304

main43460-09R30iZRE151..RHD..N;NDE150..RHD..DCR200611-201112

sub43460-09R31

main43460-09R31iNDE150,ZRE151..MTM201112-201304

main43470-09S90iADE150200611-201002

sub43470-09S91

16 parts on this diagram · 5 diagrams in section
