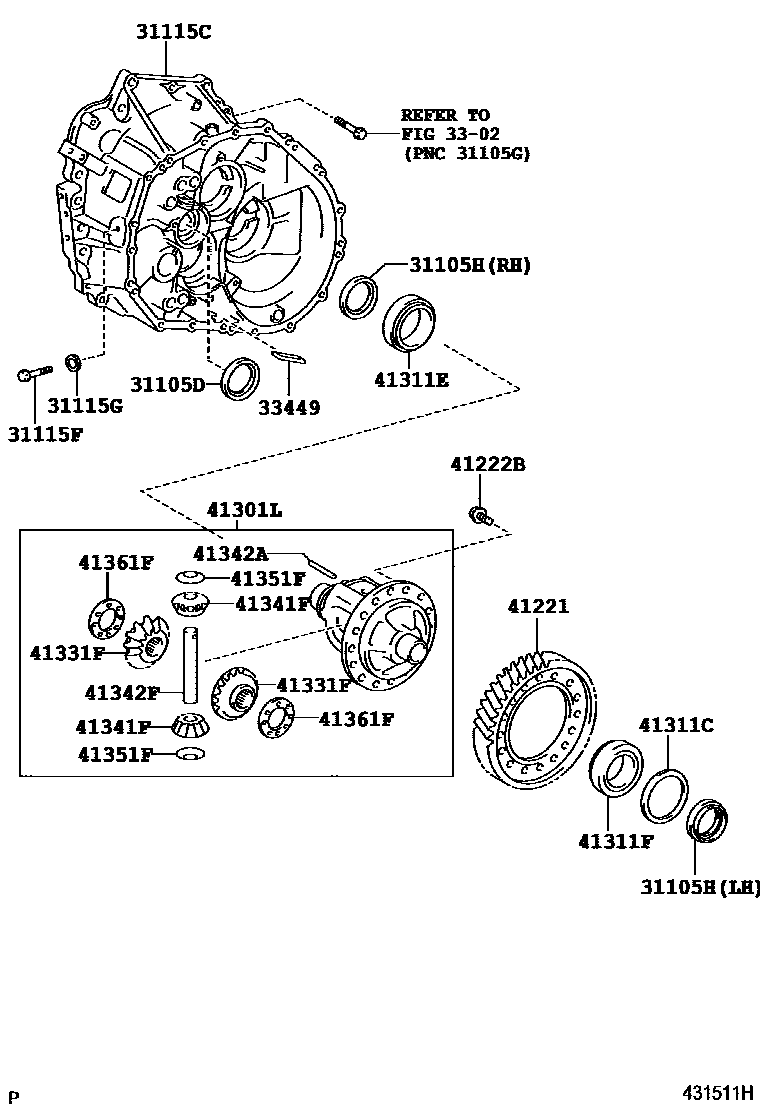

FRONT AXLE HOUSING & DIFFERENTIAL
31105HSEAL, OIL, NO.2(FOR TRANSAXLE CASE)
sub90311-34044
sub90311-34039
sub90311-35065
sub90311-35065
*201,*206
31115FBOLT(FOR FRONT TRANSAXLE CASE)
31115GGASKET(FOR FRONT TRANSAXLE CASE)
3302
33449MAGNET, TRANSMISSION
41222BBOLT (FOR FRONT DIFFERENTIAL RING GEAR SET)
41301LCASE SUB-ASSY, FRONT DIFFERENTIAL, NO.1
41311CASE, FRONT DIFFERENTIAL
41311CSHIM (FOR FRONT DIFFERENTIAL CASE REAR)
T=1.90,MARK 01
T=1.95,MARK 02
T=2.00,MARK 03
T=2.05,MARK 04
T=2.10,MARK 05
T=2.15,MARK 06
T=2.20,MARK 07
T=2.25,MARK 08
T=2.30,MARK 09
T=2.35,MARK 10
T=2.40,MARK 11
T=2.45,MARK 12
T=2.50,MARK 13
T=2.55,MARK 14
T=2.60,MARK 15
T=2.65,MARK 16
T=2.70,MARK 17
T=2.75,MARK 18
T=2.80,MARK 19
41311FBEARING, TAPERED ROLLER (FOR FRONT DIFFERENTIAL CASE REAR)
*201,*206
41342APIN, STRAIGHT (FOR FRONT DIFFERENTIAL PINION SHAFT)
*201,*206
41351FWASHER, FRONT DIFFERENTIAL PINION THRUST
*201,*206
*201,*206
41361FWASHER, FRONT DIFFERENTIAL SIDE GEAR THRUST, NO.1
T=0.95
T=1.00
T=1.05
T=1.10
T=1.15
T=1.20
T=1.25
T=1.30
T=1.35
T=1.40
T=1.45
T=1.50
T=1.55
T=1.60
T=1.65
T=1.70
T=1.75
T=1.80
T=1.85
T=1.90
T=1.95
T=1.00,MARK 02,*201,*206
T=1.00,MARK 02
T=1.10,MARK 03
T=1.10,MARK 03,*201,*206
T=1.20,MARK 04,*201,*206
T=1.20,MARK 04
T=1.30,MARK 12,*201,*206
T=1.40,MARK 13,*201,*206
T=0.95,MARK 14
T=0.95,MARK 14,*201,*206
T=1.05,MARK 15
T=1.05,MARK 15,*201,*206
T=1.15,MARK 16,*201,*206
T=1.15,MARK 16
T=1.25,MARK 17,*201,*206
T=1.35,MARK 18,*201,*206
20 parts on this diagram · 5 diagrams in section
