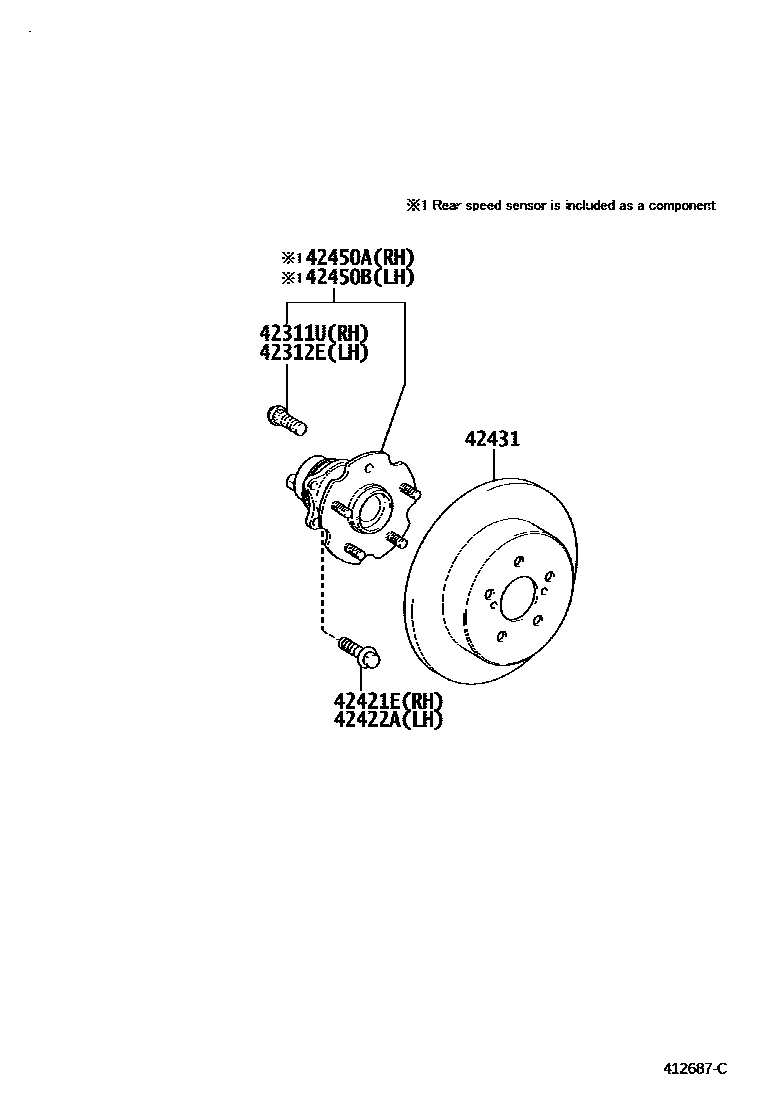

REAR AXLE SHAFT & HUB

42311UBOLT, HUB(FOR REAR AXLE RH)

main90942-02049iADE150200611-201304

42312EBOLT, HUB(FOR REAR AXLE LH)

main90942-02049iNDE150,ZRE151,ZZE150200611-201304

42421EBOLT (FOR REAR AXLE BEARING CASE RH)

main90105-12350iNDE150,ZRE151,ZZE150200611-201304

42422ABOLT (FOR REAR AXLE BEARING CASE LH)

main90105-12350iNDE150,ZRE151,ZZE150200611-201304

42431DISC, REAR

main42431-12260iZRE151..D..HTWVM;ZRE151..LHD..N..HTWVM200611-201304

main42431-12280iADE150,NDE150..DCRL200611-201304

42450AHUB & BEARING ASSY, REAR AXLE, RH

main42450-12090iZRE151..RHD..N;NRE150,ZRE151..HTWC200611-201304

main42450-12100iNDE150..DCR200611-201304

42450BHUB & BEARING ASSY, REAR AXLE, LH

main42450-12090iZRE151,ZZE150200611-201304

main42450-12100iADE150,NDE150..DCRL200611-201304

7 parts on this diagram · 1 diagram in section
