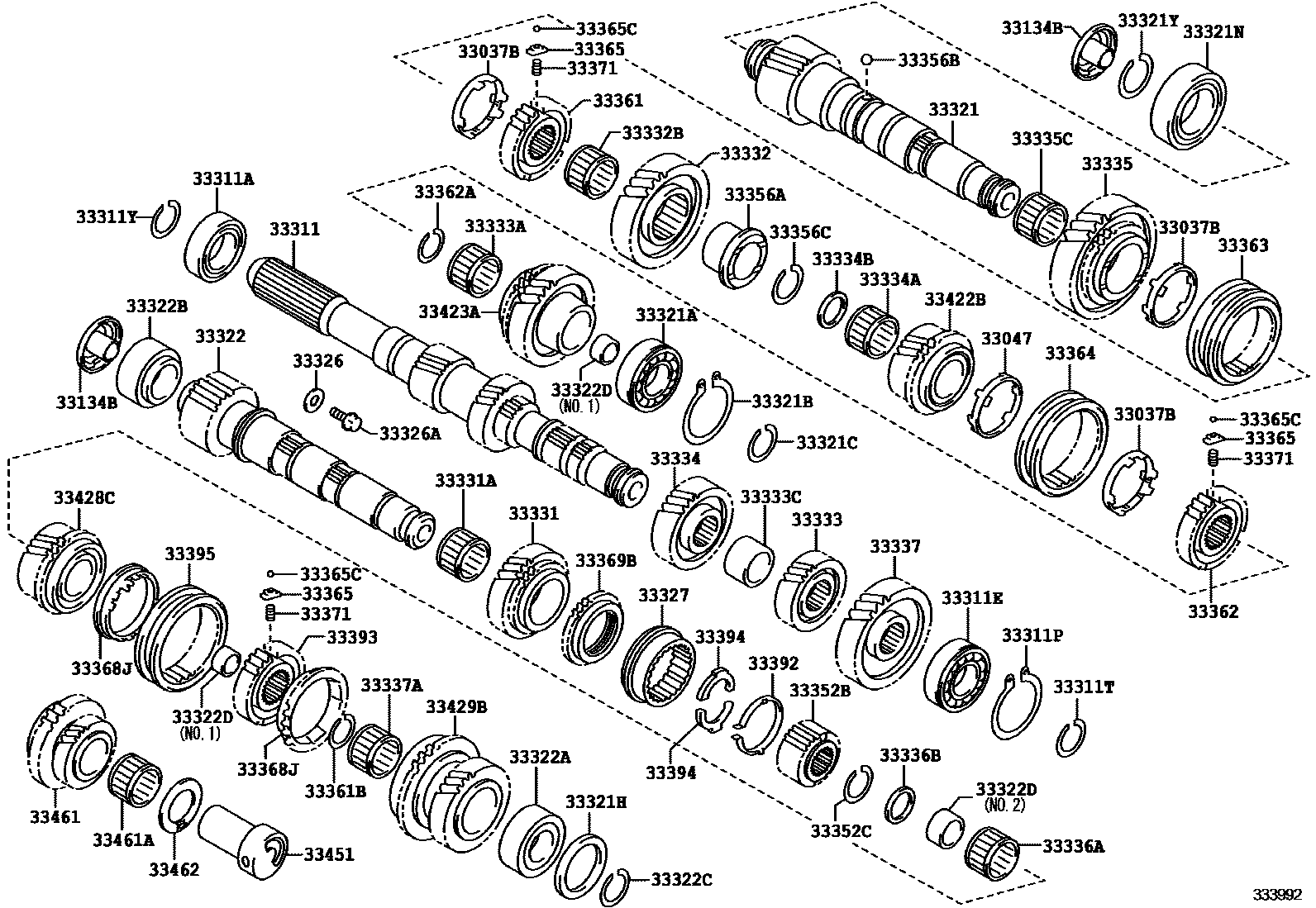

TRANSMISSION GEAR (MTM)
33037BRING SET, SYNCHRONIZER, NO.1
*201,*206
33047RING SET, SYNCHRONIZER, NO.4
33134BCOVER, OUTPUT SHAFT(MTM)
*201,*206
33311ABEARING (FOR INPUT SHAFT FRONT)
*201,*206
33311EBEARING, RADIAL BALL (FOR INPUT SHAFT REAR)
sub90363-25091
sub90363-25092
sub90363-28016
sub90363-32053
33311PRING, SHAFT SNAP (FOR INPUT SHAFT REAR BEARING)
T=2.29-2.34,MARK A
T=2.35-2.40,MARK B
T=2.41-2.46,MARK C
T=2.47-2.52,MARK D
T=2.53-2.58,MARK E
T=2.59-2.64,MARK F
33311TRING, SHAFT SNAP (FOR INPUT SHAFT)
T=1.80,MARK A
T=1.85,MARK B
T=1.90,MARK C
T=1.95,MARK D
T=2.00,MARK E
T=2.40,MARK F
T=2.45,MARK G
T=2.50,MARK H
T=2.05,MARK 0
T=2.10,MARK 1
T=2.15,MARK 2
T=2.20,MARK 3
T=2.25,MARK 4
T=2.30,MARK 5
T=2.35,MARK 6
33311YRING, SHAFT SNAP (FOR INPUT SHAFT REAR BEARING)
T=1.65, MARK A
*206,T=1.65, MARK A,*201,T=1.65, MARK A
T=1.65,MARK A,*206
T=1.65,MARK A,*201
*206,T=1.70, MARK B,*201,T=1.70, MARK B
T=1.70,MARK B,*206
T=1.70, MARK B
T=1.70,MARK B,*201
T=1.75, MARK C
T=1.75,MARK C,*206
T=1.75,MARK C,*201
*201,T=1.75, MARK C,*206,T=1.75, MARK C
*206,T=1.75, MARK C,*201,T=1.75, MARK C
T=1.80,MARK D,*206
T=1.80,MARK D,*201
*206,T=1.80, MARK D,*201,T=1.80, MARK D
T=1.80, MARK D
T=1.85, MARK E
T=1.85,MARK E,*206
T=1.85,MARK E,*201
*206,T=1.85, MARK E,*201,T=1.85, MARK E
T=1.90,MARK F,*201
T=1.90,MARK F,*206
T=1.90, MARK F
*206,T=1.90, MARK F,*201,T=1.90, MARK F
*206,T=1.95, MARK G,*201,T=1.95, MARK G
T=1.95, MARK G
T=1.95,MARK G,*206
T=1.95,MARK G,*201
T=2.00,MARK H,*201
T=2.00,MARK H,*206
T=2.00, MARK H
*201,T=2.00, MARK H,*206,T=2.00, MARK H
*201,T=2.05, MARK J,*206,T=2.05, MARK J
T=2.05, MARK J
T=2.05,MARK J,*201
T=2.05,MARK J,*206
*201,T=2.10, MARK K,*206,T=2.10, MARK K
T=2.10, MARK K
T=2.10,MARK K,*201
T=2.10,MARK K,*206
T=2.15, MARK L
T=2.15,MARK L,*206
T=2.15,MARK L,*201
*206,T=2.15, MARK L,*201,T=2.15, MARK L
T=2.20,MARK M,*201
T=2.20, MARK M
T=2.20,MARK M,*206
*206,T=2.20, MARK M,*201,T=2.20, MARK M
*206,T=2.25, MARK N,*201,T=2.25, MARK N
T=2.25, MARK N
T=2.25,MARK N,*201
T=2.25,MARK N,*206
T=2.30, MARK P
*201,T=2.30, MARK P,*206,T=2.30, MARK P
T=2.30,MARK P,*201
T=2.30,MARK P,*206
33321SHAFT, OUTPUT
sub33321-12191
sub33321-12211
sub33321-12210
33321BRING, SHAFT SNAP (FOR OUTPUT SHAFT BEARING)
33321CRING, SHAFT SNAP (FOR OUTPUT SHAFT BEARING)
T=1.95-1.99,MARK 1
T=2.00-2.04,MARK 2
T=2.05-2.09,MARK 3
T=2.10-2.14,MARK 4
T=2.15-2.19,MARK 5
T=2.20-2.24,MARK 6
T=1.85-1.89,MARK 7
T=1.90-1.94,MARK 8
T=1.85,MARK B
T=1.90,MARK C
T=1.95,MARK D
T=2.00,MARK E
T=2.05,MARK 0
T=2.10,MARK 1
T=2.15,MARK 2
33321HSHIM (FOR OUTPUT SHAFT REAR BEARING)
T=1.80,MARK A
T=1.85,MARK B
T=1.90,MARK C
T=1.95,MARK D
T=2.00,MARK E
T=2.05,MARK F
T=2.10,MARK G
T=2.15,MARK H
T=2.20,MARK J
T=2.25,MARK K
T=2.30,MARK L
T=2.35,MARK M
T=2.40,MARK N
T=2.45,MARK P
T=2.50,MARK Q
T=2.55,MARK R
T=2.60,MARK S
T=1.750,MARK 33
T=1.750,MARK 33,*201
T=1.750,MARK 33,*206
T=1.755,MARK 22
T=1.755,MARK 22,*201
T=1.755,MARK 22,*206
T=1.800,MARK 11
T=1.800,MARK 11,*201
T=1.800,MARK 11,*206
T=1.825,MARK 00,*201
T=1.825,MARK 00
T=1.825,MARK 00,*206
T=1.850,MARK 0,*201
T=1.850,MARK 0
T=1.850,MARK 0,*206
T=1.875,MARK 1,*201
T=1.875,MARK 1,*206
T=1.875,MARK 1
T=1.900,MARK 2
T=1.900,MARK 2,*206
T=1.900,MARK 2,*201
T=1.925,MARK 3,*201
T=1.925,MARK 3
T=1.925,MARK 3,*206
T=1.950,MARK 4,*206
T=1.950,MARK 4
T=1.950,MARK 4,*201
T=1.975,MARK 5,*206
T=1.975,MARK 5,*201
T=1.975,MARK 5
T=2.000,MARK 6,*206
T=2.000,MARK 6
T=2.000,MARK 6,*201
T=2.025,MARK 7,*201
T=2.025,MARK 7
T=2.025,MARK 7,*206
T=2.050,MARK 8
T=2.050,MARK 8,*201
T=2.050,MARK 8,*206
T=2.075,MARK 9,*201
T=2.075,MARK 9
T=2.075,MARK 9,*206
T=2.100,MARK A
T=2.100,MARK A,*201
T=2.100,MARK A,*206
T=2.125,MARK B,*201
T=2.125,MARK B
T=2.125,MARK B,*206
T=2.150,MARK C,*201
T=2.150,MARK C
T=2.150,MARK C,*206
T=2.175,MARK D
T=2.175,MARK D,*201
T=2.175,MARK D,*206
T=2.200,MARK E,*201
T=2.200,MARK E
T=2.200,MARK E,*206
T=2.225,MARK F,*201
T=2.225,MARK F
T=2.225,MARK F,*206
T=2.250,MARK G,*201
T=2.250,MARK G
T=2.250,MARK G,*206
T=2.275,MARK H,*206
T=2.275,MARK H,*201
T=2.275,MARK H
T=2.300,MARK J
T=2.300,MARK J,*201
T=2.300,MARK J,*206
T=2.325,MARK K
T=2.325,MARK K,*206
T=2.325,MARK K,*201
T=2.350,MARK L
T=2.350,MARK L,*201
T=2.350,MARK L,*206
T=2.375,MARK M
T=2.375,MARK M,*206
T=2.375,MARK M,*201
T=2.400,MARK N
T=2.400,MARK N,*206
T=2.400,MARK N,*201
T=2.425,MARK P
T=2.425,MARK P,*201
T=2.425,MARK P,*206
T=2.450,MARK Q
T=2.450,MARK Q,*201
T=2.450,MARK Q,*206
T=2.475,MARK R,*201
T=2.475,MARK R,*206
T=2.475,MARK R
T=2.500,MARK S,*201
T=2.500,MARK S
T=2.500,MARK S,*206
T=2.525,MARK T,*206
T=2.525,MARK T
T=2.525,MARK T,*201
T=2.550,MARK U,*201
T=2.550,MARK U
T=2.550,MARK U,*206
T=2.575,MARK V
T=2.575,MARK V,*201
T=2.575,MARK V,*206
T=2.600,MARK W
T=2.600,MARK W,*201
T=2.600,MARK W,*206
T=2.625,MARK X
T=2.625,MARK X,*201
T=2.625,MARK X,*206
T=2.650,MARK Y,*206
T=2.650,MARK Y
T=2.650,MARK Y,*201
T=2.675,MARK Z,*201
T=2.675,MARK Z,*206
T=2.675,MARK Z
T=2.700,MARK ZZ,*201
T=2.700,MARK ZZ
T=2.700,MARK ZZ,*206
T=2.725,MARK YY
T=2.725,MARK YY,*201
T=2.725,MARK YY,*206
T=2.750,MARK XX,*206
T=2.750,MARK XX
T=2.750,MARK XX,*201
T=2.775,MARK WW
T=2.775,MARK WW,*201
T=2.775,MARK WW,*206
T=2.800,MARK VV,*201
T=2.800,MARK VV
T=2.800,MARK VV,*206
T=1.750,MARK 50,*201,*206
T=1.750,MARK 50
T=1.750,MARK 50,*201
T=1.755,MARK 51
T=1.755,MARK 51,*201,*206
T=1.755,MARK 51,*201
T=1.800,MARK 52
T=1.800,MARK 52,*201
T=1.800,MARK 52,*201,*206
T=1.825,MARK 53,*201,*206
T=1.825,MARK 53,*201
T=1.825,MARK 53
T=1.850,MARK 54
T=1.850,MARK 54,*201
T=1.850,MARK 54,*201,*206
T=1.875,MARK 55,*201
T=1.875,MARK 55
T=1.875,MARK 55,*201,*206
T=1.900,MARK 56
T=1.900,MARK 56,*201
T=1.900,MARK 56,*201,*206
T=1.925,MARK 57
T=1.925,MARK 57,*201,*206
T=1.925,MARK 57,*201
T=1.950,MARK 58
T=1.950,MARK 58,*201,*206
T=1.950,MARK 58,*201
T=1.975,MARK 59,*201
T=1.975,MARK 59
T=1.975,MARK 59,*201,*206
T=2.000,MARK 60
T=2.000,MARK 60,*201
T=2.000,MARK 60,*201,*206
T=2.025,MARK 61
T=2.025,MARK 61,*201,*206
T=2.025,MARK 61,*201
T=2.050,MARK 62,*201
T=2.050,MARK 62
T=2.050,MARK 62,*201,*206
T=2.075,MARK 63,*201,*206
T=2.075,MARK 63,*201
T=2.075,MARK 63
T=2.100,MARK 64
T=2.100,MARK 64,*201
T=2.100,MARK 64,*201,*206
T=2.125,MARK 65
T=2.125,MARK 65,*201
T=2.125,MARK 65,*201,*206
T=2.150,MARK 66
T=2.150,MARK 66,*201,*206
T=2.150,MARK 66,*201
T=2.175,MARK 67
T=2.175,MARK 67,*201,*206
T=2.175,MARK 67,*201
T=2.200,MARK 68,*201,*206
T=2.200,MARK 68,*201
T=2.200,MARK 68
T=2.225,MARK 69,*201
T=2.225,MARK 69,*201,*206
T=2.225,MARK 69
T=2.250,MARK 70
T=2.250,MARK 70,*201
T=2.250,MARK 70,*201,*206
T=2.275,MARK 71
T=2.275,MARK 71,*201,*206
T=2.275,MARK 71,*201
T=2.300,MARK 72,*201
T=2.300,MARK 72
T=2.300,MARK 72,*201,*206
T=2.325,MARK 73
T=2.325,MARK 73,*201,*206
T=2.325,MARK 73,*201
T=2.350,MARK 74,*201,*206
T=2.350,MARK 74
T=2.350,MARK 74,*201
T=2.375,MARK 75,*201,*206
T=2.375,MARK 75,*201
T=2.375,MARK 75
T=2.375,MARK 75,STOP & START SYSTEM PACKAGE,*201
T=2.400,MARK 76,*201
T=2.400,MARK 76
T=2.400,MARK 76,*201,*206
T=2.425,MARK 77
T=2.425,MARK 77,*201,*206
T=2.425,MARK 77,*201
T=2.450,MARK 78
T=2.450,MARK 78,*201
T=2.450,MARK 78,*201,*206
T=2.475,MARK 79,*201,*206
T=2.475,MARK 79
T=2.475,MARK 79,*201
T=2.500,MARK 80,*201,*206
T=2.500,MARK 80,*201
T=2.500,MARK 80
T=2.525,MARK 81,*201
T=2.525,MARK 81,*201,*206
T=2.525,MARK 81
T=2.550,MARK 82
T=2.550,MARK 82,*201
T=2.550,MARK 82,*201,*206
T=2.575,MARK 83
T=2.575,MARK 83,*201,*206
T=2.575,MARK 83,*201
T=2.600,MARK 84,*201,*206
T=2.600,MARK 84,*201
T=2.600,MARK 84
T=2.625,MARK 85,*201,*206
T=2.625,MARK 85
T=2.625,MARK 85,*201
T=2.650,MARK 86,*201,*206
T=2.650,MARK 86,*201
T=2.650,MARK 86
T=2.675,MARK 87,*201
T=2.675,MARK 87
T=2.675,MARK 87,*201,*206
T=2.700,MARK 88,*201,*206
T=2.700,MARK 88,*201
T=2.700,MARK 88
T=2.725,MARK 89
T=2.725,MARK 89,*201,*206
T=2.725,MARK 89,*201
T=2.750,MARK 90,*201
T=2.750,MARK 90
T=2.750,MARK 90,*201,*206
T=2.775,MARK 91
T=2.775,MARK 91,*201
T=2.775,MARK 91,*201,*206
T=2.800,MARK 92
T=2.800,MARK 92,*201
T=2.800,MARK 92,*201,*206
33321NBEARING (FOR OUTPUT SHAFT FRONT)
*201,*206
33321YRING, SHAFT SNAP (FOR OUTPUT SHAFT FRONT BEARING)
33322SHAFT, OUTPUT, NO.2
33322ABEARING (FOR OUTPUT SHAFT NO.2 REAR)
33322BBEARING (FOR OUTPUT SHAFT NO.2 FRONT)
33322CRING, SNAP (FOR OUTPUT SHAFT NO.2 BEARING)
T=1.85,MARK B
T=1.90,MARK C
T=1.95,MARK D
T=2.00,MARK E
T=2.05,MARK 0
T=2.10,MARK 1
T=2.15,MARK 2
33322DCOLLAR (FOR OUTPUT SHAFT)
NO.1
NO.2
33326PLATE, BEARING LOCK
33326ABOLT (FOR BEARING LOCK PLATE)
33327SLEEVE, TRANSMISSION HUB, NO.4
33331GEAR, REVERSE
*201,*206
33331ABEARING (FOR REVERSE GEAR)
33332BBEARING, NEEDLE ROLLER (FOR 2ND GEAR)
*201,*206
33333CCOLLAR (FOR 3RD GEAR)
33334BSPACER (FOR 4TH GEAR BEARING)
*201,*206
33335CBEARING, NEEDLE ROLLER(FOR 1ST GEAR)
*201,*206
33336BSPACER (FOR 5TH GEAR BEARING)
33352BHUB, TRANSMISSION CLUTCH, NO.4
33352CRING, SHAFT SNAP
T=2.25,MARK A
T=2.30,MARK B
T=2.35,MARK C
T=2.40,MARK D
T=2.45,MARK E
T=2.50,MARK F
T=2.55,MARK G
T=2.60,MARK H
33356ARACE, 2ND GEAR BEARING INNER
*201,*206
33356BBALL, 2ND GEAR BEARING INNER RACE LOCK
33356CRING, SNAP (FOR 2ND GEAR BEARING INNER RACE)
T=2.25,MARK A
T=2.30,MARK B
T=2.35,MARK C
T=2.40,MARK D
T=2.45,MARK E
T=2.50,MARK F
T=2.55,MARK G
T=2.60,MARK H
33361HUB, TRANSMISSION CLUTCH, NO.1
*201,*206
33361BRING, SHAFT SNAP (FOR CLUTCH HUB NO.1)
T=2.50-2.55,MARK A
T=2.56-2.61,MARK B
T=2.62-2.67,MARK C
T=2.68-2.73,MARK D
T=2.74-2.79,MARK E
T=2.80-2.85,MARK F
T=2.25,MARK 1
T=2.30,MARK 2
T=2.35,MARK 3
T=2.40,MARK 4
T=2.45,MARK 5
T=2.50,MARK 6
33362HUB, TRANSMISSION CLUTCH, NO.2
sub33362-12050
sub33362-12051
sub33362-20041
*201,*206
sub33362-20041
33362ARING, SHAFT SNAP (FOR CLUTCH HUB NO.2 SETTING)
T=2.30-2.35,MARK 0
T=2.36-2.41,MARK 1
T=2.42-2.47,MARK 2
T=2.48-2.53,MARK 3
T=2.54-2.59,MARK 4
T=2.60-2.65,MARK 5
T=2.25,MARK 1
T=2.30,MARK 2
T=2.35,MARK 3
T=2.40,MARK 4
T=2.45,MARK 5
T=2.50,MARK 6
T=2.27,MARK 0
T=2.27,MARK 0,*201,*206
T=2.32,MARK 1,*201,*206
T=2.32,MARK 1
T=2.37,MARK 2
T=2.37,MARK 2,*201,*206
T=2.42,MARK 3,*201,*206
T=2.42,MARK 3
T=2.47,MARK 4
T=2.47,MARK 4,*201,*206
T=2.52,MARK 5,*201,*206
T=2.52,MARK 5
T=2.57,MARK 6,*201,*206
T=2.57,MARK 6
T=2.62,MARK 7,*201,*206
T=2.62,MARK 7
33363SLEEVE, TRANSMISSION HUB, NO.1
sub33363-20041
33365KEY, SYNCHROMESH SHIFTING, NO.1
*201,*206
33365CBALL(FOR SYNCHROMESH SHIFTING KEY)
33368JRING, SYNCHRONIZER (FOR 5TH GEAR)
33369RING, SYNCHRONIZER, NO.3
*201,*206
33369BRING, SYNCHRONIZER, NO.4
33392SPRING, SYNCHROMESH SHIFTING KEY, NO.3
33394KEY, SYNCHROMESH SHIFTING, NO.3
*201,*206
33451SHAFT, REVERSE IDLER GEAR
*201,*206
33461GEAR, REVERSE IDLER
33461ABEARING, REVERSE IDLER GEAR
70 parts on this diagram · 3 diagrams in section
