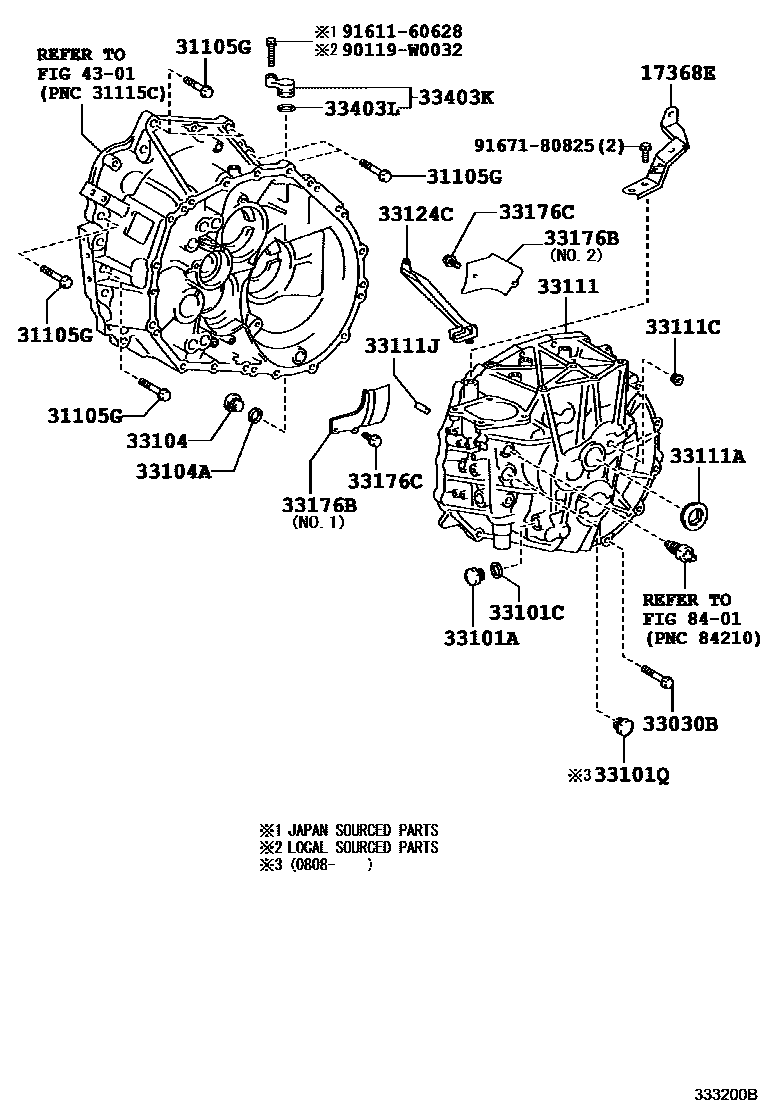

CLUTCH HOUSING & TRANSMISSION CASE (MTM)
17368ESUPPORT, AIR TUBE
31105GBOLT(FOR TRANSAXLE CASE & ENGINE SETTING)
*10-1.25PX60-30,(L)
*10-1.25PX65-30,(L)
*12-1.25PX75-30,(J)
*12-1.25PX55-30
*12-1.25PX60-30,(J)
*12-1.25PX45-30,TYPE A:REFER ILLUST.
*12-1.25PX75-30,(L)
*12-1.25PX60-30,(L)
*10-1.25PX60-30,(J)
*10-1.25PX65-30,(J)
*10-1.25PX45-26
*10-1.25PX80-26
*12-1.25PX45-30,TYPE B:REFER ILLUST.
*12-1.25PX80-30
*10-1.25PX45-30
*10-1.25PX55-30
33030BBOLT(FOR TRANSAXLE CASE & TRANSMISSION CASE SETTING)
*8-1.25PX45-27.5
*8-1.25PX50-30,NO.1
*8-1.25PX45-27.5,NO.2
*8-1.25PX40-22,*201,*206
*8-1.25PX40-22
33101APLUG(FOR MANUAL TRANSMISSION FILLER)
*201,NO.1,*206,NO.1
NO.1
NO.2
*201,NO.2,*206,NO.2
33101CGASKET(FOR MANUAL TRANSMISSION FILLER PLUG)
*206,NO.2
*201,NO.2
NO.1
*201,NO.1,*206,NO.1
*201,NO.2
*206,NO.2
*206
NO.2
*201,NO.2,*206,NO.2
33101QPLUG, NO.1(FOR TRANSMISSION CASE)
33104PLUG SUB-ASSY, DRAIN(MTM)
33104AGASKET, DRAIN PLUG(MTM)
33111APLUG, MANUAL TRANSMISSION CASE
*201,*206
33111CPLUG(FOR TRANSMISSION CASE)
OD=18
33111JPIN, STRAIGHT(FOR MANUAL TRANSMISSION CASE)
L=23,OD=8
L=23,OD=8,*201,*206
33124CPIPE, OIL RECEIVER, NO.1(MTM)
*201,*206
33176BSEPARATOR, TRANSMISSION OIL(MTM)
NO.1
NO.2
*201,NO.1,*206,NO.1
NO.1
*201,NO.2,*206,NO.2
NO.2
33176CBOLT(FOR TRANSMISSION OIL SEPARATOR)
*201,*206
33403KCOVER SUB-ASSY, SPEEDOMETER DRIVEN HOLE
33403LRING, O
4301
8401
90119W0032
main90119-W0032
9161160628
main91611-60628
9167180825
main91671-80825
22 parts on this diagram · 5 diagrams in section
