TRANSAXLE OR TRANSMISSION ASSY & GASKET KIT (MTM)

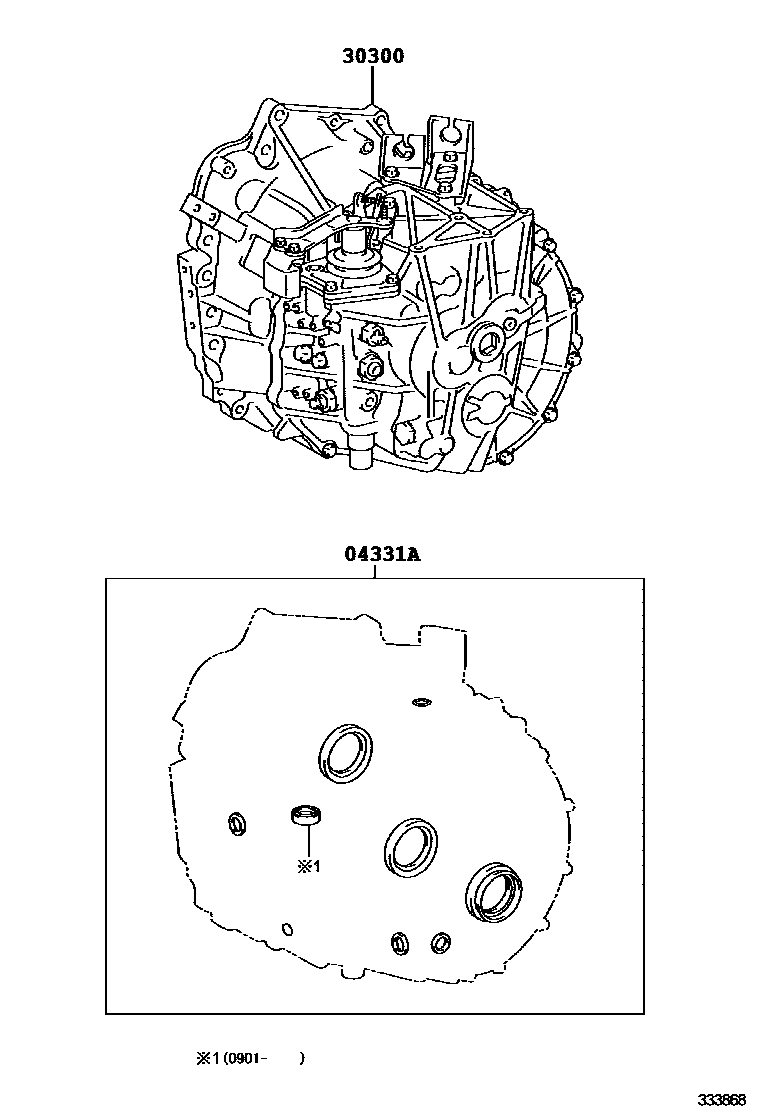

Parts diagram
04331AGASKET KIT, TRANSAXLE OVERHAUL(MTM)
main04331-12630i200611-200901
main04331-12640i200611-200812
sub04331-12641
main04331-12650i200611-200812
sub04331-12800
main04331-12660i200611-200812
main04331-12670i200611-200812
main04331-12690i200611-200812
sub04331-12691
main04331-20200i200901-201002
main04331-20250i201004-201211
*205
sub04331-20280
main04331-20250i200812-201002
*199,*205
sub04331-20280
main04331-20250i201004-201210
*199
sub04331-20280
main04331-20252i201211-201304
*205
sub04331-20270
main04331-20252i201210-201304
*199
sub04331-20270
main04331-52590i200812
*199,*205
sub04331-52592
main04331-52590i201004-201211
*205
sub04331-52592
main04331-52590i201004-201210
*199
sub04331-52592
main04331-52592i201211-201304
*205
sub04331-52593
main04331-52592i201210-201304
*199
sub04331-52593
main04331-52610i200812-201210
sub04331-52680
main04331-52612i201210-201304
sub04331-12830
30300TRANSAXLE ASSY, MANUAL
main30300-12A80i200611-200812
C50
main30300-12A90i200611-200812
C50
main30300-12B00i200611-200812
C53
main30300-12B30i200611-200901
EA61
main30300-12C70i200812-201004
EC60,*199
sub30300-02170
main30300-12C80i200812-201004
EC60,*199
sub30300-02180
main30300-12D00i200812-201004
EC65,*199
main30300-12D10i200901-201002
EA60
main30300-12D40i200812-201004
EC60,*205
sub30300-02170
main30300-12D41i201004-201304
EC60
main30300-12D50i200812-201004
EC60,*205
sub30300-02180
sub30300-12D51
main30300-12D51i201004-201304
EC60
main30300-12D60i200812-201004
EC65,*205
sub30300-12D61
main30300-12D61i201004-201304
EC65
main30330-12040i200812-201002
EC60A
sub30330-12041
main30330-12050i200812-201004
EC65A
sub30330-12051
main30330-12051i201004-201108
EC65A
sub30330-12052
main30330-12052i201108-201304
EC65A
sub30330-12080
main30340-12020i200611-200812
C50A
main30340-12030i200611-200812
C53A

2 parts on this diagram · 5 diagrams in section
