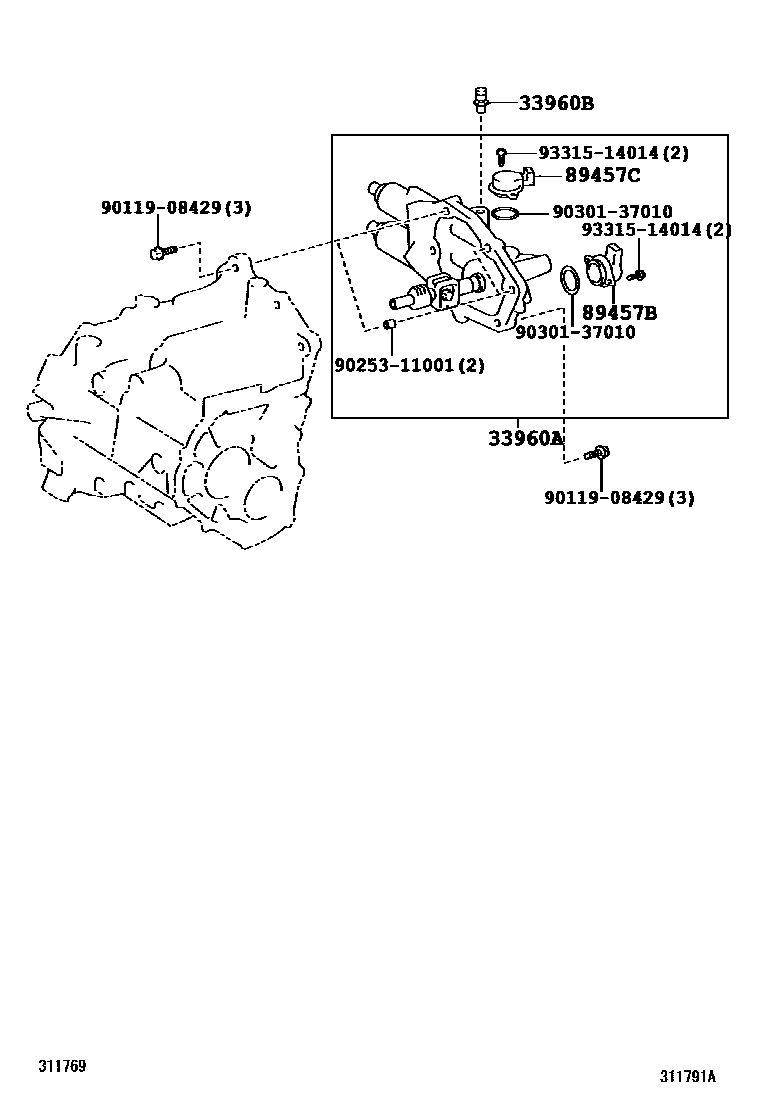

PUMP & ACTUATOR, SEQUENTIAL OR MULTI-MODE MANUAL TRANSAXLE

0001 1 0002 1

33960AACTUATOR ASSY, SHIFT & SELECT

main33960-12010iNDE150,ZRE151..5FS200611-200812

sub33960-12030

main33960-12022iNDE150,ZRE151..6FS200812-201108

sub33960-12024

main33960-12024iNDE150..6FS201108-201209

sub33960-12025

main33960-12025iNDE150..6FS201209-201304

33960BBREATHER PLUG, SHIFT & SELECT ACTUATOR

main90930-03133iNDE150,ZRE151..5FS200611-200812

89457BSTROKE SENSOR, SHIFT

main89457-52010iNDE150,ZRE151..5FS200611-201007

main89457-52020iNDE150..6FS201008-201304

89457CSTROKE SENSOR, SELECT

main89457-12020iNDE150,ZRE151..5FS200611-201009

sub89457-12021

main89457-12021iNDE150..6FS201010-201304

9011908429

main90119-08429

9025311001

main90253-11001

9030137010

main90301-37010

9331514014

main93315-14014

8 parts on this diagram · 2 diagrams in section
