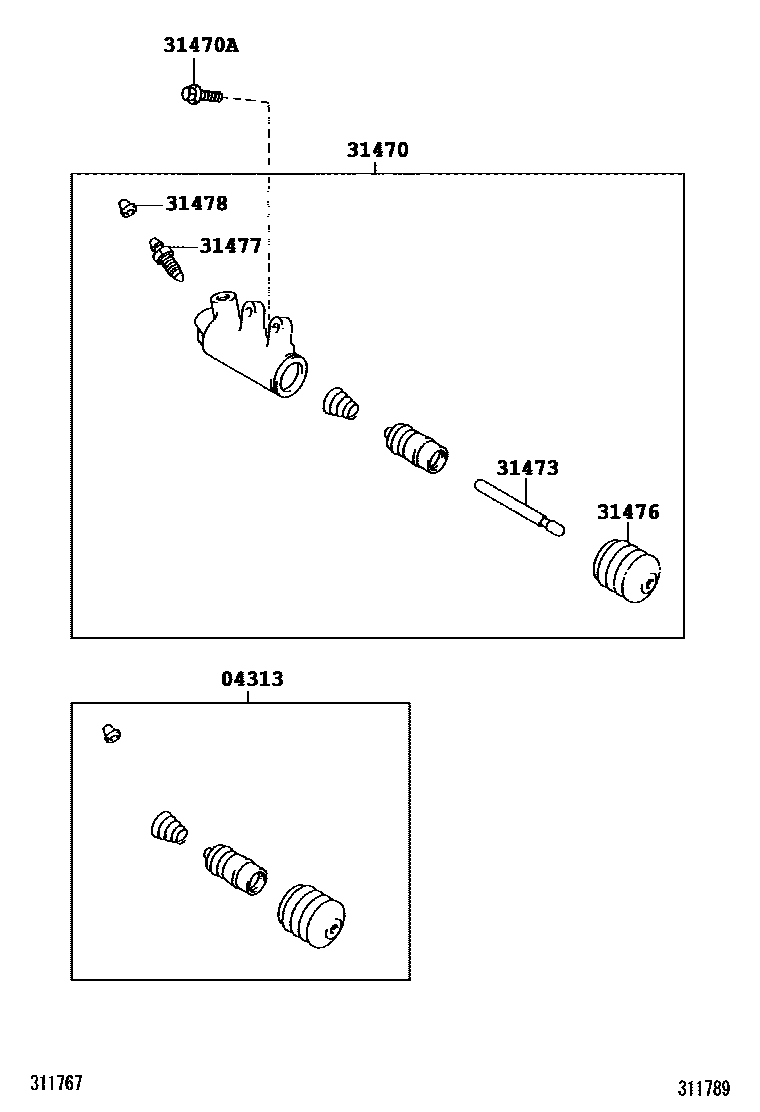

CLUTCH RELEASE CYLINDER

0001 1 0002 1 0003 1 0004 1 0005 1

04313CYLINDER KIT, CLUTCH RELEASE

main04313-17040iZZE150200611-200812

main04313-35060iNDE150..5F200611-200812

main04313-37030iZRE151..5F200611-200812

main04313-53010iADE150200611-201002

31470CYLINDER ASSY, CLUTCH RELEASE

main31470-12140iZZE150200611-200812

main31470-12160iZRE151..5F200611-200812

sub31470-12161

main31470-12180iNDE150..5F200611-200812

main31470-12190iADE150200611-201002

31470ABOLT(FOR CLUTCH RELEASE CYLINDER SETTING)

main91611-60822iADE150200611-201002

*8-1.25PX22-17.1

31473ROD, CLUTCH RELEASE CYLINDER PUSH, NO.1

main31473-20031iADE150200611-201002

main31473-22030iNDE150,ZRE151..5F200611-200812

31476BOOT, CLUTCH RELEASE CYLINDER

main31476-22010iADE150200611-201002

31477PLUG, BLEEDER(FOR RELEASE CYLINDER)

main47547-20010iADE150200611-201002

31478CAP, BLEEDER PLUG(FOR RELEASE CYLINDER)

main31478-30010iNDE150..6FS200812-201304

*201,*206

main31478-30010iNDE150,ZRE151,ZZE150..5F200611-201004

7 parts on this diagram · 5 diagrams in section
