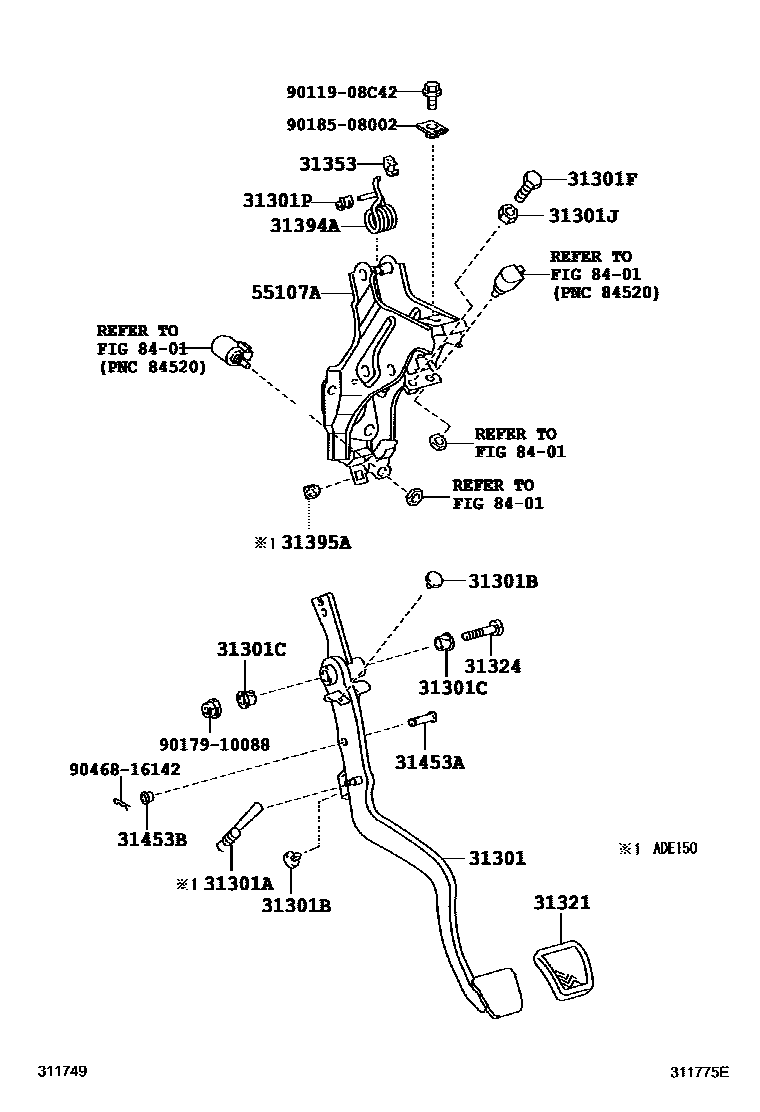

CLUTCH PEDAL & FLEXIBLE HOSE

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1 0008 1 0009 1 0010 1 0011 1 0012 1 0013 1 0014 1

31301PEDAL SUB-ASSY, CLUTCH

main31301-12510iNRE150,ZRE151..LHD..6F200611-200905

sub31301-12H01

main31301-12511iNRE150,ZRE151..LHD..6F..HTWC200906-201304

main31301-12520iNDE150..LHD..6F;ADE150..LHD..DCRL200611-200905

sub31301-12H00

main31301-12521iADE150,NDE150..LHD..6F200906-201002

main31301-12620iNDE150..LHD..6F..DCR201003-201304

main31311-12370iNDE150,ZRE151,ZZE150..RHD200611-201002

31301ASPRING(FOR CLUTCH PEDAL)

main31394-25010iADE150..LHD200611-201002

main90507-14047iZRE151,ZZE150..5F200611-201304

main90905-06079iADE150..RHD200611-201002

31301BCUSHION, NO.1(FOR CLUTCH PEDAL)

main90541-06036iADE150200611-201304

31301CBUSH(FOR CLUTCH PEDAL)

main90386-13015iNDE150,NRE150,ZRE151..6F200611-201304

31301FBOLT(FOR CLUTCH PEDAL STOPPER)

main90101-10055iNDE150,NRE150,ZRE151..6F200906-201304

main90101-10369iZRE151..RHD..D;ADE150,NDE150..RHD..DCRL200611-201002

31301JNUT(FOR CLUTCH PEDAL STOPPER)

main46441-12020iNDE150,NRE150,ZRE151..LHD..6F..(DCR,HTWC)200906-201304

main94130-61000iNDE150..LHD..6F;ADE150,NRE150,ZRE151..LHD..6F..(DCRL,HTWC,HTWVM)200611-201002

31301PBUSH(FOR CLUTCH PEDAL TURNOVER)

main90389-06055iNDE150..LHD..5F200611-201304

31321PAD, CLUTCH PEDAL

main31321-42010iZRE151..6F..D..HTWVM;ADE150,NDE150..6F..DCRL;ZRE151..LHD..6F..N..HTWVM200611-201304

31324SHAFT, CLUTCH PEDAL

main90101-10039iNDE150,ZRE151,ZZE150..RHD200611-201002

main90109-10167iNDE150,NRE150,ZRE151..6F200611-201304

31353HOLDER, CLUTCH PEDAL SPRING

main31353-26010iADE150200611-201304

31394ASPRING, PEDAL W/HOOK

main31394-12050iADE150..RHD200611-201002

main31394-12060iNDE150..RHD..DCR200611-201002

main31394-12070iADE150..LHD200611-201002

main31394-12080iNDE150..LHD..6F..DCRL200611-201304

31395AHOOK, PEDAL SPRING, NO.1

main31395-33020iADE150200611-201002

31453APIN, W/HOLE(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS)

main90249-08256iNDE150,ZRE151,ZZE150..LHD..5F200611-201304

L=36.5

31453BBUSH(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS)

main90386-08033iADE150..LHD200611-201304

55107ASUPPORT SUB-ASSY, CLUTCH PEDAL

main55107-12270iZRE151..RHD..D200611-201002

main55107-12280iZRE151,ZZE150..LHD..5F200611-200905

sub31301-12H01

main55107-12281iZRE151..LHD..6F..HTWVM200906-201304

main55107-12290iADE150,NDE150..RHD..DCRL200611-201002

main55107-12300iNDE150..LHD..6F;ADE150..LHD..DCRL200611-200905

sub31301-12H00

main55107-12301iNDE150..LHD..6F..DCR200906-201304

8401

9011908C42

main90119-08C42

9017910088

main90179-10088

9018508002

main90185-08002

9046816142

main90468-16142

20 parts on this diagram · 14 diagrams in section
