CLUTCH & RELEASE FORK

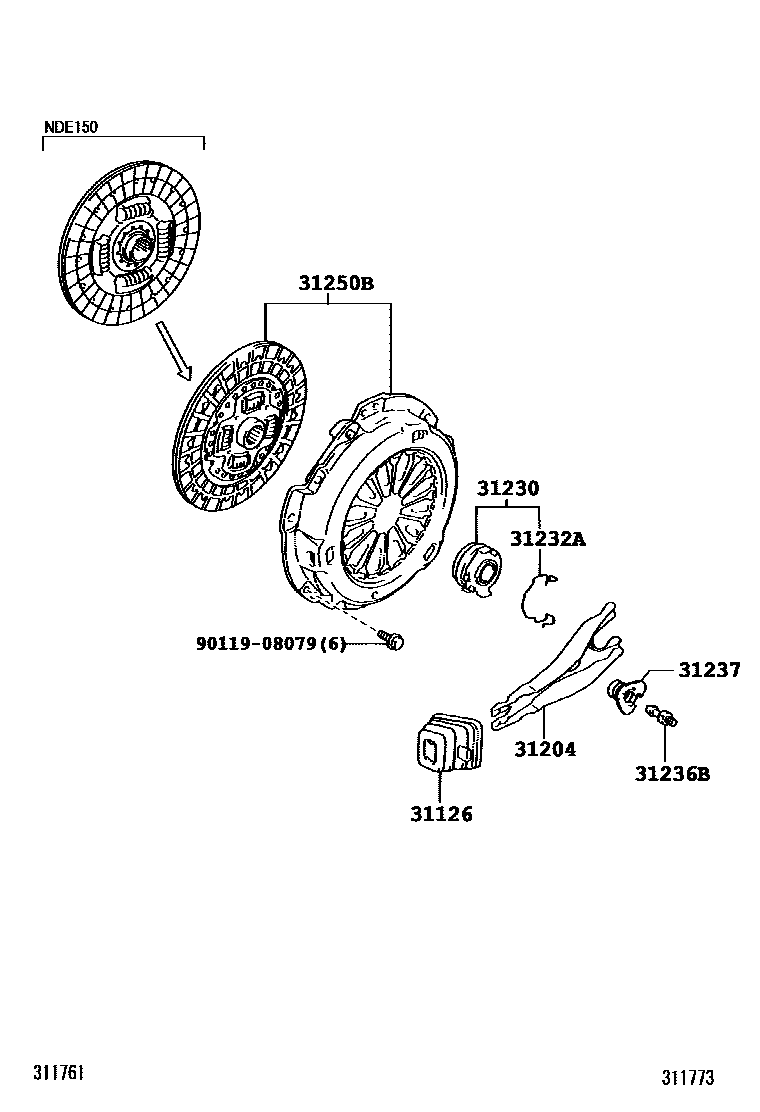

Parts diagram
31126BOOT, CLUTCH RELEASE FORK
main31126-12051i200611-200812
main31126-20080i200611-201002
main31126-64010i200611-200812
31204FORK SUB-ASSY, CLUTCH RELEASE
main31204-17010i200611-200812
main31204-20140i200611-201002
main31204-52010i200611-200812
main31204-64010i200611-200812
31230BEARING ASSY, CLUTCH RELEASE
main31230-12180i200611-200812
sub31230-12181
main31230-12191i200611-200812
main31230-17011i200611-200812
sub31230-17012
main31230-20200i200611-201002
31232ACLIP, RELEASE BEARING HUB
main31232-12070i200611-200812
main31232-12080i200611-200812
main31232-17010i200611-200812
main31232-20031i200611-201002
31236BSUPPORT, RELEASE FORK
main31236-12020i200611-200812
main31236-20080i200611-201002
31237BOOT, CLUTCH RELEASE FORK SUPPORT
main31237-12010i200611-200812
sub31237-12011
31250DISC ASSY, CLUTCH
main31250-12480i200812-201002
main31250-12500i200611-200812
main31250-12510i200611-200812
main31250-12520i200611-200812
sub31250-52110
main31250-12600i200812-201304
sub31250-12601
main31250-52120i200812-201009
sub31250-52210
main31250-52130i200812-201103
sub31250-52131
main31250-52131i201104-201304
sub31250-52132
main31250-52150i200812-201103
sub31250-52151
main31250-52151i201104-201304
sub31250-52152
main31250-52210i201010-201304
sub31250-52211
31250BDISC SET, ADJUSTABLE CLUTCH
main31250-19085i200703-200812
main31250-19095i200703-200812
main31250-69045i200611-200612
sub31250-69046
main31250-69046i200701-200702
sub31250-19095
main31250-69055i200611-200612
sub31250-69056
main31250-69056i200701-200702
sub31250-19085
9011908079
main90119-08079

9 parts on this diagram · 5 diagrams in section
