INJECTION NOZZLE

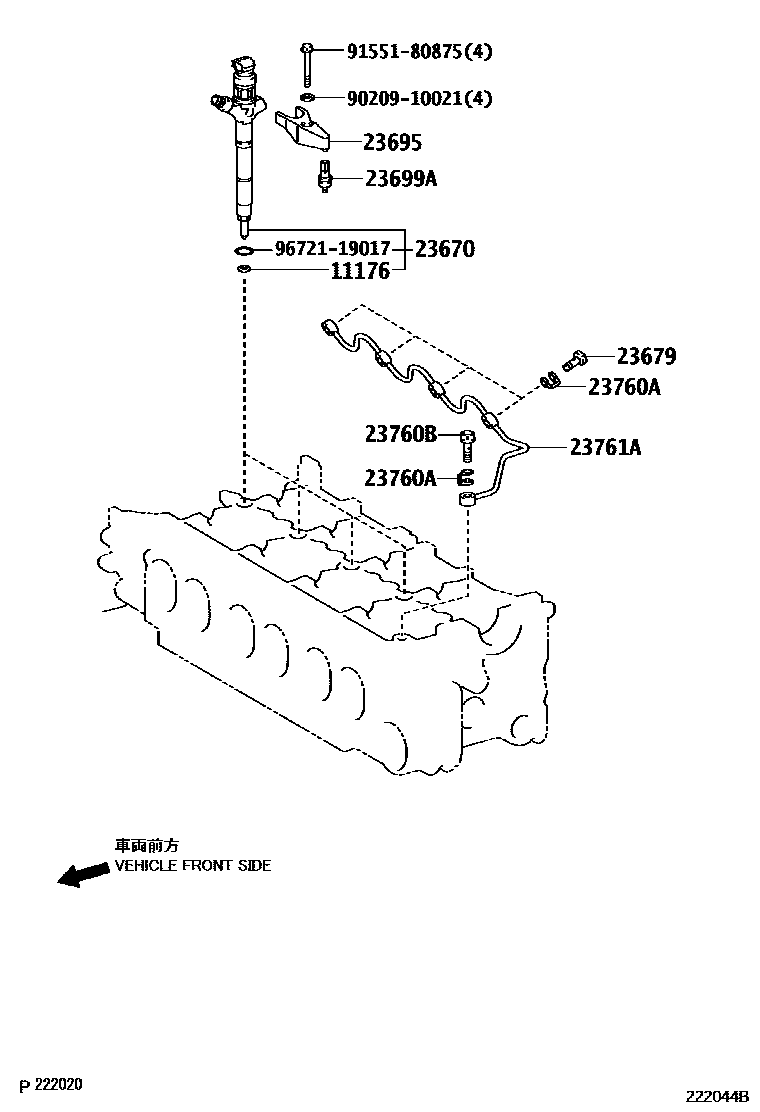

Parts diagram

11176SEAT, INJECTION NOZZLE

main11176-26010i200611-200811

main11176-26020i200901-201002

main11176-26030i200811-200901

main11176-33010i200611-201304

23670INJECTOR ASSY

main23670-09180i200611-200712

main23670-09190i200611-200712

main23670-09270i200712-200901

main23670-09280i200712-200901

main23670-09370i201103-201110

(L)

main23670-09390i201110-201112

(L)

main23670-09390i201112-201304

main23670-29115i200901-201002

main23670-39105i200611-200812

main23670-39325i200812-200911

main23670-39405i201110-201112

(J)

main23670-39415i201004-201110

(J)

main23670-39415i200911-201004

23679SCREW, INJECTOR FOLLOW

main23679-0R010i200611-200901

main23679-26020i200901-201002

23695CLAMP, NOZZLE HOLDER, NO.1

main23695-0R010i200611-200705

main23695-0R011i200705-200707

main23695-0R012i200707-200901

main23695-0R021i200901-201002

TYPE A:REFER ILLUST.

main23695-26020i200901-201002

TYPE B:REFER ILLUST.

main23695-33010i200611-200812

main23695-33020i200812-201304

23699ASEAT, NOZZLE HOLDER CLAMP

main23699-26010i200611-200901

main23699-26021i200901-201002

TYPE A:REFER ILLUST.

main23699-26030i200901-201002

TYPE B:REFER ILLUST.

main23699-33010i200611-200812

main23699-33020i200812-201304

23760PIPE ASSY, NOZZLE LEAKAGE

main23760-0W010i201103-201112

(L)

main23760-0W010i201112-201304

main23760-33020i200611-200812

main23760-33030i200812-201004

main23760-33030i201004-201112

(J)

23760AGASKET

main90904-30008i200611-201002

23760BBOLT, UNION(FOR NOZZLE LEAKAGE PIPE)

main90401-08016i200611-200901

23761APIPE, NOZZLE LEAKAGE, NO.1

main23761-0R011i200611-200704

main23761-0R011i200704-200901

(L)

main23761-0R040i200901-201002

(L)

main23761-26010i200704-200901

(J)

main23761-26030i200901-201002

(J)

9020910021

main90209-10021

9155180875

main91551-80875

9672119017

main96721-19017

12 parts on this diagram · 5 diagrams in section
