STARTER

0001 112V 2.0KW 0002 112V 0.8KW,1.0KW 0003 112V 1.4KW,2.0KW 0004 112V 0.8KW,1.0KW 0005 112V 1.3KW 0006 112V 1.6KW 0007 112V 2.0KW 0008 112V 0.8KW,1.0KW 0009 112V 1.6KW

28021CLUTCH SUB-ASSY, STARTER CENTER BEARING

main28021-0G040i1ADFTV..ADE150200611-200701

main28021-0R010i1ADFTV..ADE150200701-201002

main28021-21060i1ZRFE..ZRE151..4FC;1ZRFE..ZRE151..6F..N201209-201304

SUB COLD AREA SPEC

main28021-21060i1ZRFE..ZRE151..6F..D201209-201304

COLD AREA SPEC

main28021-33090i1NDTV..NDE150..DCRL200812-201106

main28021-33100i1NDTV..NDE150201106-201304

main28021-70020i1ZRFE..ZRE151..4FC;1ZRFE..ZRE151..6F..N201101-201304

28100STARTER ASSY

main28100-0G040i1ADFTV..ADE150200611-200612

12V 2.0KW

sub28100-0R010

main28100-0R010i1ADFTV..ADE150200701-201002

12V 2.0KW

sub28100-0R030

main28100-22030i4ZZFE..ZZE150200611-200812

12V 0.8KW

sub28100-22031

main28100-33070i1NDTV..NDE150200611-200812

12V 1.4KW

sub28100-33071

main28100-33110i1NDTV..NDE150200812-201106

12V 1.6KW

main28100-33120i1NDTV..NDE150201106-201304

12V 2.0KW

sub28100-33121

main28100-37020i1ZRFE..ZRE151200611-200906

12V 0.8KW

sub28100-37021

main28100-37021i1ZRFE..ZRE151..4FC;1ZRFE..ZRE151..6F..N200907-201304

12V 0.8KW

main28100-37031i1ZRFE..ZRE151..6F..D201106-201209

12V 1.0KW

sub28100-37032

main28100-37110i1ZRFE..ZRE151..4FC;1ZRFE..ZRE151..6F..N201209-201304

12V 1.3KW,COLD AREA SPEC

main28100-37110i1ZRFE..ZRE151..4FC;1ZRFE..ZRE151..6F..N201209-201304

12V 1.3KW,SUB COLD AREA SPEC

main28100-37110i1ZRFE..ZRE151..4FC;1ZRFE..ZRE151..6F..N201209-201304

12V 1.3KW

main28100-47120i1NRFE..NRE150200812-200906

12V 0.8KW

sub28100-47121

main28100-47121i1NRFE..NRE150200907-201106

12V 0.8KW

sub28100-47122

main28100-47131i1NRFE..NRE150201106-201304

12V 1.0KW

sub28100-47132

28110HOUSING ASSY, STARTER DRIVE

main28110-0G040i1ADFTV..ADE150200611-200701

main28110-0R010i1ADFTV..ADE150200701-201002

main28110-33110i1NDTV..NDE150..LHD..DCR200812-201004

main28110-37040i1ZRFE..ZRE151..6F..D201209-201304

SUB COLD AREA SPEC

main28110-37040i1ZRFE..ZRE151..4FC;1ZRFE..ZRE151..6F..N201209-201304

COLD AREA SPEC

28114PIN, STARTER DRIVE LEVER SET

main28113-0G020i1ADFTV..ADE150200611-200701

main28114-0R010i1ADFTV..ADE150200701-201002

main28114-21060i1ZRFE..ZRE151..6F..D201209-201304

COLD AREA SPEC

main28114-21060i1ZRFE..ZRE151..6F..D201209-201304

SUB COLD AREA SPEC

28117ASEAL, RUBBER

main28117-0G020i1ADFTV..ADE150200611-200701

main28117-37050i1NDTV..NDE150..DCRL200812-201004

28120YOKE ASSY, STARTER

main28120-0G020i1ADFTV..ADE150200611-200701

main28120-28080i1ZRFE..ZRE151..4FC;1ZRFE..ZRE151..6F..N201209-201304

SUB COLD AREA SPEC

main28120-28080i1ZRFE..ZRE151..4FC;1ZRFE..ZRE151..6F..N201209-201304

COLD AREA SPEC

main28120-33110i1NDTV..NDE150..LHD..DCR200812-201106

main28120-38020i1ADFTV..ADE150200701-201304

main28120-40130i1NRFE..NRE150201106-201304

main28120-47120i1ZRFAE..ZRE151..D;1ZRFAE..ZRE151..LHD..N200812-201304

main28120-55050i1NDTV..NDE150200611-200812

main28120-70020i1ZRFE,4ZZFE..ZRE151,ZZE150200611-200907

28130FRAME ASSY, STARTER COMMUTATOR END

main28130-0G040i1ADFTV..ADE150200611-200701

main28130-0R010i1ADFTV..ADE150200701-201002

main28130-33110i1NDTV..NDE150..LHD..DCR200812-201004

main28130-37120i1ZRFE..ZRE151..4FC;1ZRFE..ZRE151..6F..N201209-201304

SUB COLD AREA SPEC

main28130-37120i1ZRFE..ZRE151..6F..D201209-201304

COLD AREA SPEC

28150SWITCH ASSY, MAGNET STARTER

main28150-22100i1ZRFE..ZRE151..6F..D200611-201304

main28150-37020i1NDTV..NDE150..LHD..DCR200701-201304

main28150-40090i1NRFE..NRE150..LHD200812-201304

main28150-46220i1NDTV..NDE150200611-200812

main28150-70030i4ZZFE..ZZE150200611-200706

sub28150-22100

28160ARMATURE ASSY, STARTER

main28160-0G020i1ADFTV..ADE150200611-201002

main28160-21060i1ZRFE..ZRE151..4FC;1ZRFE..ZRE151..6F..N201209-201304

SUB COLD AREA SPEC

main28160-21060i1ZRFE..ZRE151..6F..D201209-201304

COLD AREA SPEC

main28160-33090i1NDTV..NDE150..DCRL200812-201106

main28160-38020i1NDTV..NDE150201106-201304

main28160-70021i1ZRFAE..ZRE151..D;1ZRFAE..ZRE151..LHD..N200611-201304

main28160-70050i1ZRFE..ZRE151..6F..D201106-201304

main28160-74070i1NDTV..NDE150200611-200812

28177PLATE(FOR STARTER ARMATURE)

main28177-0G020i1ADFTV..ADE150200611-201002

main28177-28040i1ZRFE..ZRE151..6F..D201209-201304

COLD AREA SPEC

main28177-28040i1ZRFE..ZRE151..4FC;1ZRFE..ZRE151..6F..N201209-201304

SUB COLD AREA SPEC

main28177-37050i1NDTV..NDE150..LHD..DCR200812-201004

28255GEAR, PLANET

main28255-0G040i1ADFTV..ADE150200611-201002

main28255-28040i1ZRFE..ZRE151..6F..D201209-201304

SUB COLD AREA SPEC

main28255-28040i1ZRFE..ZRE151..6F..D201209-201304

COLD AREA SPEC

main28255-33090i1NDTV..NDE150..LHD..DCR200812-201004

3302

9006800018

main90068-00018

9006804028

main90068-04028

9006805004

main90068-05004

9006805005

main90068-05005

9009900271

main90099-00271

9009905129

main90099-05129

9009905289

main90099-05289

9011912042

main90119-12042

9017908204

main90179-08204

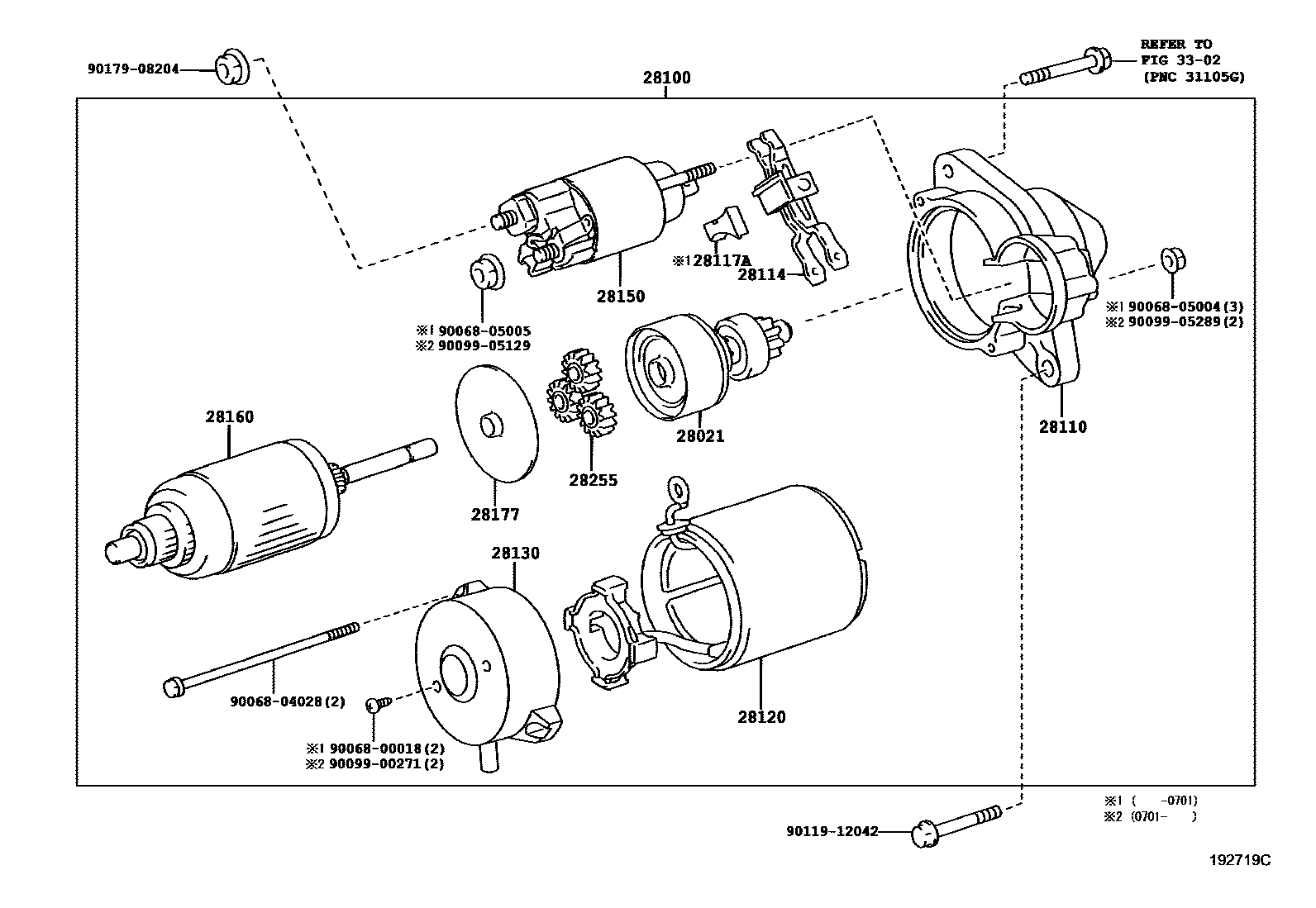

21 parts on this diagram · 9 diagrams in section
