VACUUM PIPING

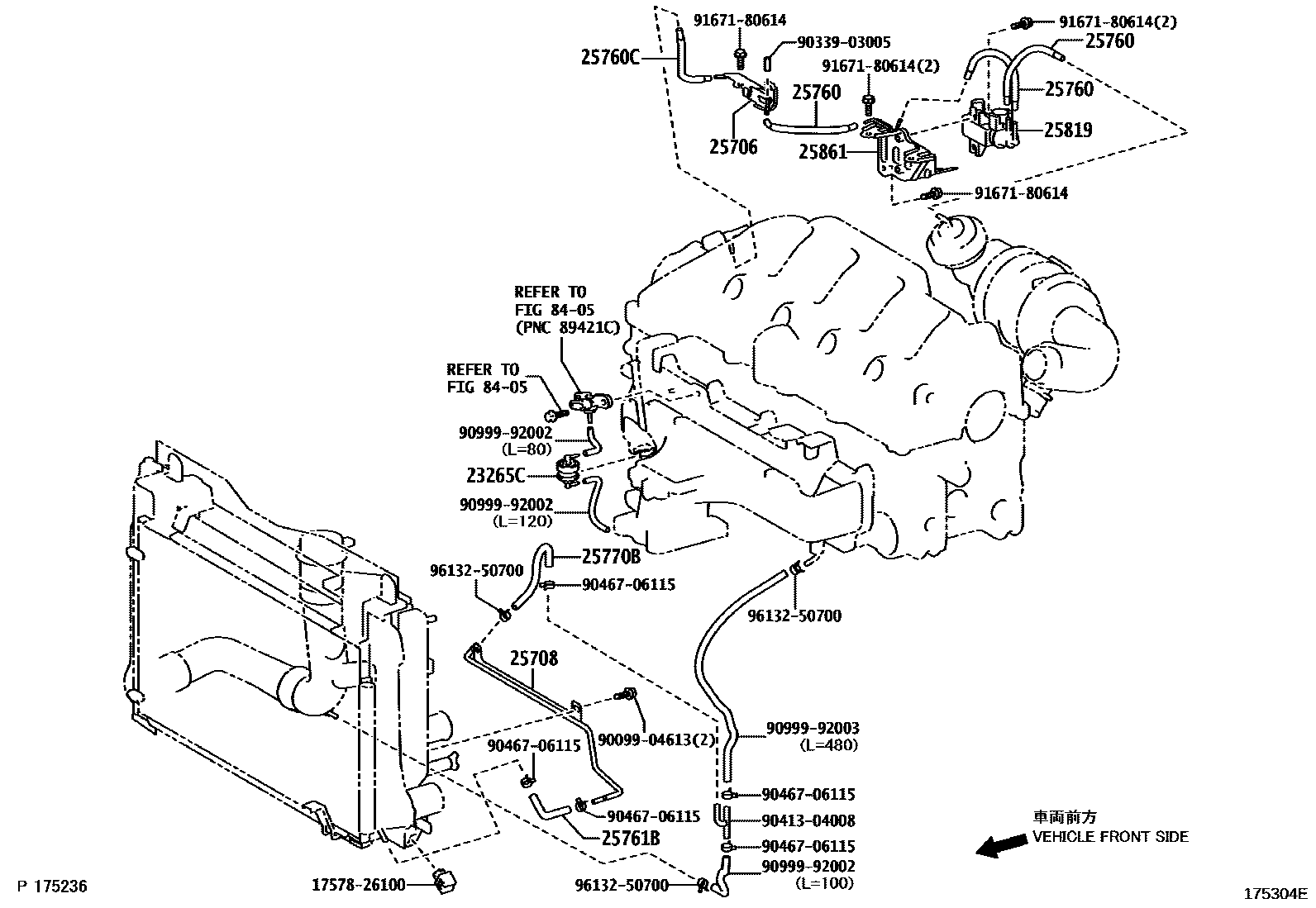

Parts diagram

23265FILTER, GAS, NO.1

main90917-11022i¥1,020200812-201002

main90917-11044i¥910200901-201002

23265CFILTER, GAS

main90917-11036i¥910200611-200901

25706PIPE SUB-ASSY, VACUUM TRANSMITTING, NO.1

main25706-26010i¥2,650200611-201002

main25706-33080i¥1,150201110-201304

25708PIPE SUB-ASSY, VACUUM TRANSMITTING, NO.3

main25736-0R020i200901-201002

main25736-26030i200611-200901

25760HOSE ASSY, VACUUM TRANSMITTING

main25760-26021i¥800200611-201002

main25760-33080i¥1,620200812-201304

25760CHOSE ASSY, VACUUM TRANSMITTING, NO.3

main25760-26120i200611-201002

25761BHOSE, VACCUM TRANSMITTING, NO.1

main25761-26030i200611-201002

main25761-33060i¥1,430201110-201304

main25761-37010i¥3,400200611-200909

main25761-37011i¥1,690200910-201304

25770HOSE ASSY, VACUUM TRANSMITTING, NO.2

main25770-26020i¥1,360200611-201002

main25770-33020i¥1,540200812-201304

25770BHOSE ASSY, VACUUM TRANSMITTING, NO.3

main25770-26071i200611-200901

25819VALVE ASSY, VACUUM REGULATING

main25819-0R011i200611-201002

25861BRACKET, VACUUM SWITCHING VALVE

main25861-26010i¥1,470200611-200901

main25861-26040i200611-200901

main25861-26070i200901-201002

main25861-33020i¥320201110-201304

main25861-37010i¥270200812-201002

8405

1757826100CLAMP, PIPE

main17578-26100

9009904613

main90099-04613¥0

9033903005

main90339-03005¥110

9041304008

main90413-04008¥460

9046706115

main90467-06115¥120

9099992002

main90999-92002¥460

9099992003

main90999-92003¥520

9167180614

main91671-80614¥60

9613250700

main96132-50700¥110

21 parts on this diagram · 12 diagrams in section
