EXHAUST PIPE

0001 1 0002 1 0003 1 0004 1 0005 1

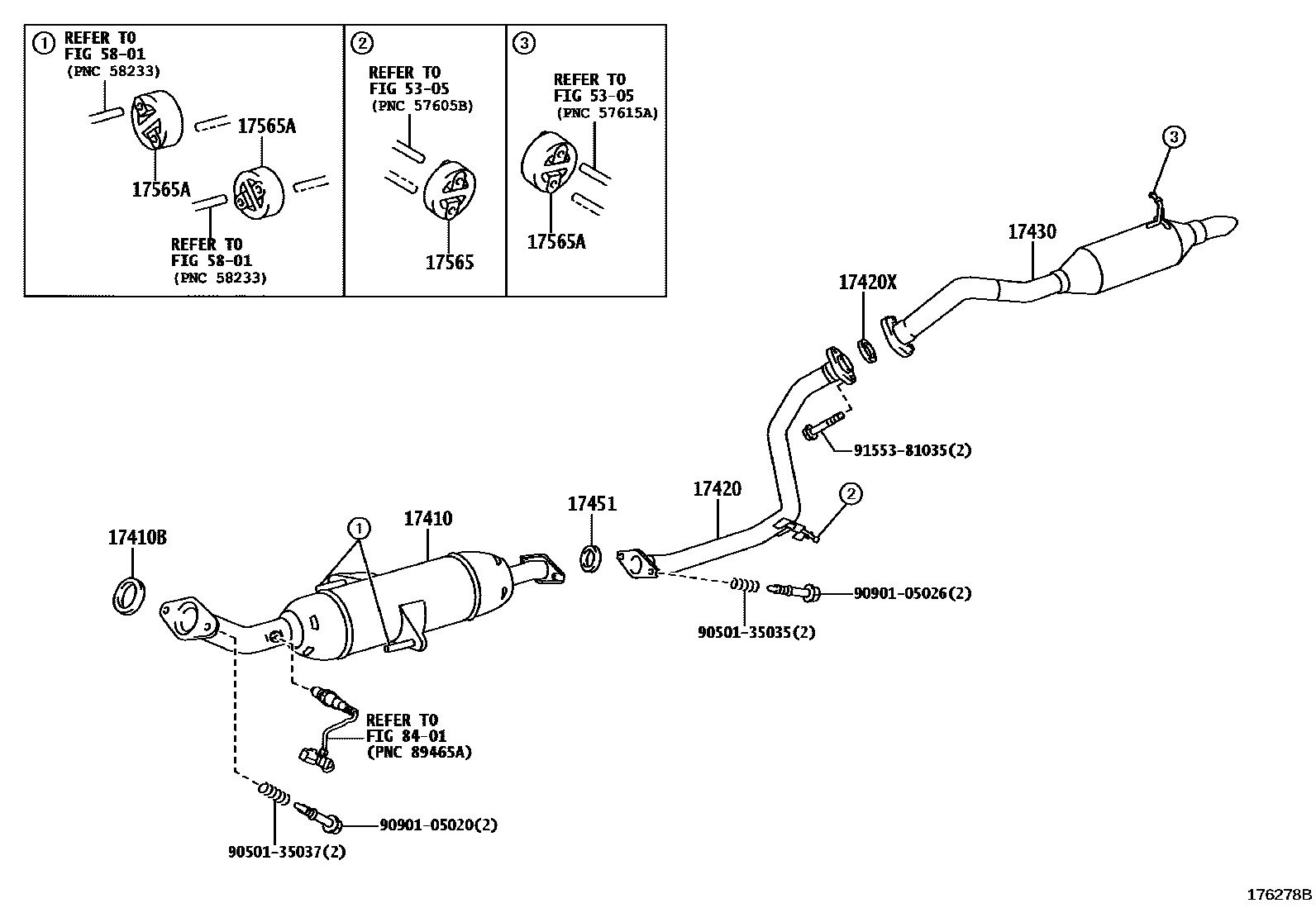

17410PIPE ASSY, EXHAUST, FRONT

main17410-22560i4ZZFE..ZZE150200611-200812

*114=TOYOTA/GH1/Y

main17410-22570i1ZRFE..ZRE151200611-201304

*114=*563

main17410-26370i1ADFTV..ADE150..DCR200611-200901

*114=TOYOTA/AD1/Y

main17410-26380i1ADFTV..ADE150..DCRL200611-200901

*114=TOYOTA/AD2/Y

main17410-26480i1ADFTV..ADE150200901-201002

*114=TOYOTA/AE9/Y

main17410-33140i1NDTV..NDE150200611-200812

main17410-33150i1NDTV..NDE150200812-201304

main17410-37340i1ZRFAE..ZRE151200812-201004

*114=*389

main17410-47060i1NRFE..NRE150200812-201004

*114=TOYOTA/CD9/Y

main17410-47110i1NRFE..NRE150201004-201304

*114=TOYOTA/CE9/Y

17410BGASKET, EXHAUST PIPE

main17451-22070i4ZZFE..ZZE150200611-200812

main17451-28040i1NDTV,1ZRFE..NDE150,ZRE151200611-201304

sub17451-28041

main17451-47020i1NRFE..NRE150..RHD200812-201304

sub17451-21070

17420PIPE ASSY, EXHAUST, CENTER

main17420-22110i1ZRFE..ZRE151200611-201304

main17420-22120i1ADFTV..ADE150200611-201304

main17420-47070i1NRFE..NRE150..LHD200812-201004

RUSSIA SPEC, W(EURO 4 REGULATION)&COLD AREA SPEC

main17420-47070i1NRFE..NRE150200812-201004

RUSSIA SPEC, W/O(EURO 4 REGULATION)&COLD AREA SPEC

main17420-47070i1NRFE..NRE150201004-201304

17420XGASKET, EXHAUST PIPE, CENTER

main90917-06089i1N#,1ZRFE..NDE150,NRE150,ZRE151..LHD..(DCR,HTWC)200611-201304

17430PIPE ASSY, EXHAUST, TAIL

main17430-22530i4ZZFE..ZZE150200611-200812

main17430-26750i1ADFTV..ADE150200611-201002

main17430-33100i1NDTV..NDE150200611-201304

main17430-37170i1NRFE..NRE150..RHD;1ZRFAE..ZRE151..RHD..N200611-201304

17451GASKET, EXHAUST PIPE

main17451-28030i1ADFTV,1NDTV,1ZRFE,4ZZFE..ADE150,NDE150,ZRE151,ZZE150200611-200712

sub17451-28031

main17451-28031i1NDTV,1ZRFE,4ZZFE..NDE150,ZRE151,ZZE150200801-201102

sub17451-28032

main17451-28032i1NDTV,1ZRFE..NDE150,ZRE151201103-201304

main90917-06089i1NRFE..NRE150..RHD200812-201304

17565SUPPORT, EXHAUST PIPE, NO.5

main17565-22030i1NDTV,1ZRFE,4ZZFE..NDE150,ZRE151,ZZE150200611-201304

17565ASUPPORT, EXHAUST PIPE, NO.4

main17565-22040i1NDTV,1ZRFE,4ZZFE..NDE150,ZRE151,ZZE150200611-201304

5305

5801

8401

9050135035

main90501-35035

9050135037

main90501-35037

9090105020

main90901-05020

9090105026

main90901-05026

9155381035

main91553-81035

16 parts on this diagram · 5 diagrams in section
