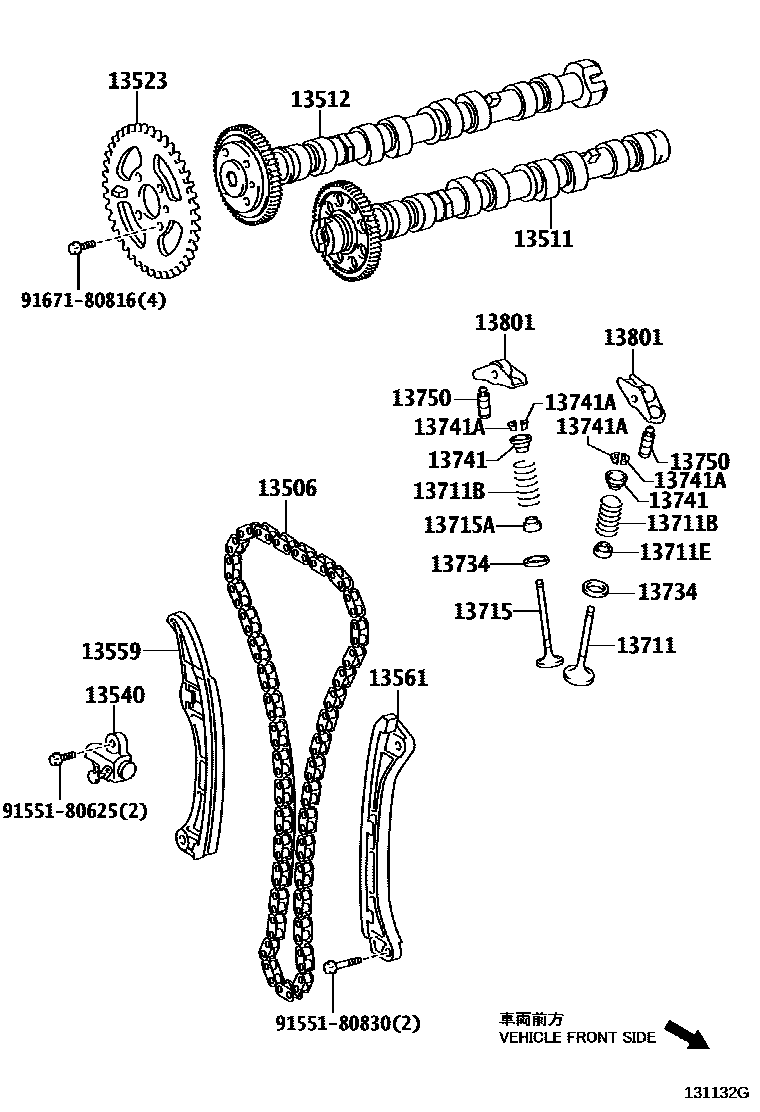

CAMSHAFT & VALVE
13506CHAIN SUB-ASSY
13540TENSIONER ASSY, CHAIN, NO.1
13711VALVE, INTAKE
13711BSPRING, COMPRESSION(FOR INNER)
13711ESEAL, INTAKE VALVE STEM OIL
(J)
(L)
13715VALVE, EXHAUST
13715ASEAL, EXHAUST VALVE STEM OIL
(J)
(L)
13734SEAT, VALVE SPRING
13741RETAINER, VALVE SPRING
13741ALOCK, VALVE SPRING RETAINER
13750ADJUSTER ASSY, VALVE LASH
(J)
13801ARM SUB-ASSY, VALVE ROCKER, NO.1
(L)
(J)
9155180625
9155180830
9167180816
20 parts on this diagram · 7 diagrams in section
