VENTILATION HOSE

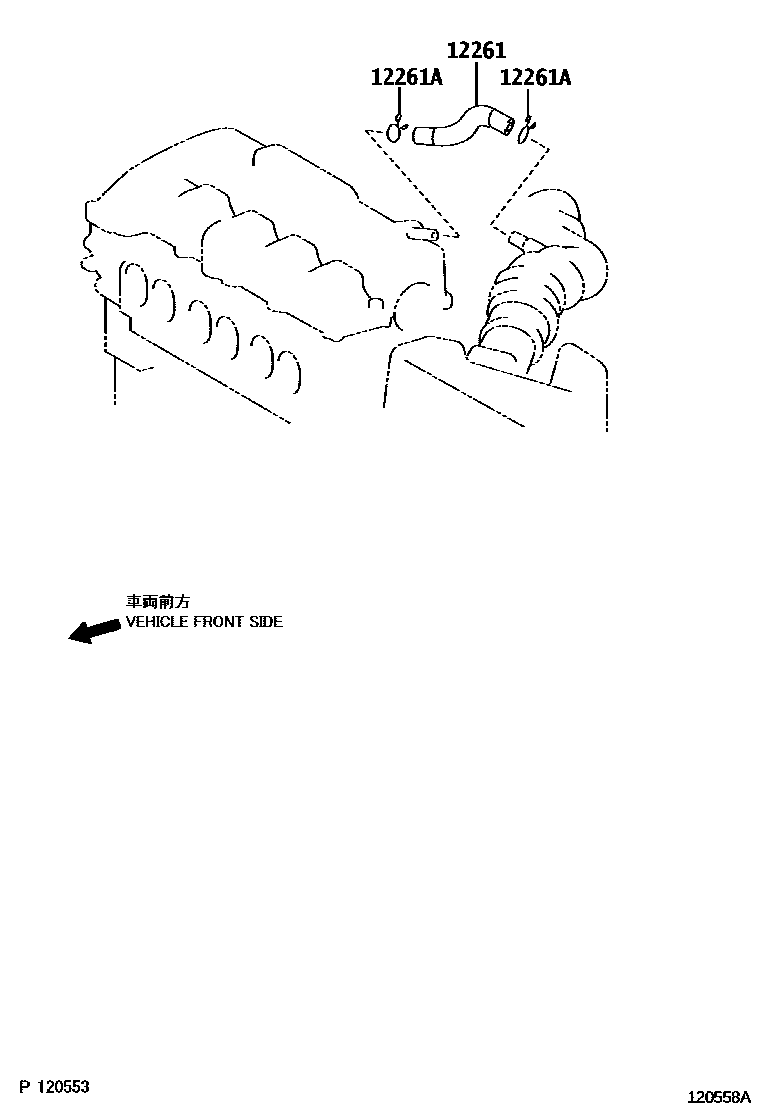

Parts diagram

12261HOSE, VENTILATION

main12261-0D040i200611-200812

(L)

main12261-0R020i200611-201002

main12261-22050i200611-200812

(J)

main12261-33060i200611-200812

main12261-33120i200812-201304

main12261-37040i200611-201304

main12261-37050i200812-201002

main12261-37080i201003-201004

main12261-37080i201004-201212

*119

main12261-47010i200812-201304

12261ACLIP OR CLAMP(FOR VENTILATION HOSE)

main90466-22005i201111-201304

*119,NO.2

main90466-23003i200611-201002

main90467-15120i200611-201304

NO.1

main90467-16035i200812-201304

main90467-20009i200611-200812

main90467-21152i200611-200812

main90467-22010i200611-200809

NO.2

main90467-23002i200809-201002

NO.2

main90467-23002i201004-201111

*119,NO.2

2 parts on this diagram · 6 diagrams in section
