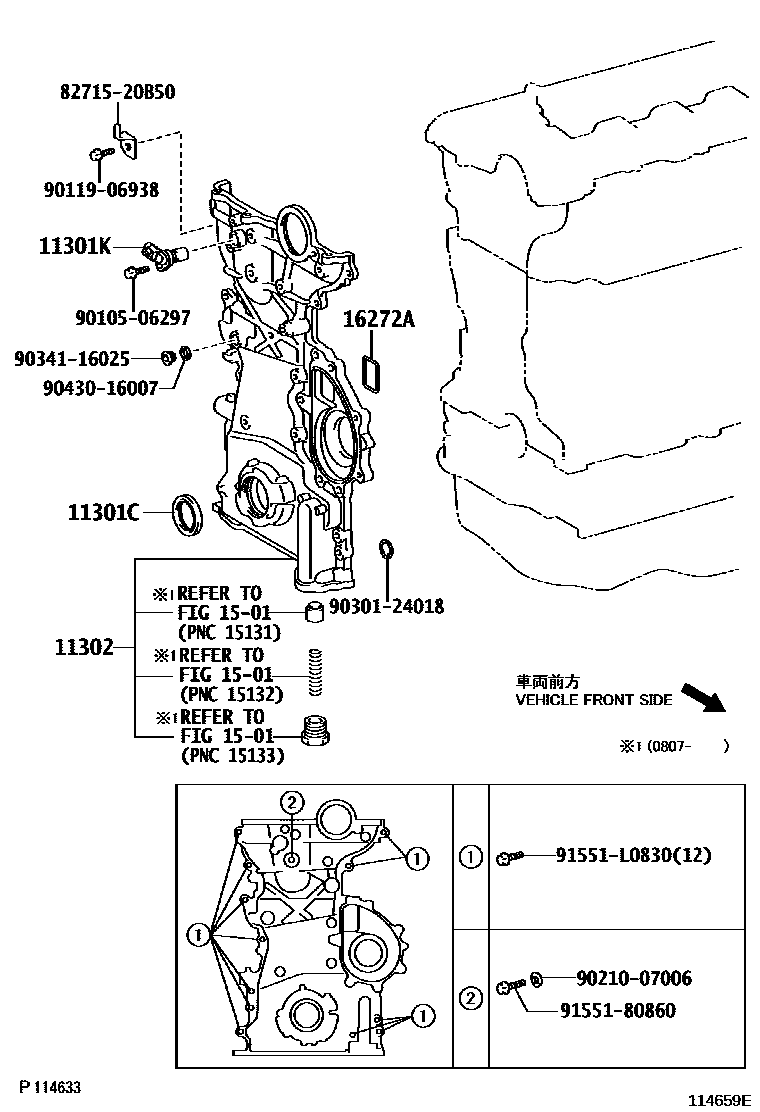

TIMING GEAR COVER & REAR END PLATE

0001 1 0002 1 0003 1 0004 1 0005 1

11301CSEAL, OIL(FOR TIMING GEAR CASE OR TIMING CHAIN CASE)

main90311-48030i1ADFTV..ADE150200807-201002

(J)

main90311-W0005i1ADFTV..ADE150200611-200807

sub90311-W0009

main90311-W0009i1ADFTV..ADE150200807-201002

(L)

sub90311-W0019

11301KSENSOR, CRANK POSITION

main90919-05029i1ADFTV..ADE150200611-201002

main90919-05030i4ZZFE..ZZE150200611-200812

main90919-05073i1NRFE..NRE150..RHD200812-201304

11302COVER SUB-ASSY, TIMING CHAIN OR BELT

main11302-0R020i1ADFTV..ADE150200807-201002

(L)

main11302-26020i1ADFTV..ADE150200611-200807

main11302-26030i1ADFTV..ADE150200807-201002

(J)

main11310-33010i1NDTV..NDE150200812-201009

sub11310-33040

sub13559-33021

main11310-33011i1NDTV..NDE150201009-201304

sub11310-33012

main11310-37010i1ZRFE..ZRE151201004-201201

*119

sub11310-37011

main11310-37010i1ZRFE..ZRE151200611-201002

sub11310-37011

main11310-37011i1ZRFE..ZRE151201201-201304

*119

main11310-47010i1NRFE..NRE150200812-200907

sub11310-47011

main11310-47011i1NRFE..NRE150200907-201304

sub11310-47012

sub91552-81050

sub91671-10825

main11321-0D030i4ZZFE..ZZE150200611-200812

(L)

main11321-22021i4ZZFE..ZZE150200611-200812

(J)

1501

16272AGASKET, WATER PUMP NO.2

main16272-26010i1ADFTV..ADE150200611-201002

8271520B50BRACKET,WIRING HARNESS CLAMP

main82715-20B50

9010506297

main90105-06297

9011906938

main90119-06938

9021007006

main90210-07006

9030124018

main90301-24018

9034116025

main90341-16025

9043016007

main90430-16007

9155180860

main91551-80860

91551L0830

main91551-L0830

14 parts on this diagram · 5 diagrams in section
