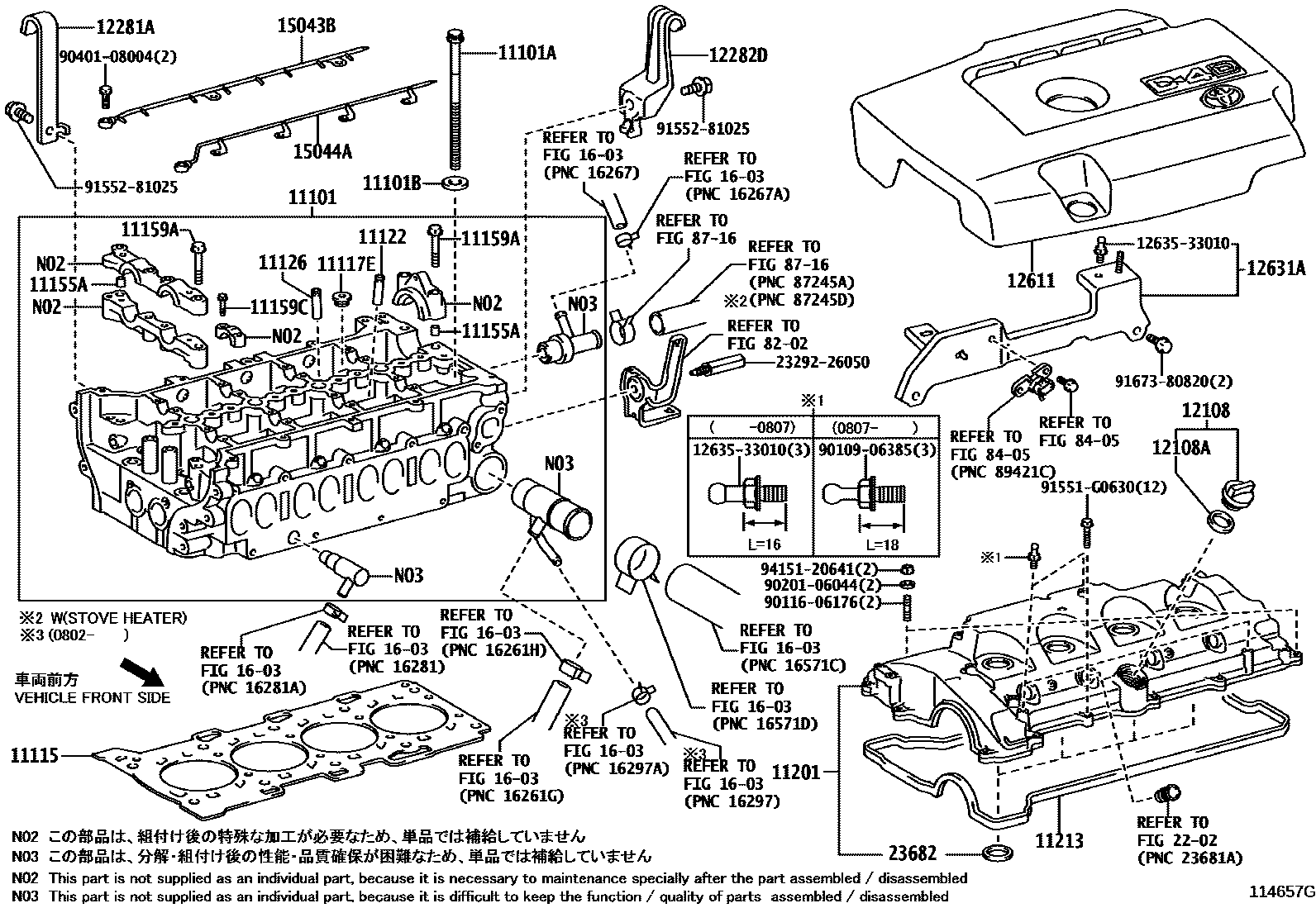

CYLINDER HEAD
11101ABOLT(FOR CYLINDER HEAD SET)
11101BWASHER, PLATE(FOR CYLINDER HEAD SET)
11115GASKET, CYLINDER HEAD
MARKA,REFER REPAIR MANUAL
MARKB,REFER REPAIR MANUAL
MARKC,REFER REPAIR MANUAL
MARKD,REFER REPAIR MANUAL
MARKE,REFER REPAIR MANUAL
MARKA,REFER REPAIR MANUAL
MARKB,REFER REPAIR MANUAL
MARKC,REFER REPAIR MANUAL
MARKD,REFER REPAIR MANUAL
MARKE,REFER REPAIR MANUAL
11117EPLUG, W/HEAD STRAIGHT SCREW, NO.1
11122BUSH, INTAKE VALVE GUIDE
STD
STD
O/S 0.05
O/S 0.05
O/S 0.05
O/S 0.05
11126BUSH, EXHAUST VALVE GUIDE
STD
STD
O/S 0.05
O/S 0.05
O/S 0.05
11155APIN, RING W/HEAD
11159ABOLT(FOR HEAD TO CAMSHAFT BEARING CAP)
NO.1
NO.1
NO.2
NO.2
11159CBOLT(FOR HEAD TO CAMSHAFT BEARING CAP)
11201COVER SUB-ASSY, CYLINDER HEAD
(L)
(J)
(J)
11213GASKET, CYLINDER HEAD COVER
12108CAP SUB-ASSY, OIL FILLER
(J)
12108AGASKET(FOR OIL FILLER CAP)
(J)
12281AHANGER, ENGINE, NO.1
NO.1
NO.2
W/O(PAINTED)
12282DHANGER, ENGINE, NO.2
W/O(PAINTED)
12631ABRACKET, ENGINE COVER
(L)
(J)
15043BPIPE SUB-ASSY, CAMSHAFT OIL DELIVERY, RH
15044APIPE SUB-ASSY, CAMSHAFT OIL DELIVERY, LH
1603
2202
23682GASKET, NOZZLE HOLDER
8202
8405
8716
1263533010JOINT, ENGINE COVER
2329226050PROTECTOR, FUEL HOSE
main23292-26050
9010906385
9011606176
9020106044
9040108004
91551G0630
9155281025
9167380820
9415120641
36 parts on this diagram · 13 diagrams in section
