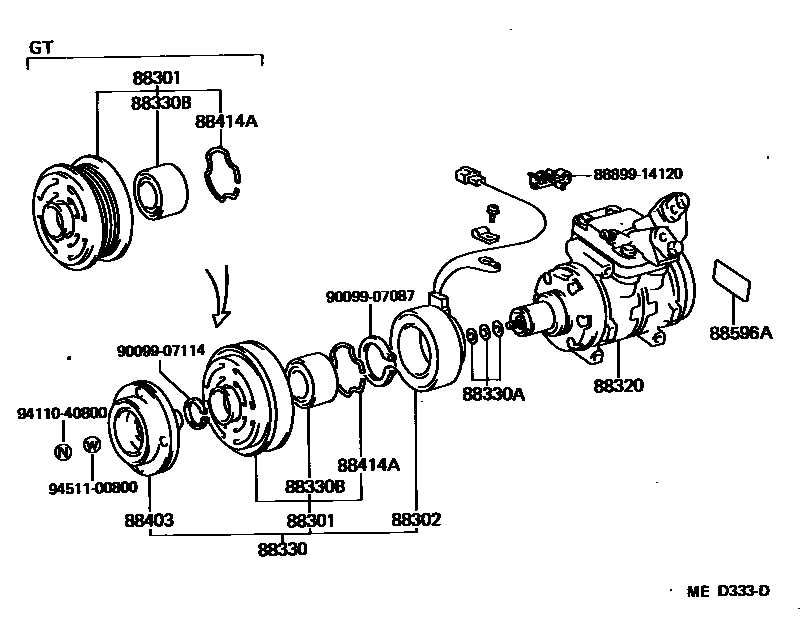

HEATING & AIR CONDITIONING - COMPRESSOR

0001 1 0002 1 0003 1

88301ROTOR SUB-ASSY, MAGNET CLUTCH

main88412-12110iAE86..GT..(GEN,ME)198308-198707

main88412-14030iAE86..SR..GEN198305-198704

88302STATOR SUB-ASSY, MAGNET CLUTCH

main88411-14060iAE86..SR..GEN198305-198704

main88411-22070iAE86..GT..(GEN,ME)198308-198505

main88411-22100iAE86..GT..(GEN,ME)198505-198707

88320COMPRESSOR ASSY, COOLER

main88320-12280iAE86..LHD..(GEN,ME)198305-198505

MAKER OPTION

main88320-12300iAE86..ARL,GEN,ME198305-198505

DEALER OPTION

main88320-12420iAE86..SR198505-198704

DEALER OPTION

main88320-12430iAE86..SR198505-198704

MAKER OPTION

main88320-12440iAE86..GT..(GEN,ME)198505-198707

MAKER OPTION

main88320-12450iAE86..GT..GEN198505-198704

DEALER OPTION

88330CLUTCH ASSY, MAGNET

main88410-12150iAE86..GT..(GEN,ME)198308-198505

main88410-12200iAE86..GT..(GEN,ME)198505-198707

main88410-14110iAE86..SR..GEN198305-198704

88330AWASHER (FOR MAGNET CLUTCH)

main88335-12050iAE86..GEN,ME198505-198707

88330BBEARING, MAGNET CLUTCH

main90099-10133iAE86..GT..(GEN,ME)198308-198707

main90099-10135iAE86..SR..GEN198305-198704

88403HUB SUB-ASSY, MAGNET CLUTCH

main88403-12030iAE86..GT..(GEN,ME)198608-198707

main88403-12040iAE86..SR198608-198704

main88403-14030iAE86..GT..(GEN,ME)198308-198608

sub88403-12030

main88403-14040iAE86..SR..GEN198305-198608

88414ARING, SHIELD SNAP

main90099-07094iAE86..ARL,GEN,ME198305-198505

88596APLATE, CAUTION

main88356-12010iAE86..GEN,ME198608-198707

8889914120COVER, EVAPORATOR

main88899-14120

9009907087

main90099-07087

9009907114

main90099-07114

9411040800

main94110-40800

9451100800

main94511-00800

14 parts on this diagram · 3 diagrams in section
