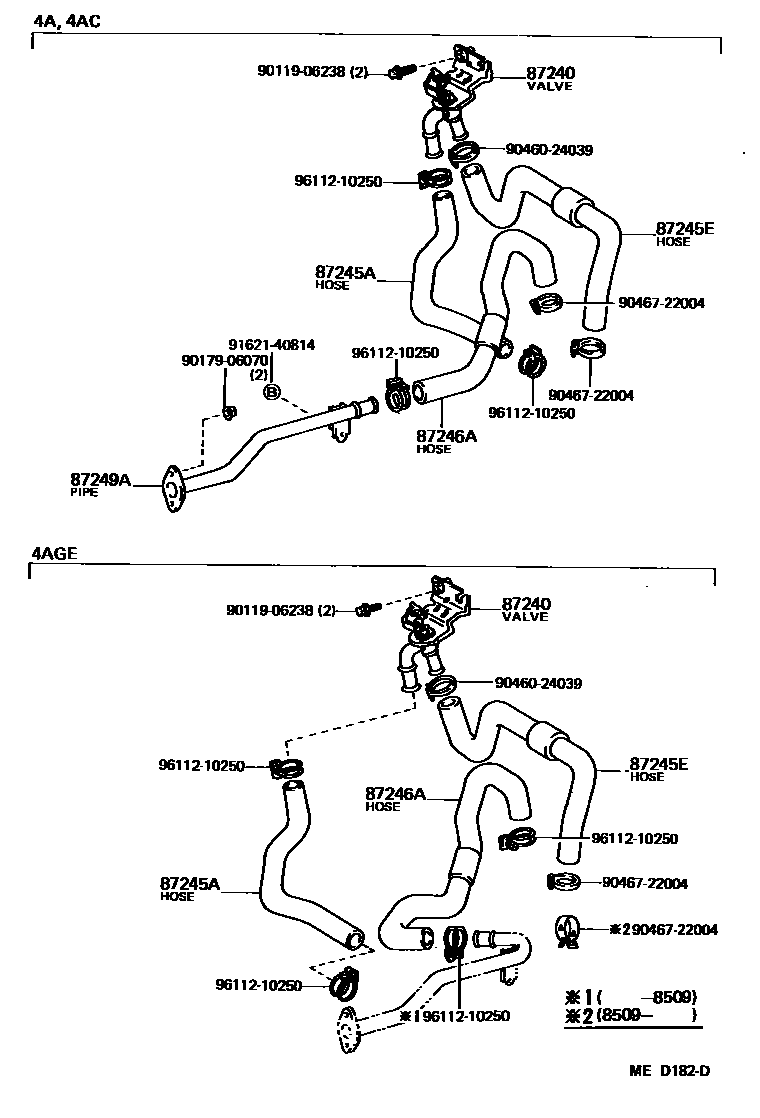

HEATING & AIR CONDITIONING - WATER PIPING

0001 1 0002 1 0003 1

87240VALVE ASSY, HEATER WATER

main87240-12210iAE86¥3,240198305-198707

87245AHOSE, HEATER WATER, INLET A

main87245-12800iAE86¥1,190198305-198707

87245EHOSE, HEATER WATER, INLET E

main87245-12770iAE86..RHD¥1,890198305-198704

main87245-12780iAE86..LHD¥1,190198305-198707

87246AHOSE, HEATER WATER, OUTLET A

main87245-12790iAE86..RHD..GT¥2,110198308-198704

main87245-12810iAE86..RHD..SR¥1,670198305-198704

main87245-12820iAE86..LHD..EUG;AE86..LHD..GT..(GEN,ME)¥1,340198308-198505

main87245-12830iAE86..LHD..SR¥1,980198305-198409

sub87245-1A150¥2,000

main87245-1A050iAE86..LHD..SR..GEN¥1,420198305-198704

W/O HEATER

main87245-1A150iAE86..SDZ¥2,000198409-198704

main87245-1A150iAE86..SDZ;AE86..2D..EUG¥2,000198504-198505

FRG SPEC

87249APIPE, HEATER WATER OUTLET, A

main87208-12012iAE86..RHD..SR198305-198704

main87208-12020iAE86..LHD..SR198305-198704

9011906238

main90119-06238¥140

9017906070

main90179-06070¥180

9046024039

main90460-24039

9046722004

main90467-22004¥330

9162140814

main91621-40814¥90

9611210250

main96112-10250¥240

11 parts on this diagram · 3 diagrams in section
