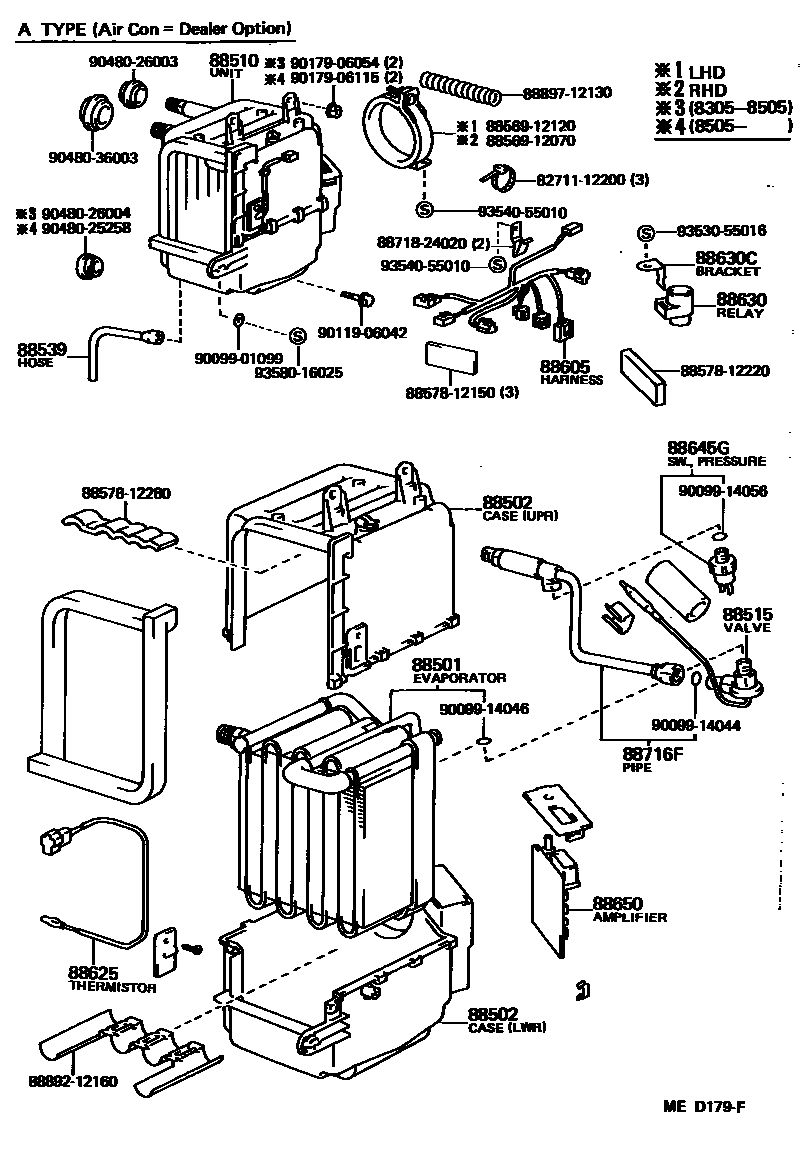

HEATING & AIR CONDITIONING - COOLER UNIT

0001 1 0002 1

88501EVAPORATOR SUB-ASSY, COOLER, NO.1

main88501-12290iAE86..RHD..(ARL,GEN)198305-198311

main88501-12291iAE86..RHD..(ARL,GEN)198311-198505

sub88501-12292

main88501-12292iAE86..RHD..GEN198505-198603

sub88501-12293

main88501-12293iAE86..RHD..GEN198603-198704

main88501-12300iAE86..LHD..(GEN,ME)198305-198405

main88501-12301iAE86..LHD..(GEN,ME)198405-198603

sub88501-12302

main88501-12302iAE86..LHD..(GEN,ME)198603-198707

88502CASE SUB-ASSY, COOLING UNIT

main88502-12080iAE86..LHD..(GEN,ME)198505-198707

W/HEATER,UPR

main88502-12090iAE86..LHD..(GEN,ME)198505-198707

W/HEATER,LWR

88510UNIT ASSY, COOLER

main88510-12400iAE86..LHD..SR198305-198505

W/HEATER,B TYPE

main88510-12410iAE86..LHD..SR..GEN198305-198505

W/BOOST VENTILATOR,A TYPE

main88510-12411iAE86..LHD..SR198505-198704

W/HEATER

main88510-12430iAE86..RHD..SR198305-198311

sub88510-12431

main88510-12431iAE86..RHD..SR198311-198505

sub88510-12432

main88510-12432iAE86..RHD..SR198505-198704

main88510-12510iAE86..LHD..GT..(GEN,ME)198308-198405

W/HEATER,B TYPE

main88510-12511iAE86..LHD..GT..(GEN,ME)198405-198505

W/HEATER,B TYPE

main88510-12520iAE86..RHD..GT..GEN198308-198311

sub88510-12521

main88510-12521iAE86..RHD..GT..GEN198311-198505

sub88510-12522

main88510-12522iAE86..RHD..GT..GEN198505-198704

main88510-12530iAE86..LHD..GT..(GEN,ME)198308-198505

W/BOOST VENTILATOR,A TYPE

main88510-12531iAE86..LHD..GT..(GEN,ME)198505-198707

W/HEATER

sub88510-12530

main88510-12660iAE86..LHD..SR198505-198704

W/BOOST VENTILATOR

main88510-12680iAE86..LHD..GT..(GEN,ME)198505-198707

W/BOOST VENTILATOR

88515VALVE, COOLER EXPANSION

main88515-16030iAE86..ARL,GEN,ME198305-198405

sub88515-16031

main88515-16031iAE86..ARL,GEN,ME198405-198707

88539HOSE, COOLER UNIT DRAIN, NO.1

main88539-12070iAE86..ARL,GEN,ME198305-198707

88605HARNESS SUB-ASSY, COOLER WIRING, NO.1

main88605-12400iAE86..SR198505-198704

main88605-12400iAE86..LHD..SR..GEN198305-198505

W/HEATER

main88605-12410iAE86..LHD..SR..GEN198305-198704

W/BOOST VENTILATOR

main88605-12440iAE86..RHD..GT..GEN198308-198505

main88605-12460iAE86..RHD..SR198305-198505

main88605-12660iAE86..LHD..GT..(GEN,ME)198308-198405

W/HEATER

main88605-12661iAE86..LHD..GT..(GEN,ME)198405-198707

W/HEATER

main88605-12770iAE86..LHD..GT..(GEN,ME)198308-198405

W/BOOST VENTILATOR

main88605-12771iAE86..LHD..GT..(GEN,ME)198405-198707

W/BOOST VENTILATOR

main88605-1A140iAE86..RHD..GT..GEN198505-198707

88625THERMISTOR, COOLER, NO.1

main88625-12070iAE86..ARL,GEN,ME198305-198505

main88625-95A00iAE86..GEN,ME198505-198707

sub88625-28150

88630RELAY ASSY, COOLER

main88630-14030iAE86..LHD..GT..(GEN,ME)198405-198707

88630CBRACKET, COOLER RELAY

main88688-12380iAE86..LHD..GT..(GEN,ME)198405-198707

88645GSWITCH, PRESSURE

main88645-12020iAE86..ARL,GEN,ME198305-198707

88650AMPLIFIER ASSY, COOLER STABILIZER

main88650-10030iAE86..SR..(ARL,GEN)198305-198704

main88650-12210iAE86..GT..(GEN,ME)198308-198707

main88650-12440iAE86..LHD..GT..(GEN,ME)198505-198707

W/BOOST VENTILATOR

main88650-14140iAE86..LHD..SR..GEN198305-198505

W/BOOST VENTILATOR

main88650-14150iAE86..LHD..GT..(GEN,ME)198308-198505

W/BOOST VENTILATOR

sub88650-14140

main88650-16020iAE86..LHD..SR198505-198704

W/BOOST VENTILATOR

88716FPIPE, COOLER REFRIGERANT LIQUID, F

main88716-12470iAE86..RHD..(ARL,GEN)198305-198311

main88716-12490iAE86..LHD..(GEN,ME)198305-198405

main88716-12880iAE86..RHD..(ARL,GEN)198311-198704

main88726-12070iAE86..LHD..(GEN,ME)198405-198707

8271112200WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-12200

8856912070CLAMP (FOR COOLER RELAY)

main88569-12070

8856912120CLAMP (FOR COOLER RELAY)

main88569-12120

8857812150PAKING, COOLER AIR DUCT

main88578-12150

8857812220PAKING, COOLER AIR DUCT

main88578-12220

8857812280PAKING, COOLER AIR DUCT

main88578-12280

8871824020PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-24020

8889212160BRACKET, COOLER EVAPORATOR MOUNTING

main88892-12160

8889712130VALVE, COOLER MAGNET

main88897-12130

9009901099

main90099-01099

9009914044

main90099-14044

9009914046

main90099-14046

9009914056

main90099-14056

9011906042

main90119-06042

9017906054

main90179-06054

9017906115

main90179-06115

9048025258

main90480-25258

9048026003

main90480-26003

9048026004

main90480-26004

9048036003

main90480-36003

9353055016

main93530-55016

9354055010

main93540-55010

9358016025

main93580-16025

35 parts on this diagram · 2 diagrams in section
