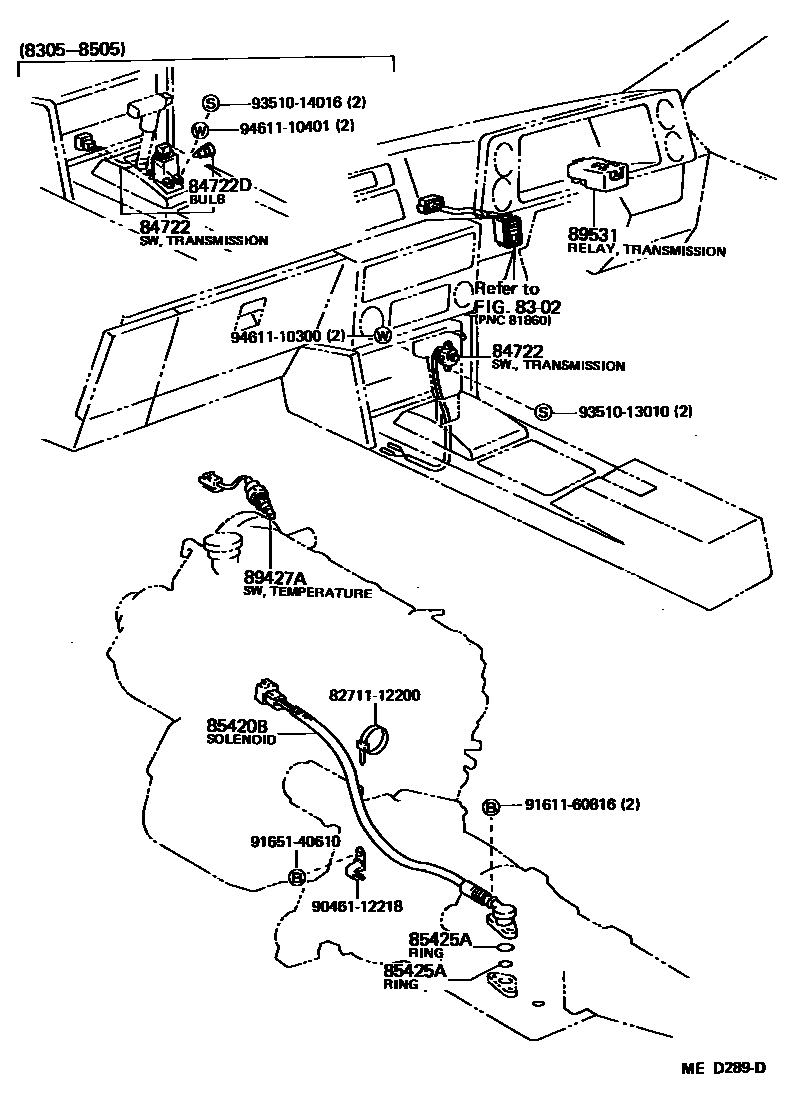

OVERDRIVE & ELECTRONIC CONTROLLED TRANSMISSION

8302

84722SWITCH, TRANSMISSION CONTROL

main84722-14060iAE86..4FC198305-198505

main84722-14070-01iAE86..4FC198505-198704

BLACK,BLACK,TRIM2#

sub84722-14070

84722DBULB, TRANSMISSION CONTROL SWITCH

main90981-11024iAE86..4FC198305-198505

12V 1.4W

85420BSOLENOID ASSY, TRANSMISSION

main85420-12050iAE86..4FC198305-198704

85425ARING, O (FOR OVERDRIVE SOLENOID)

main90301-11001iAE86..4FC198305-198704

ID=11

main90301-23001iAE86..4FC198305-198704

ID=23

89427ASWITCH, TEMPERATURE

main89427-14060iAE86..4FC198305-198505

main89427-16020iAE86..4FC198505-198704

89531RELAY, TRANSMISSION CONTROL

main89531-14050iAE86..4FC198305-198704

8271112200WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-12200

9046112218

main90461-12218

9161160816

main91611-60816

9165140610

main91651-40610

9351013010

main93510-13010

9351014016

main93510-14016

9461110300

main94611-10300

9461110401

main94611-10401

15 parts on this diagram · 1 diagram in section
