BATTERY & BATTERY CABLE

28800BATTERY

main28800-15050i4AG#..AE86..EUR198502-198704

55D23L,55D23L-MF(12V 60AH-20HR)

sub28800-42030

main28800-26040i4A,4AGE..AE86..GEN,ME198305-198707

34B19L,NS40ZAL(12V 33AH-20HR)

sub28800-26050

main28800-26090i4AG#..AE86..LHD..(EUG,FRG)198308-198704

46B24L,NS60L(12V 45AH-20HR)

main28800-31031i4AGE..AE86;4AGEC..AE86..FRG;4A,4AC..AE86..ARL,GEN198305-198707

32C24L,N40L(12V 40AH-20HR)

sub28800-31021

main28800-43070i4AC,4AGE..AE86..EUR198308-198502

55D23L-MF(12V 60AH-20HR)

28800ATERMINAL, BATTERY POSITIVE

main90982-05027i4A,4AGE..AE86..GEN,ME198305-198610

BATTERY=NS40ZAL

sub90982-05028

main90982-05028i4A,4AGE..AE86..GEN,ME198610-198707

BATTERY=NS40ZAL

sub90982-05057

main90982-05029i4A,4AC,4AG#..AE86198305-198610

BATTERY=N40L,55D23L-MF

sub90982-05030

main90982-05030i4A,4AG#..AE86198610-198707

BATTERY=N40L,55D23L-MF

28800BCABLE, BATTERY TO GROUND

main82123-12080i4A,4AGE..AE86..GEN,ME198305-198707

BATTERY=NS40ZAL

main82123-12090i4A,4AC,4AG#..AE86198305-198707

BATTERY=N40L,55D23L-MF

28800CCABLE, BATTERY TO STARTER(FOR BATTERY TO MAIN SWITCH)

main82122-12150i4AGE..AE86198308-198505

STARTER=12V 0.8KW

main82122-12160i4A,4AC..AE86198305-198704

main82122-12230i4AG#..AE86..LHD..EUR198308-198505

STARTER=12V 1.0KW

main82122-12280i4AGE..AE86198505-198707

STARTER=12V 0.8KW

main82122-12290i4AG#..AE86..LHD..EUR198505-198704

STARTER=12V 1.0KW

28800DCOVER, CONNECTOR(FOR BATTERY TERMINAL)

main82821-12190i4A,4AC,4AG#..AE86198305-198707

8271114560WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-14560

9017908146

main90179-08146

9046108509

main90461-08509

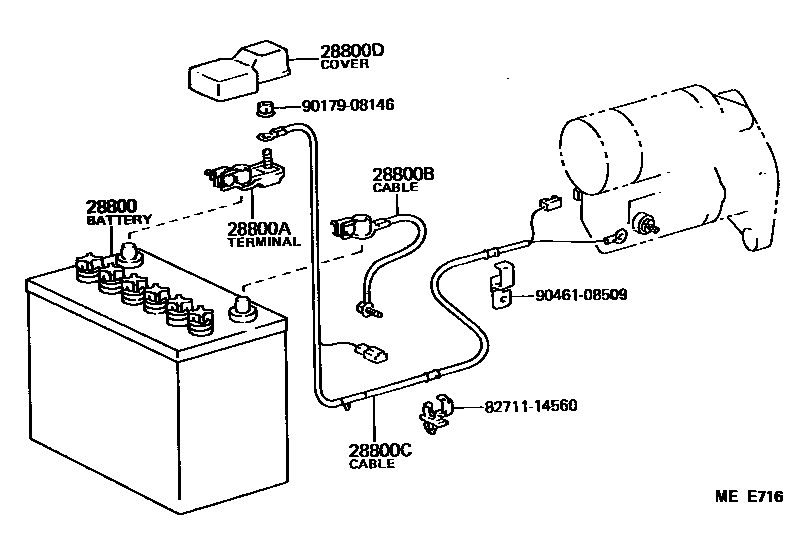

8 parts on this diagram · 1 diagram in section
